Black Residential IP Intercom Door Station

Brand logo
SKU INTIPRDSB
Brand logo

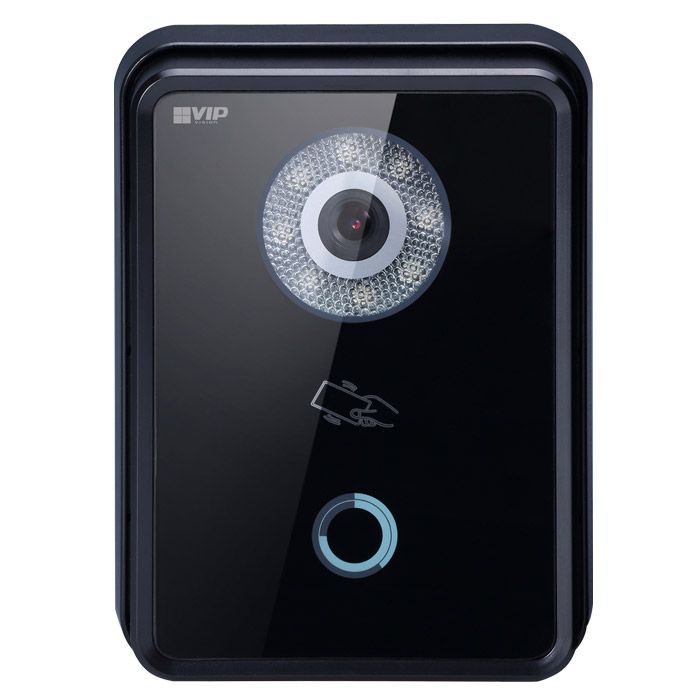

Black Residential IP Intercom Door Station

SKU INTIPRDSB

Available by special order only. Please contact us for lead times.

The INTIPRDSB is a single channel video intercom solution ideal for homes and single-premises buildings. This compact unit features a 1.0 megapixel camera that operates in low light conditions.

The door station is very simple to operate with a single backlit button that controls calling and voice prompting/confirmation for ease of use. The door station can also be interacted with via NFC-capable card. It also features door sensor and door strike integration, remote unlock via smartphone and visitor audio/video messaging functions.

The tempered glass front panel of this door station is water-resistant, however, installation in a well sheltered location is recommended.

Links and Downloads

INTIPR Residential Intercom Series Brochure (PDF) 0.84 MB
Residential IP Intercom - Installation Guide (PDF) 3.88 MB
Intercom Config Tool 21.38 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Audio Input
Omni-directional Microphone
Audio Output
Built-in Loudspeaker
Backlit Interface
Yes
Bidirectional Talk Support
Yes
Card Support
Yes; Built-in IC Card Reader
Construction
Tempered glass and UV stabilised plastic

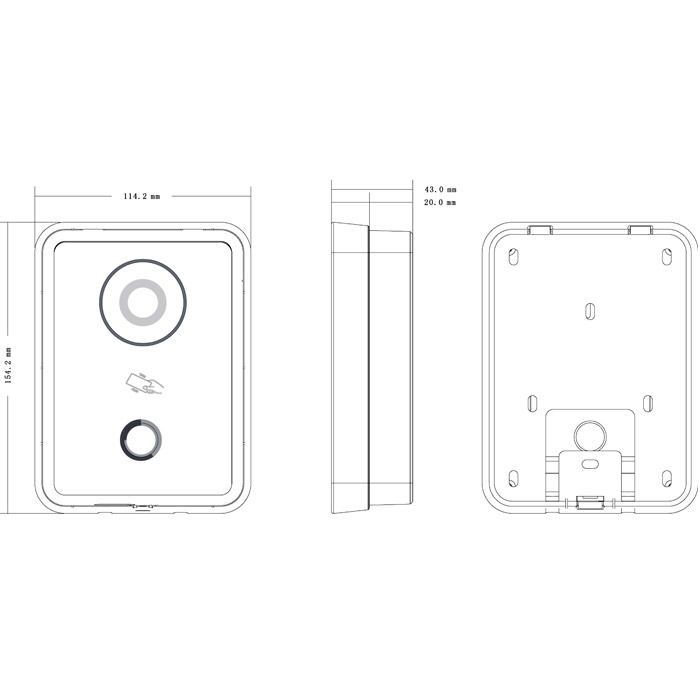

Dimensions
154 x 114 x 43mm
Ethernet
10M/100Mbps Self-adaptive
Image Sensor
1.0 Megapixel CMOS
Ingress Protection
Weather resistant front panel only
Main Processor
Embedded Microprocessor
Memory Capacity
128MB
Network Protocol
TCP/IP, SNMP, MDI/DMI-X Self-adaptive
Operating System
Embedded Linux OS
Operating Temperature
-10 ~ +55°C
Operational Input
Single Digital Button
Power Consumption
Standby <1W / Operation <5W
Power Input
12VDC
Tamper Detection
Yes
Vandal Resistant
N/A
Video Compression
H.264
Weight
0.60kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
175 mm
Height
70 mm
Depth
145 mm
Weight
0.40 kg
