Residential Series Large IP Intercom Monitor (Black)

Brand logo
SKU INTIPMONGBL
Brand logo

Residential Series Large IP Intercom Monitor (Black)

SKU INTIPMONGBL

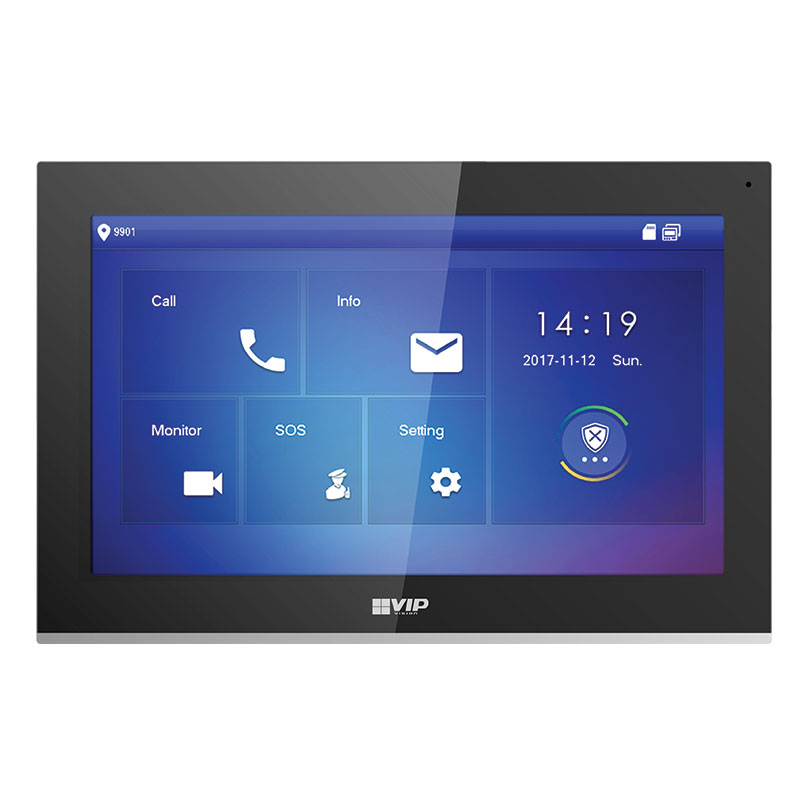

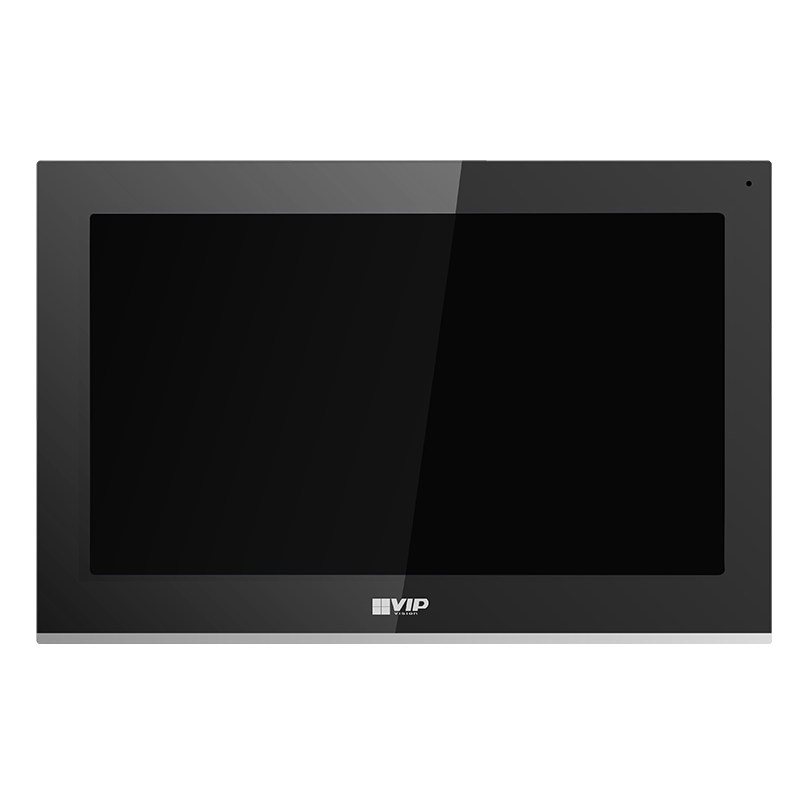

The INTIPMONGBL is a large touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.

Product features:
• 10" TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• Power over Ethernet (12VDC, 802.3af)
• SD card storage (up to 8GB)

Suggested Products

Suggested product image
Residential PoE IP Intercom Door Station
INTIPRDSG
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision INTIPMONGBL Datasheet (PDF) 0.97 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
SIP_Intercom_Firmware_TypeH_20220111 17.09 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor
Video Compression
H.264
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker (1.5W)
Bidirectional Talk
Support
Display Size
10” Colour TFT LCD
Display Resolution
1024 x 600
Alarm Support
Yes; 6 Input channels / 1 output channel
Operational Input
Touchscreen
Internal Capacity
Built-in 8GB SB Card
Ethernet
10M/100Mbps adaptive
Network Protocol
TCP/IP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)

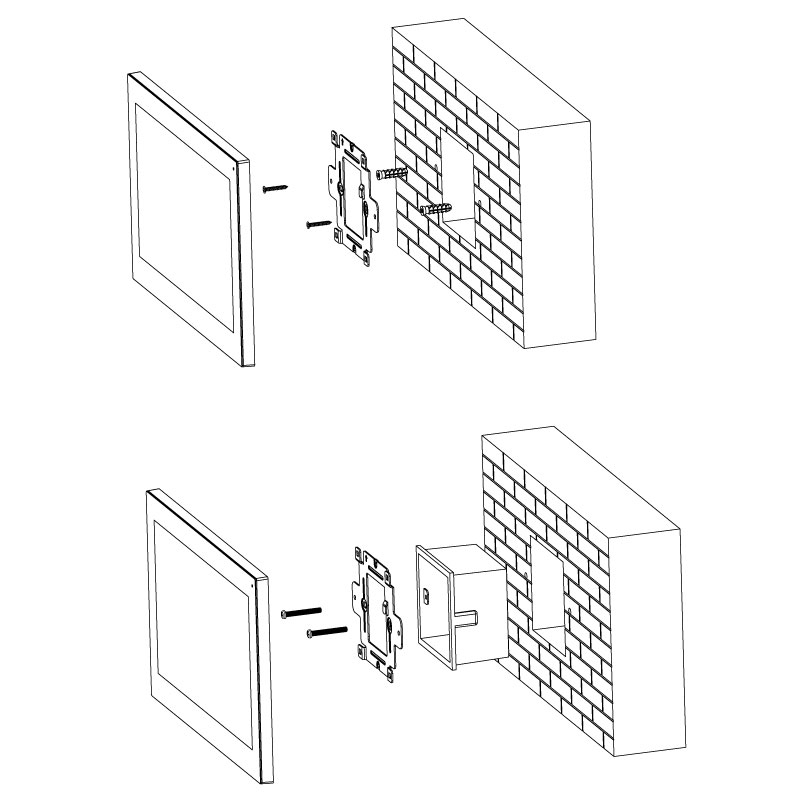

Installation
Surface
Power Input
PoE 12VDC 1A
Power Consumption
<7W

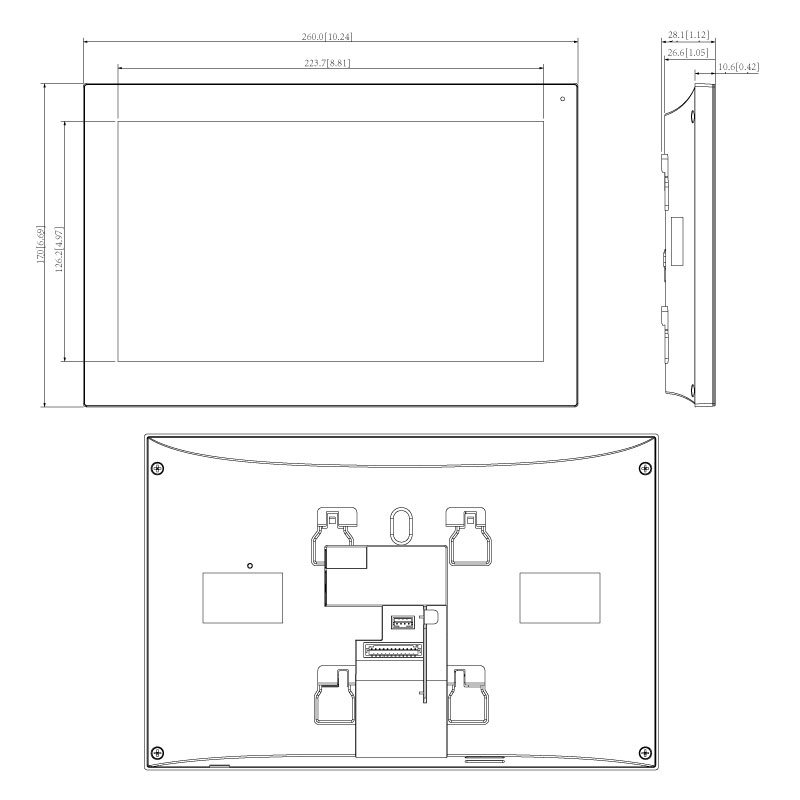

Dimensions
260 x 170 x 28mm
Weight
0.92kg
Other
Series
G Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
168 mm
Depth
168 mm
Weight
0.85 kg
