2-Wire Residential Series IP Intercom Monitor (White)

Brand logo
SKU INTIPMON2W
Brand logo

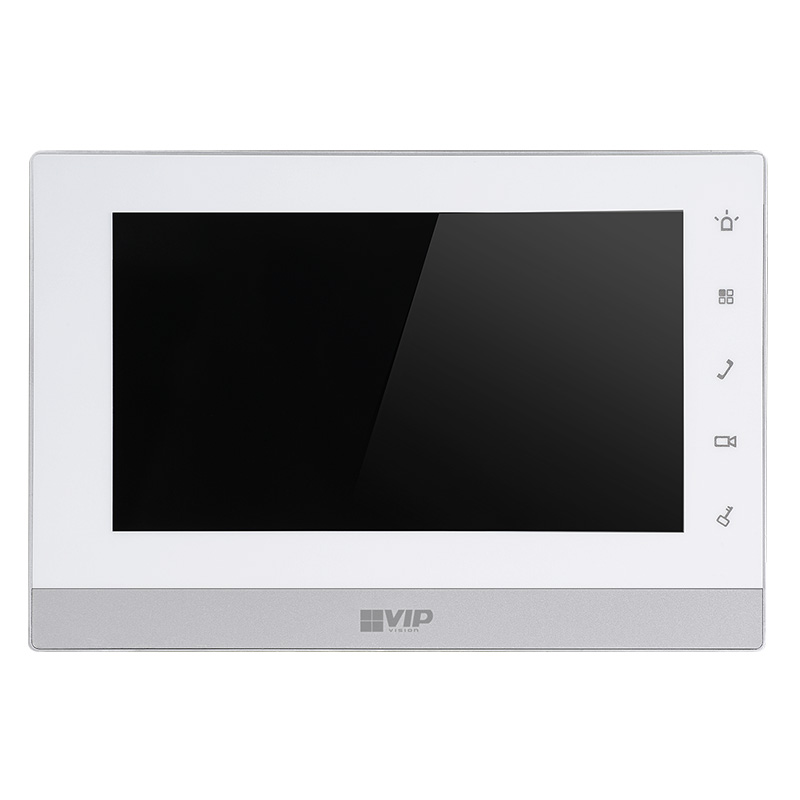

2-Wire Residential Series IP Intercom Monitor (White)

SKU INTIPMON2W

Stock may be limited. Please contact us for availability or for an alternative item.

The INTIPMON2W touchscreen indoor monitor is the perfect upgrade solution to your old intercom. Upgrade and experience a multitude of modern intercom features, all using your existing two-wire infrastructure.

Product features:
• Slim 7" touchscreen indoor intercom monitor
• Connect to door stations and monitors via 2-wire
• MicroSD card slot (up to 32GB) for edge recording
• Dual-way bidirectional talk with built in microphone
• Record and snapshot video calls/messages
• All calls and messages logged
• Remote view, unlock and 2-way talk via iOS & Android devices

*This product requires the INTIPPOE2W. Note it is one device per terminal (6 total).

Suggested Products

Suggested product image
2-Wire Intercom Switch
INTIPPOE2W
Suggested product image
Residential PoE IP Intercom Door Station
INTIPRDSG

Links and Downloads

VIP Vision INTIPMON2W Datasheet (PDF) 0.42 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
SIP_Intercom_Firmware_TypeM_20210721 11.70 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor / Embedded Linux OS
Video Compression
H.264
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker
Bidirectional Talk
Support
Display Size
7" Colour TFT LCD
Display Resolution
SVGA (800 x 480)
Alarm Support
Yes; 6 Input channels / 1 output channel / 1 x RS485
Operational Input
Capacitive Touchscreen / On-unit Soft Keys
Internal Capacity
MicroSD Slot, up to 32GB
Ethernet
10M/100Mbps adaptive
Network Protocol
TCP/IP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface wall mounting bracket & kit
Power Input
Requires INTIPPOE2W
Power Consumption
Standby < 1.5W / Operation < 7W
Dimensions
200mm x 136mm x 22mm
Weight
0.80kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
170 mm
Height
167 mm
Depth
173 mm
Weight
1.00 kg
