Residential 4 Button IP Intercom Door Station

SKU INTIPDDS4W

Residential 4 Button IP Intercom Door Station

SKU INTIPDDS4W

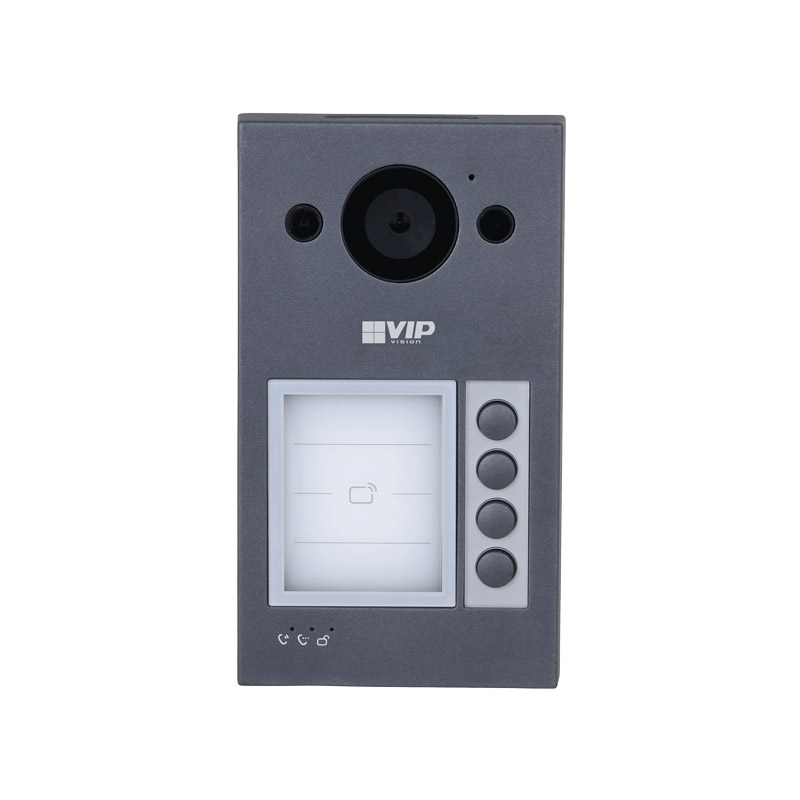

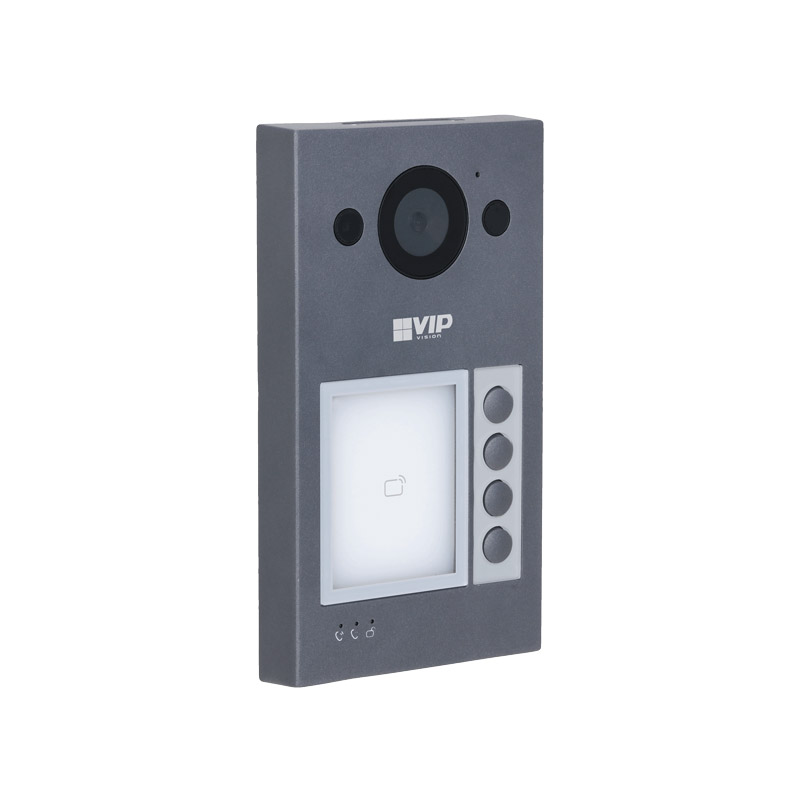

The INTIPDDS4W video intercom door station is ideal for homes and multi-premises buildings such as duplexes. The door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium body.

Product features:
• 1/2.8’’ 2.0MP 1.9mm lens camera with 125° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP65/IK08 aluminium body
• Power over Ethernet (12VDC, 802.3af)

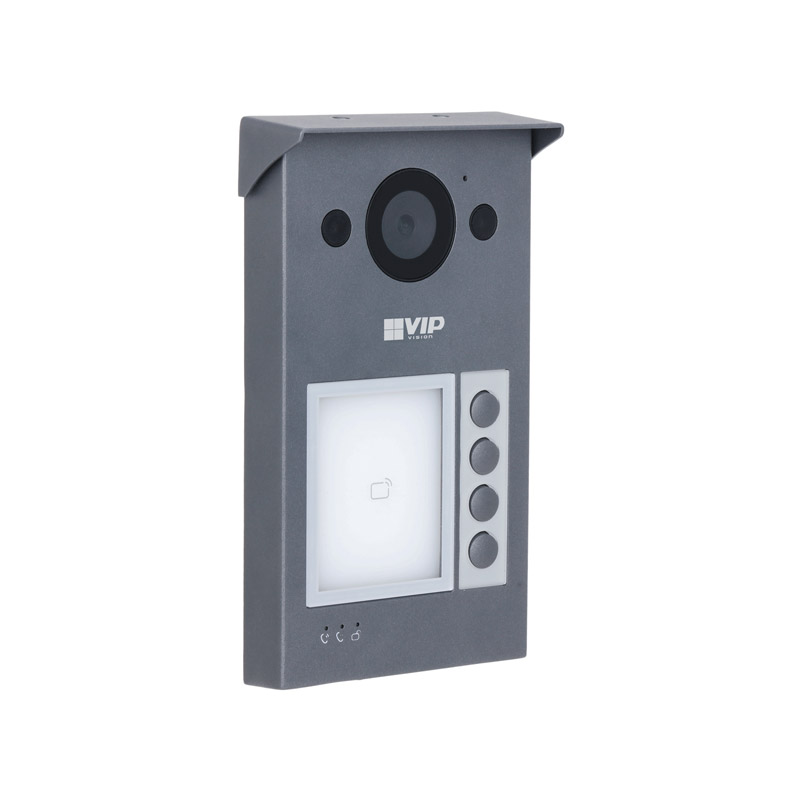

• Includes a rain cover

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather.

Links and Downloads

VIP Vision INTIPDDS4W Datasheet (PDF) 0.51 MB

INTIPDDS4 Firmware Upgrade Guide

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Main Processor

Embedded Microprocessor

Button Illumination

None

Card Support

Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards

Tamper Detection

Yes

Internal MicroSD Slot

256 GB

Max. Additional Door Stations

Max. Indoor Monitors

44 (11 per button)

App Connection

QR Code

Camera

Camera System

1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 125°)

Low-Light Application

Day/Night ICR

Input / Output

1 x relay for door control / 2 x channel alarm interface / 1 x RS485

Audio / 2-Way Talk

Omni-directional Microphone & Embedded Loudspeaker for 2-way talk

Ethernet / Network

10M/100Mbps Self-adaptive / TCP/IP protocol

Environmental

Vandal Resistant

IK08

Ingress Protection

IP65

Construction

Aluminium Alloy

Installation Options

N/A

Power Input

12VDC, PoE (802.3af)

Power Consumption

Standby < 3W / Operation < 6 W

Weight

0.81kg

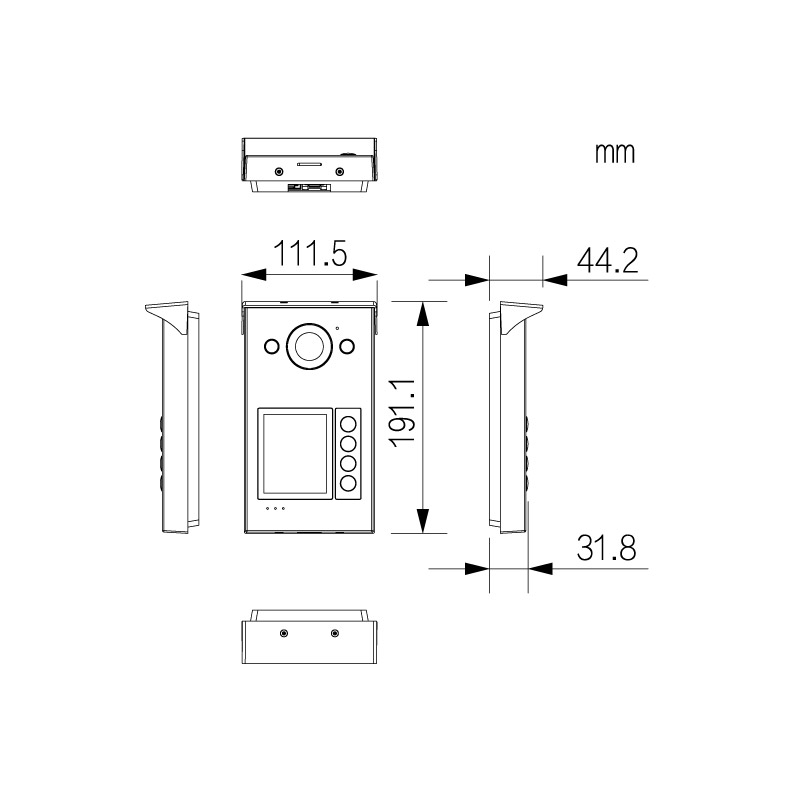

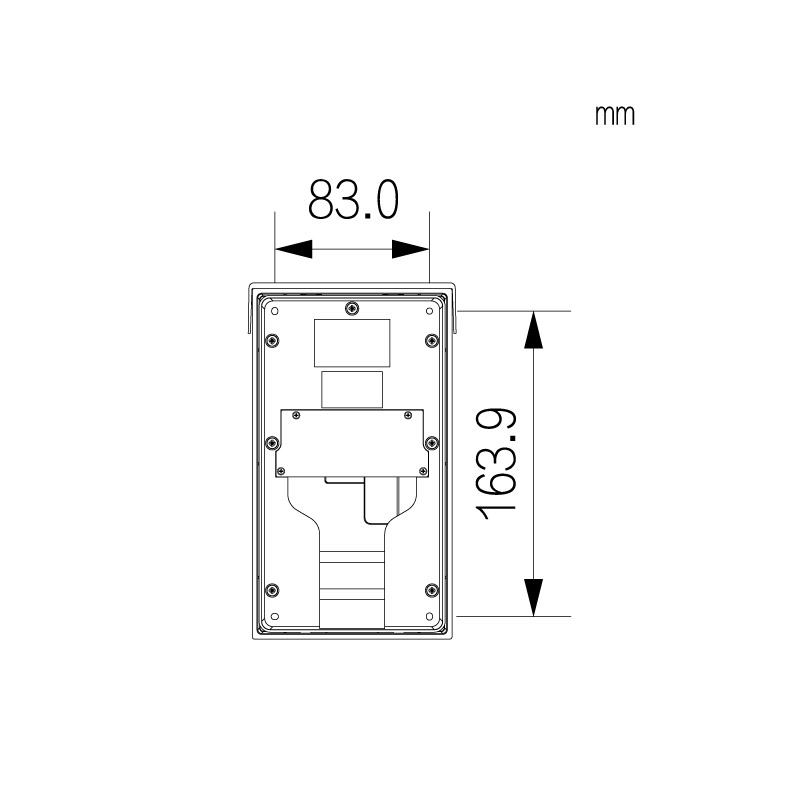

Dimensions

182 x 107 x 30mm
