8 Channel Professional 1080p HDCVI Digital Video Recorder with 4TB HDD

Brand logo
SKU CVR8V6-4T
Brand logo

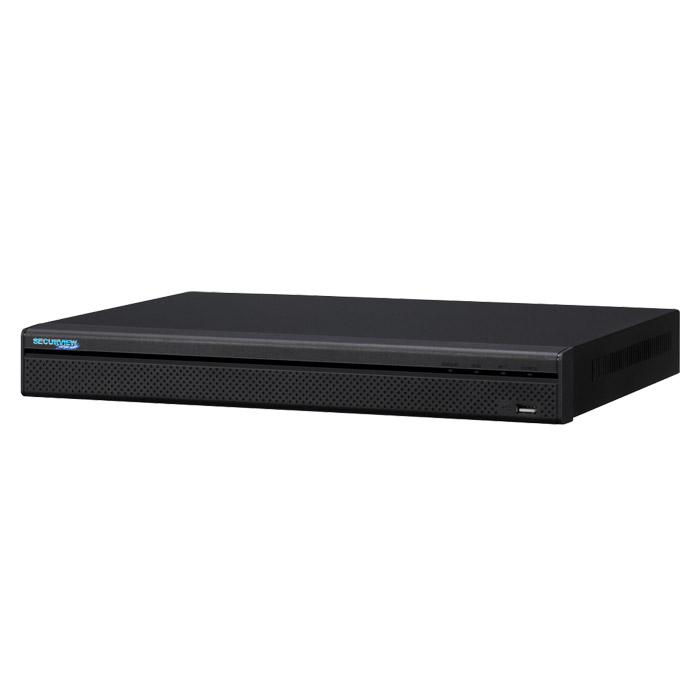

8 Channel Professional 1080p HDCVI Digital Video Recorder with 4TB HDD

SKU CVR8V6-4T

Stock may be limited. Please contact us for availability or for an alternative item.

Securview Professional Series HDCVI DVRs: The most compatible surveillance systems available, with support for HDCVI, HDTVI, AHD, Analogue and IP video inputs, this DVR is the perfect choice for any retrofit, upgrade or CCTV-on-a-budget installation.

The CVR8V6 is a 8 channel HDCVI (high definition composite video interface) DVR capable of 1080p full HD recording over coaxial cable. It features 2 internal SATA ports for up to 20TB of HDD storage and has 1x HDMI and 1x VGA video output. This DVR also features comprehensive remote view capabilities (iOS, Android & Windows Phone) and backup functionality (USB/network).

Product features:
• High Cross Compatibility ~ with HDCVI, HDTVI, IP, Analogue and AHD cameras
• Maximum 48Mbps Incoming Bandwidth (IP video inputs)
• Records 1080p full HD resolution up to 15fps
• Up to 300m transmission distance (1080p)
• 2x SATA ports with up to 20TB of HDD capacity
• Configure remote view in seconds via QR code
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view for iOS, Android & Windows Phone

Links and Downloads

Smart PSS V2.0 (Mac) 90.05 MB
HDCVI User Manual 23.02 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CVR_Firmware_TypeX_20171229 14.38 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input
8 channels
Alarm Output
3 channels
Audio Input
4 channel RCA
Audio Output
1 channel RCA
Auxiliary Inputs
RS485 (for PTZ)
Backup Modes
USB Device / Network
Bit Rate
1~6144Kbps per channel
Camera Configuration (Coaxial)
8 channels up to 1080p/15fps (HDCVI), 960H/25fps (analogue)
Camera Configuration (IP)
12 channels up to 5.0MP (replaces up to 8 x BNC inputs)
Dimensions
375mm x 285mm x 55mm (1U)
Display Resolution
1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Display Split
1 / 4 / 8 / 9 / 16
Ethernet
RJ-45 port (10/100M)
Internal HDD
2 SATA ports, up to 20TB
Main Processor
Embedded processor
Max. User Access
128 users
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, P2P, IP Filter
Operating Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Operating System
Embedded Linux OS
OSD Menu
Camera title, time, video loss, camera lock, motion detection & recording
Power Consumption
<15W (without HDD)
Power Supply
12VDC/4A
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD) / Alarm / Stop
Record Rate
Main: 1080p (1~15fps), 720p (1~25/30fps) / Sub: D1 (1~25/30fps)
Record Resolution
1080p (1920 x 1080) / 720p (1280 x 720) to QCIF (176 x 120)
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Search Modes
Time/Date; Motion detection; Exact search (to the second)
Sync Playback
1 / 4 / 9
Trigger Events
Recording; PTZ; predefined tour; push video notification; email notification; FTP upload; internal buzzer; and screen tip overlay
Two-way Talk
Reuse channel 1 audio input/output
USB Interface
2 ports USB2.0
Video Detection
Motion detection (Zones: 396 [22 × 18]) / Video loss / Camera blank
Video Input
8 channel BNC
Video Output
1 HDMI / 1 VGA
Video/Audio Compression
H.264 / H.264+
Weight
2.35kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
434 mm
Height
367 mm
Depth
137 mm
Weight
3.20 kg
