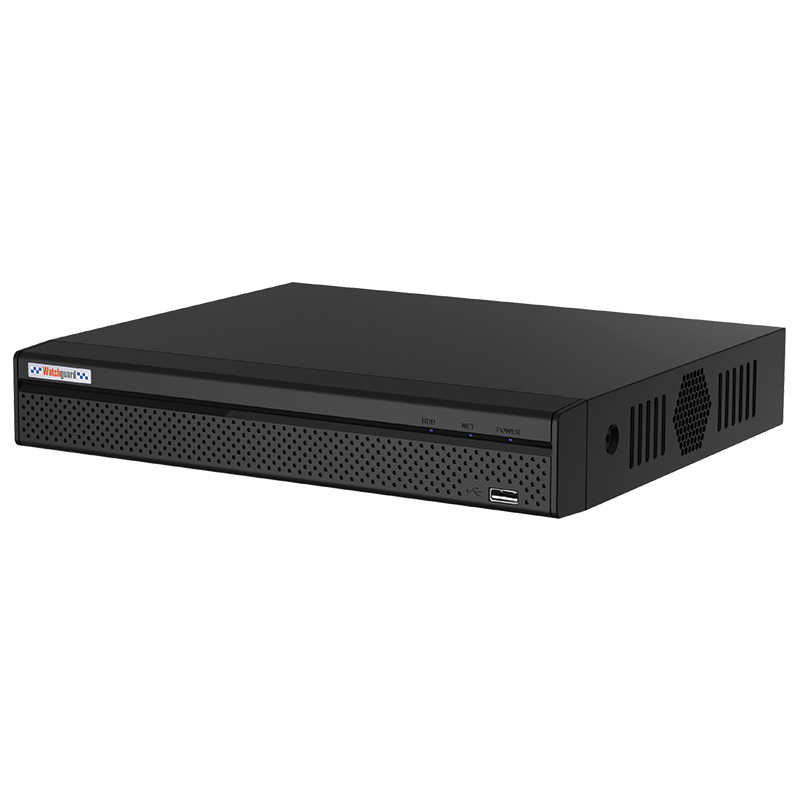

Entry Series 8 Channel 1080p HDCVI Digital Video Recorder

Brand logo
SKU CVR8ENT2
Brand logo

Entry Series 8 Channel 1080p HDCVI Digital Video Recorder

SKU CVR8ENT2

Stock may be limited. Please contact us for availability or for an alternative item.

The CVR8ENT2 feature extensive compatibility for Full HD over coax with support for HDCVI, HDTVI, AHD, Analogue and IP video inputs, making it perfect for both new and retrofit CCTV installations.

Product features:
• Record up to Full HD 1080p (1920 x 1080) at 15fps
• H.265+ encoding for efficient storage & streaming
• 1 x SATA port for up to 10TB total HDD capacity
• Add 4 additional IP channels up to 6.0MP resolution
• Configure remote view in seconds via QR code
• 1 x HDMI & 1 x VGA simultaneous video output
• Backup via external USB device or local network
• Remote view for iOS & Android devices
• Quiet smart fan auto adjusts with CPU temperature

Links and Downloads

Watchguard CVRENT2 Datasheet (PDF) 0.69 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
8 channel BNC
Audio In/Out
1 channel input / 1 channel output
Two-way Talk
Reuse channel 1 audio input/output
Internal HDD
1 SATA port, up to 10TB
USB Interface
2 ports: Front USB2.0
Auxiliary Inputs
1 x RS485 port
Power Supply
12VDC/2A
Power Consumption
<10W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH

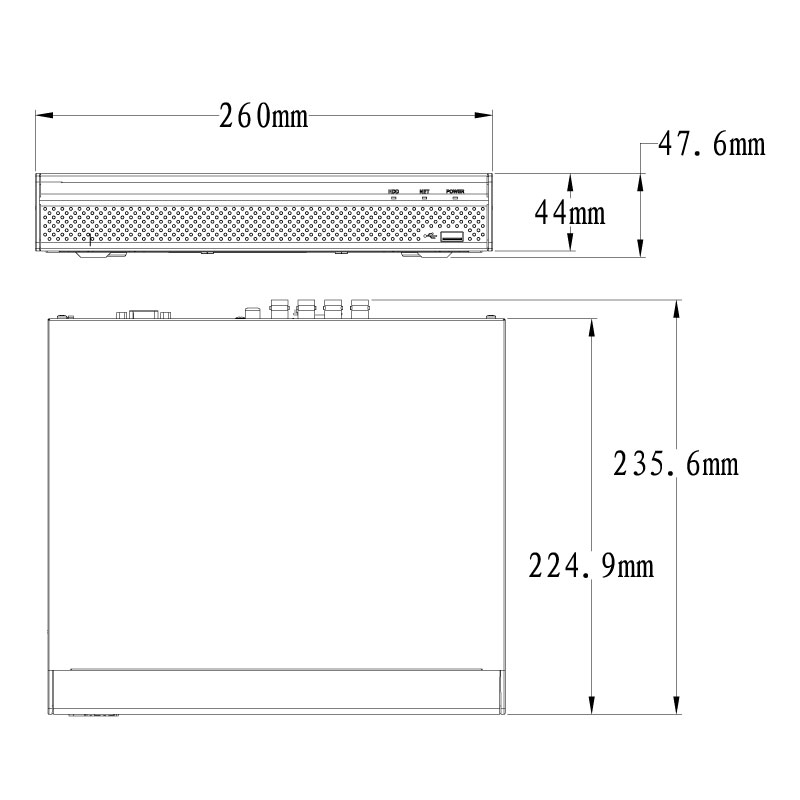

Dimensions
260mm x 236mm x 48mm (1U)
Rackmountable
No
Rackmount Unit
Compact 1RU
Weight
1kg (without HDD)
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
8 channels
IP Input Support
12 channels (8 substitute, 4 additional)
IP Input Max. Resolution
6.0MP
IP Input Max. Bandwidth
48Mbps
Display
Video Output
1 x HDMI, 1 x VGA
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720
Display Split
1 / 4 / 8 / 9
OSD
Camera Title, Time, Video Loss, Camera Lock, Motion Detection & Recording
Recording
Maximum Resolution
Configurable from 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1~15fps), 720p/960H/D1/CIF (1~25fps)
Frame Rate (Sub)
D1/CIF (1~15fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
32~6144Kb/s per channel
Record Modes
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
N/A
Trigger Events
Recording; PTZ; Tour; Alarm Out; Push Video Notification; Email notification; FTP; Snapshot; Internal Buzzer; and Screen Tip Overlay
Video Detection
MD zones: 396 (22 × 18) / Video loss / Tampering & Diagnosis
Playback Sync
1 / 4 / 9
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second)
Intelligent Functions
N/A
Backup Modes
USB Device / Network
Network
Ethernet
1 RJ-45 port (100M)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad) / Android devices
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
90 mm
Depth
310 mm
Weight
1.50 kg
