Monitored Mortise Electric Door Strike

SKU ACLOC102

Monitored Mortise Electric Door Strike

SKU ACLOC102

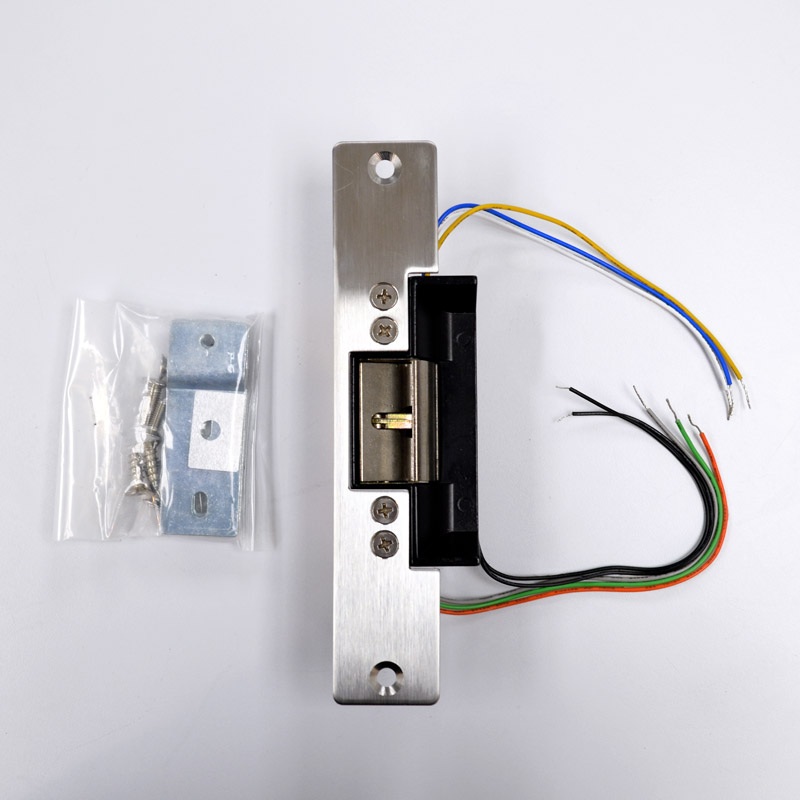

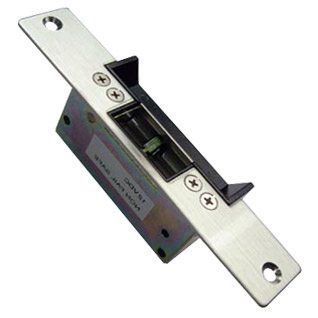

The Watchguard ACLOC102 is a strong, mortise mount, electric door strike for use with access control systems. It features a durable stainless steel faceplate, door-latch and lock sensors for remote monitoring of lock status, and comes standard with mounting screws and voltage spike suppressing varistors. The ACLOC102 is easily convertible between fail-safe and fail-secure modes, as per site requirements (default: fail-secure).

*For indoor use only.

Links and Downloads

VIP Vision Access Control Accessories Datasheet (PDF) 0.50 MB

ACLOC102 User Manual (PDF) 0.22 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Type

Mortise Mount

Door Latch

12.7mm

Keeper Depth

12.7 mm

Construction

Stainless steel

Lock Configuration

Fail secure / Fail Safe

Lock Status Sensor

Yes

Environmental

Power input

12VDC at 260mA

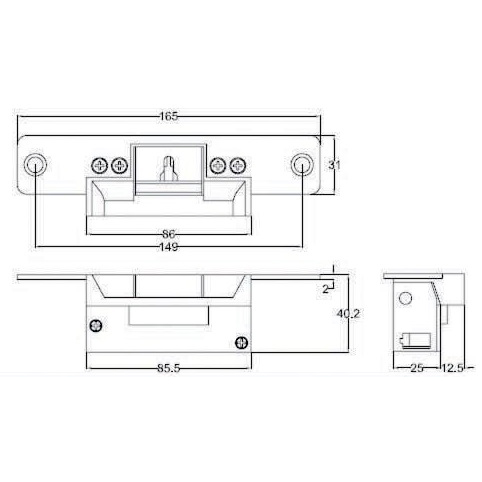

Faceplate Dimensions

160 x 31 x 2mm

Overall Dimensions

165 x 31 x 40.2mm

Warranty (Years)

3

Shipping Weight and Dimensions

Includes product packaging

Width

58 mm

Height

55 mm

Depth

175 mm

Weight

0.51 kg
