Mortise Electric Door Strike

Brand logo
SKU ACLOC100
Brand logo

Mortise Electric Door Strike

SKU ACLOC100

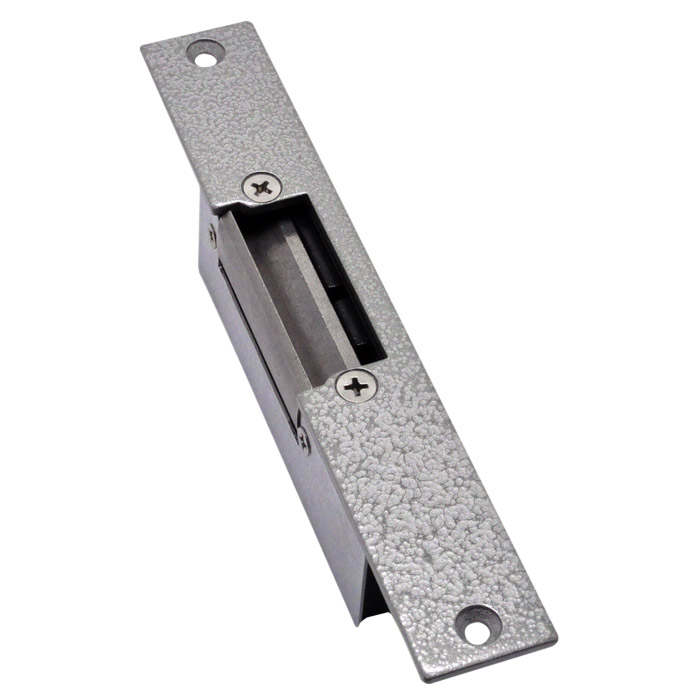

The Watchguard ACLOC100 is a strong, mortise mount, electric door strike for use with access control systems. It features a durable steel faceplate and is configured in fail-secure mode in the event of power loss.

*For indoor use only.

Links and Downloads

VIP Vision Access Control Accessories Datasheet (PDF) 0.50 MB
ACLOC100 User Manual (PDF) 0.43 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Mortise Mount
Door Latch
9.5mm
Keeper Depth
9.6 mm
Construction
Steel
Lock Configuration
Fail secure
Lock Status Sensor
No
Environmental
Power input
12VDC at 400mA

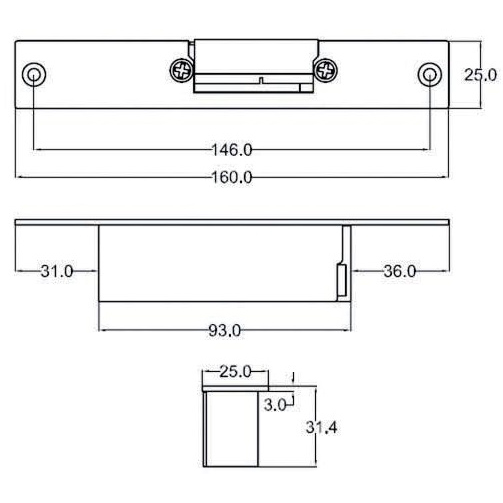

Faceplate Dimensions
160 x 25 x 3mm
Overall Dimensions
160 x 25 x 30.8mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
40 mm
Height
170 mm
Depth
30 mm
Weight
0.28 kg
