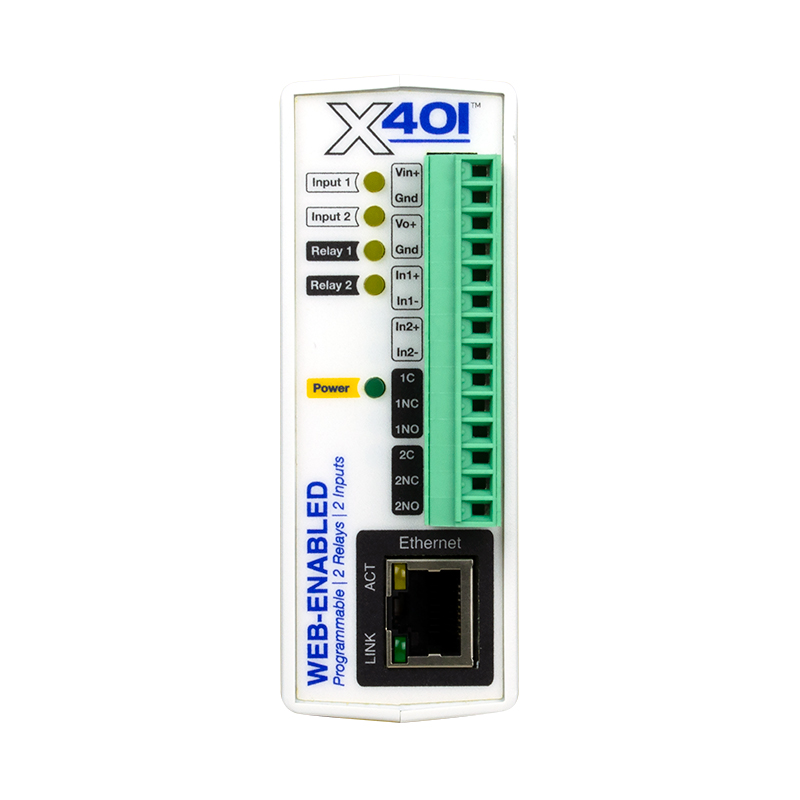

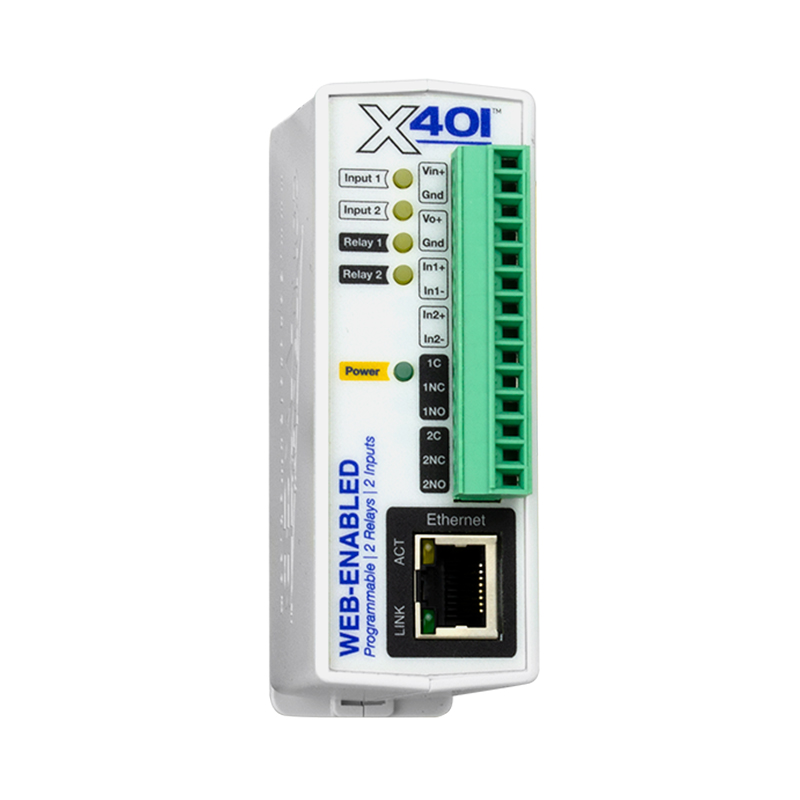

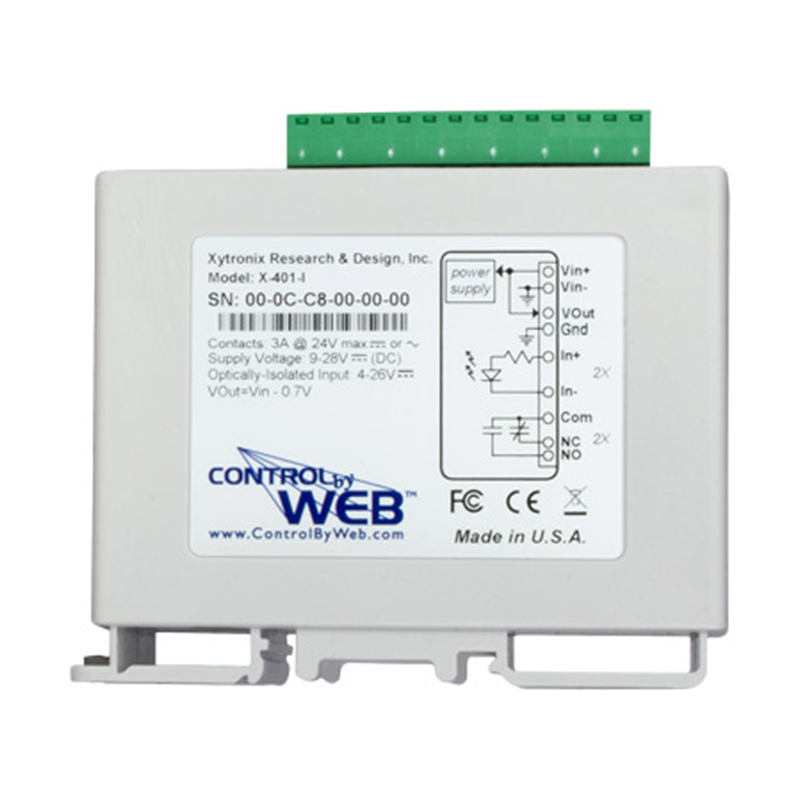

X-401-E: Dual Relay & Input Module

The X-401-E is a web-enabled mini Ethernet I/O Module, with 3A relays and optically-isolated digital inputs. Schedule and control devices such as bells, gates, lights & magnetic locks or automatically reboot devices such as IP cameras & computers. The X-401-E has a built-in web server so that it can be set up, controlled & monitored using a standard web browser or the CBW smartphone app.

Product Features:
• 2 Electro-mechanical SPDT (Form C) relays (3A 28VAC, 24VDC)
• 2 optically-isolated digital inputs (4~26VDC)
• Power Supply: PoE or 9~28VDC
• Peer to peer communications between X-400 series modules, provides seamless I/O sharing
• User permissions, admin, manager and user
• Programmable tasks for scheduled events or conditional logic
• Send email alerts based on user defined conditions
• Real time clock with NTP server synchronization & automatic daylight savings/leap year adjustments
• Customisable web based control page
• BASIC script support for advanced flexibility
• Configurable logging and graphing (logged data)
• Easy installation, with removable 14-terminal connector
• DIN rail / wall mountable
• Dimensions: 35.7mm x 98.5mm x 78mm
