Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna

Brand logo
SKU WT5-UPBAC52
Brand logo

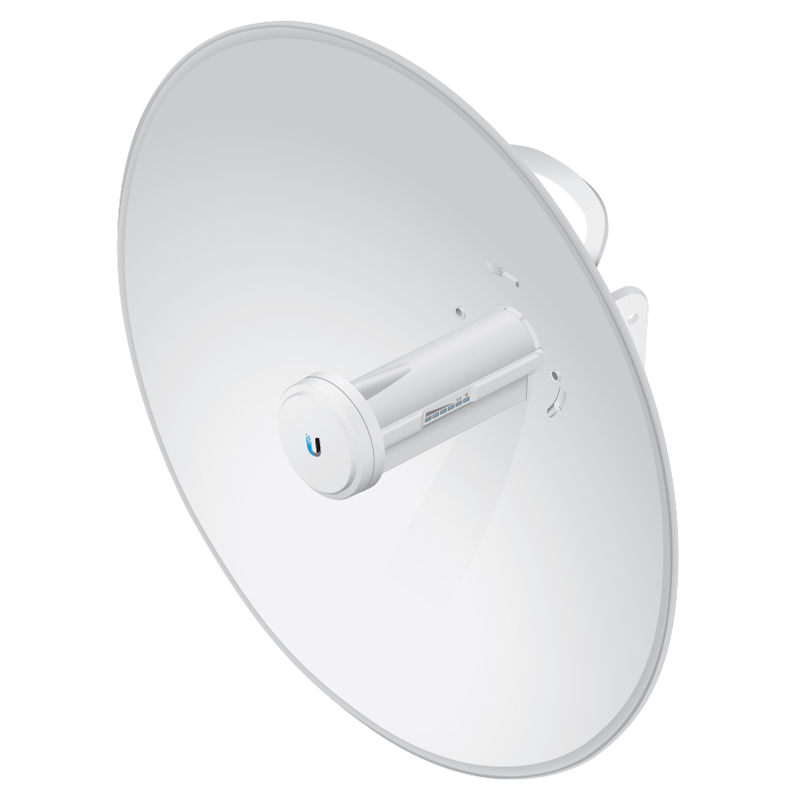

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna

SKU WT5-UPBAC52

Incorporating a dish reflector design with proprietary technology, the WT5-UPBAC52 is ideal for CPE deployments requiring maximum performance. Its excellent beam directivity provides excellent performance in high-noise environments.

Product features:
• Built-in mechanical ±20° up/down tilt
• Easy removal with a detachable antenna feed
• Extensive transmission range, exceeding 25km in ideal conditions
• Breakthrough throughput supports up to 450+ Mbps
• Operates with a gain measuring 25dBi
• Frequency range reaching 5Ghz
• Galvanised steel dish reflector for corrosion resistance
• Protective for further weather protection
• Configure via smartphone over WiFi

Suggested Products

Suggested product image
Ethernet Surge Protector
VSETHSP

Links and Downloads

WT5-UPBAC52 Datasheet (PDF) 1.53 MB
WT5-UPBAC52 Quick Start Guide (PDF) 2.40 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Channel Sizes
PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Dimensions
420 x 420 x 230mm
Enclosure
Outdoor UV Stabilized Plastic
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Gain
25 dBi
LED
Power, Ethernet, Signal strength
Management Radio
2412-2472Mhz
Max. Power Consumption
8.5W
Max. VSWR
1.5:1
Memory
64MB
Mounting
Pole-Mount (Kit Included)
Networking Interface
(1) 10/100/1000 Ethernet Port
Operating Frequency
Worldwide: 5150 - 5875 MHz
Operating Humidity
5 to 95% Noncondensing
Operating Temperature
-40 to 70° C
Polarization
Dual Linear
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Processor Specs
MIPS 74Kc
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Supported Voltage Range
20 to 26VDC
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4
Vibration Test
IEC 68-2-6
Weight
2.22kg
Wind Loading
380 N @ 200 km/h
Wind Survivability
200 km/h
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Wireless Approvals
FCC, IC, CE
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
420 mm
Height
230 mm
Depth
420 mm
Weight
2.22 kg
