Ubiquiti 5Ghz UniFi Wireless Access Point

Brand logo
SKU WT5-UAPACMPRO
Brand logo

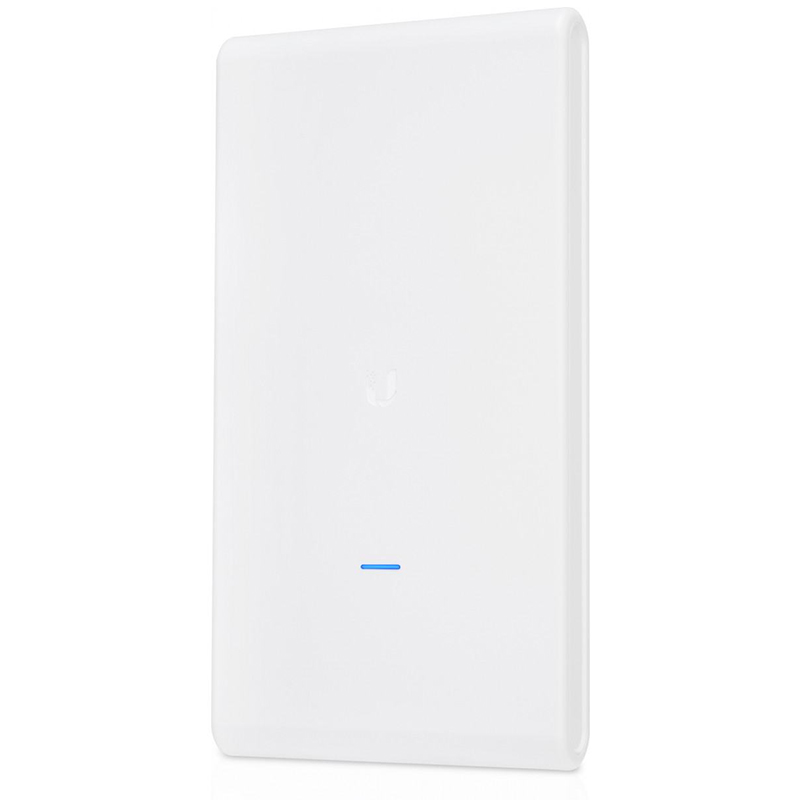

Ubiquiti 5Ghz UniFi Wireless Access Point

SKU WT5-UAPACMPRO

Available by special order only. Please contact us for lead times.

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high density client deployments requiring low latency and high uptime performance.

Product features:
• Powerful coverage with built-in dual-band omnidirectional antennas for extensive coverage outdoors
• Flexible installation with wall and pole mounting (accessories included)

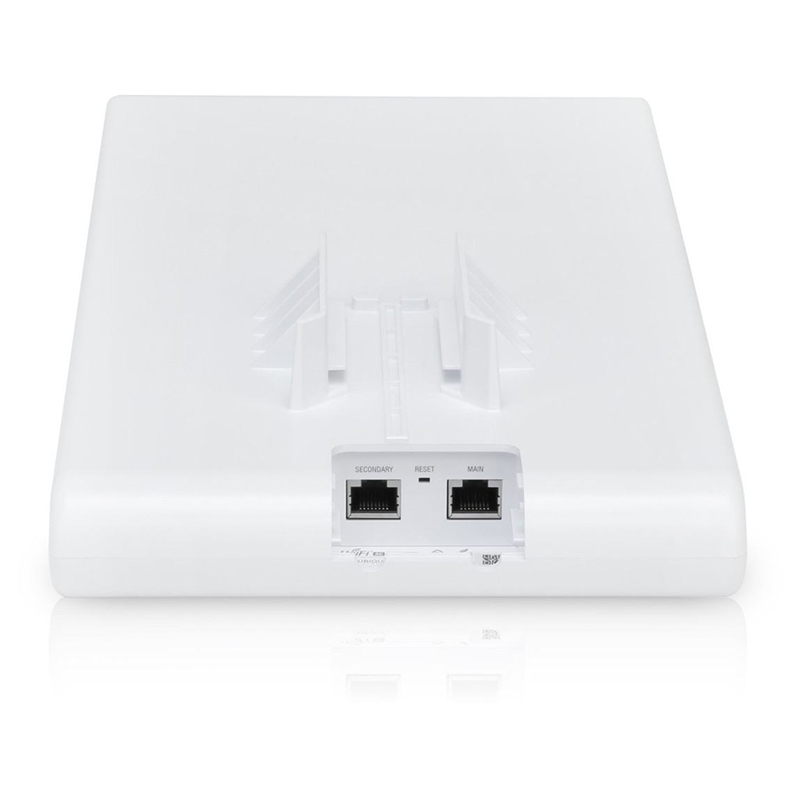

• Dual Gigabit Ethernet Ports - Primary port for data and PoE; Secondary port for bridging
• Multiple power options via 802.3af switch, UniFi PoE Switch or included Gigabit PoE adapter
• Weather-resistant form factor designed to withstand the elements, ideal for outdoors installation

Links and Downloads

UniFi Mesh Access Point Datasheet (PDF) 7.65 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Dimensions
343.2 x 181.2 x 60.2mm
Weight
633g
Networking Interface
2 x 10/100/1000 Ethernet Ports
Buttons
Reset
Power Method
802.3af PoE (Supported Voltage Range: 44 to 57VDC)
Power Supply
48V, 0.5A PoE Gigabit Adapter
Power Save
Supported
Maximum Power Consumption
9W
Maximum TX Power
2.4GHz/5Ghz: 22dBm
Antennas
3 x Internal Dual-Band Antennas 8 dBi
Wi-Fi Standards
802.11 a/b/g/n/r/k/v/ac
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID
Up to 8 per Radio
Mounting
Wall/Pole (Pole Kit Included)
Operating Temperature
-40 ~ 70°C
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
250+
Supported Data Rates (Mbps)
802.11ac
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
360 mm
Height
80 mm
Depth
200 mm
Weight
0.80 kg
