Ubiquiti Dual Band WiFi 6 Long Range (PoE) Access Point

Brand logo
SKU WT5-U6LR
Brand logo

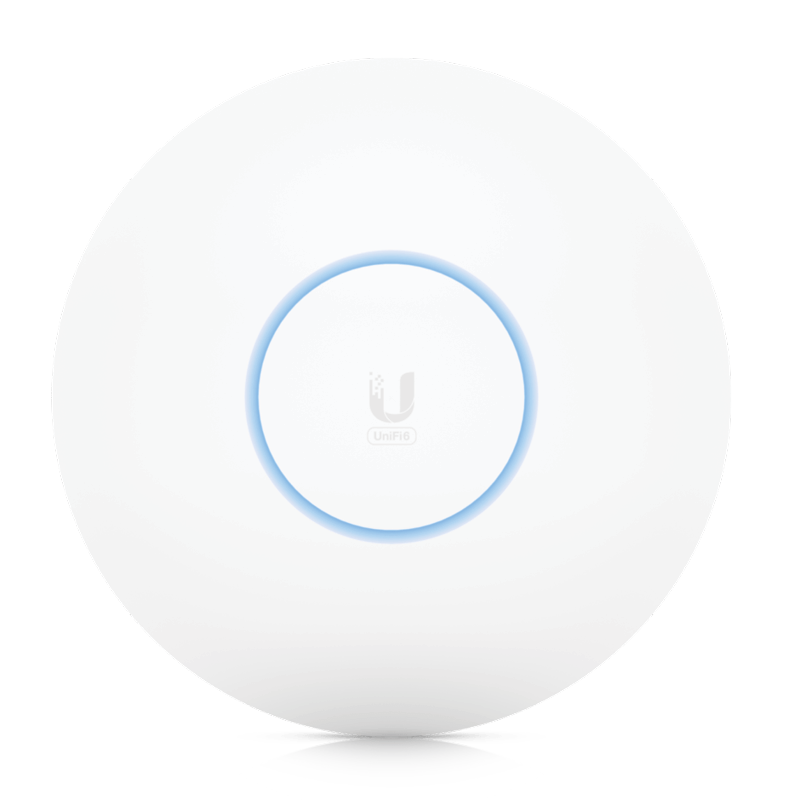

Ubiquiti Dual Band WiFi 6 Long Range (PoE) Access Point

SKU WT5-U6LR

The WT5-U6LR, Ubiquiti U6 Long Range, is a compact, long range, high speed access point that utilises Wi-Fi 6 technology to provide strong and expansive wireless coverage to enterprise networking environments, up to 185m².

The WT5-U6LR is an ideal wireless access point solution for small to large sized commercial applications.

• 802.11a/b/g/n/ac/ax, WiFi 4/5/6 supported WiFi standards
• 4x4 MIMO 2.4GHz and 4x4 MIMO 5GHz 26dBm antennas
• High throughput rates up to 600Mbps (2.4GHz) and 2400Mbps (5GHz)
• Supports over 350 connected devices; concurrent clients
• Gigabit Ethernet (1000M) RJ45 uplink/networking interface; management also via bluetooth
• PoE+ powered; 44~57V DC supported voltage range (PoE+ switch or injector sold separately)
• UniFi 6.0.34 and later for management and AP configuration (QoS, VLAN)
• Polycarbonate construction with stainless steel mount plate
• Overall dimensions Ø220mm x 48mm, 930g total weight
• IP54 rated weather-resistant housing

Suggested Products

Suggested product image
30W Power Over Ethernet Injector
VSPOE-IN30
Suggested product image
8-port Unmanaged Gigabit Hi-PoE Ethernet Switch
VSPOE-SWB8G

Links and Downloads

WT5-U6LR Datasheet (PDF) 0.36 MB
WT5-U6LR User Manual.pdf 7.83 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Dimensions
Ø220mm x 48mm
Weight
800g, 930g with mount
Enclosure
Polycarbonate Enclosure, Stainless Steel Mount Plate
LED Indicators
White/Blue LED
Buttons
Factory Reset Button
Mounting Components
Wall, Ceiling Mount (included)
Weather Resistance
IP54
Operating Temperature
-30 ~ 60°C
Operating Humidity
5 ~ 95% (non-condensing)
Certifications
CE, FCC, IC
Interface
Network
1 x GbE RJ45 port
Management
Ethernet, Bluetooth
Power
Power Method
PoE+, Passive PoE, 48V
Power Supply
PoE Switch, 48V 0.5A PoE Adapter (not included)
Supported Voltage Range
44 ~ 57VDC
Max. Power Consumption
18.5W
Performance
Max. Coverage
185m²
Max. Transmission Power
26dBm (2.4GHz, 5GHz)
MIMO Configuration
4 x 4 (2.4GHz, 5GHz)
Throughput Rate
600Mbps (2.4GHz), 2400Mbps (5GHz)
Antenna Gain
4dBi (2.4GHz), 5.5dBi (5GHz)
Software
WiFi Standards
802.11a/b/g/n/ac/ax
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per Radio
VLAN
802.1Q
Advanced QoS
Per-user Rate Limiting
Guest Traffic Isolation
Supported
Zero-wait DFS
N/A
Concurrent Clients
350+
Management Application
UniFi Network Version 6.0.34 and later
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
90 mm
Height
260 mm
Depth
260 mm
Weight
1.70 kg
