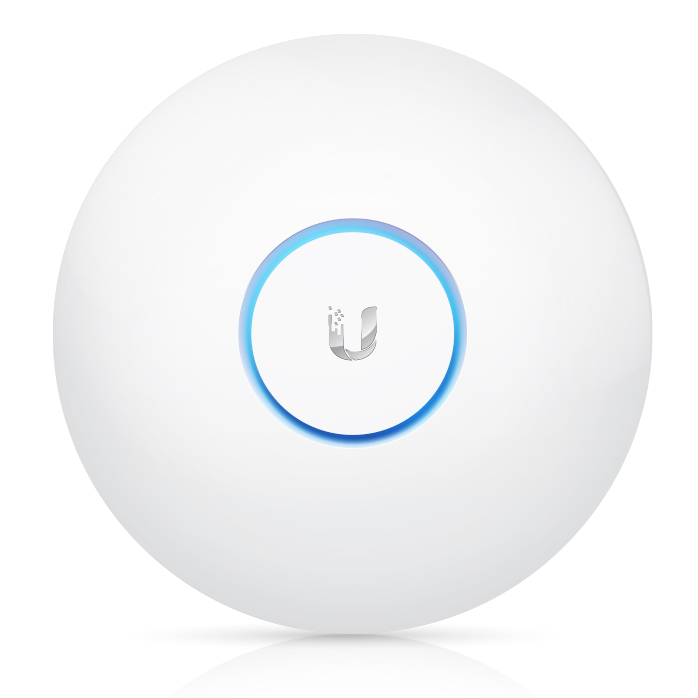

Ubiquiti Dual Band WiFi Long Range (PoE) Access Point

Brand logo
SKU WT2-UAPACLR
Brand logo

Ubiquiti Dual Band WiFi Long Range (PoE) Access Point

SKU WT2-UAPACLR

Stock may be limited. Please contact us for availability or for an alternative item.

The Ubiquiti UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range (183m), symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

At the front-center of the device is a status LED ring which can provide the administrator with location tracking and alerts for each device. After the UniFi server is installed on a Mac or PC, the UniFi controller can be accessed through any device using a web browser. The UniFi controller allows the operator to instantly provision thousands of UniFi APs, map out networks, quickly manage system traffic, and further provision individual Unifi AP devices.

Links and Downloads

WT2-UAPACLR Product Brochure (PDF) 6.73 MB
WT2-UAPACLR Quick Start Guide (PDF) 3.72 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Antennas
Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
BSSID
Up to Four per Radio
Dimensions
175.7 x 175.7 x 43.2 mm
Maximum Power Consumption
6.5W
Maximum TX Power(2.4 GHz)
24 dBm
Mounting
Wall/Ceiling (Kits Included)
Networking Interface
10/100/1000 Ethernet Port
Operating Humidity
5 to 95% Noncondensing
Operating Temperature
-10 to 70° C
Power Method
Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Only the single-pack of the UAP-AC-LR includes a PoE adapter.)
Weight
315 g
Wi-Fi Standards
802.11 a/b/g/n/ac
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
225 mm
Height
100 mm
Depth
210 mm
Weight
1.00 kg
