IP & SMS Alarm Communicator

Brand logo
SKU WGSMSC
Brand logo

IP & SMS Alarm Communicator

SKU WGSMSC

Stock may be limited. Please contact us for availability or for an alternative item.

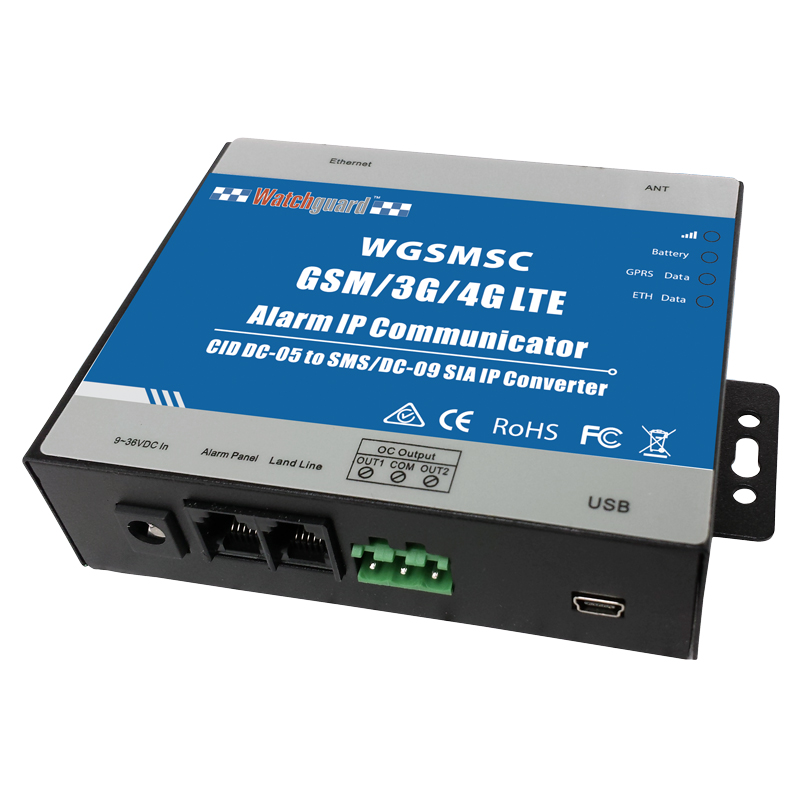

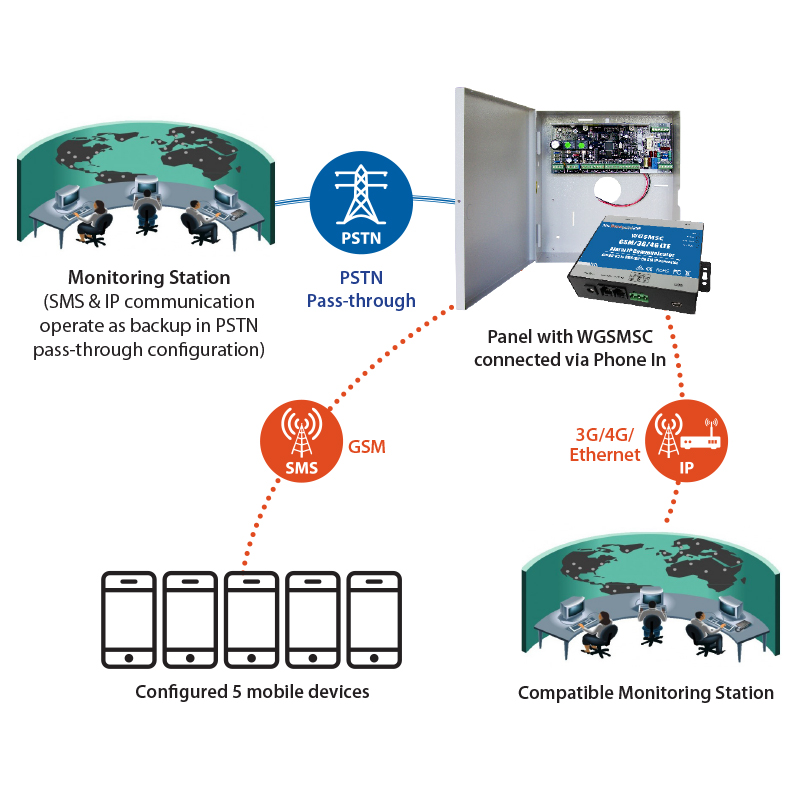

The WGSMSC is an IP and SMS alarm communicator with battery backup. It is compatible with most contact ID alarm panels. The communicator is able to send contact ID alarm events via SMS over the mobile network to up to 5 mobile devices. It can simultaneously communicate via IP (3G, 4G, Ethernet) to a compatible monitoring centre. Separately, the WGSMSC also supports PSTN pass-through.

Product features:
• Easy to install plug-and-play design, housed in sturdy metal case
• Compatible for integration with most contact ID alarm panels
• Notify up to 5 users via SMS for alarm events, supervision, GPRS fail, power loss and more*
• Configurable via PC-USB and SMS commands
• Rechargeable Li-ion backup battery with SMS alerts on power loss
• Supports 3 communicator modes: GPRS, SMS and PSTN
• Supports reporting to 2 monitoring centre addresses
* Requires standard SIM card, not included

Includes:
1 x WGSMSC Alarm Communicator
1 x USB cable for configuration via PC
1 x 4G antenna
1 x AC adapter
1 x CD-ROM with configuration software

Links and Downloads

Watchguard WGSMSC Manual v1.4.pdf 1.49 MB
Watchguard WGSMSC Quick Start Guide V1.1.pdf 1.17 MB
WGSMSC Programming Software 0.93 MB
WGSMSC Drivers for Windows 13.66 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Antenna
50 Ω SMA Antenna interface
Backup Battery
3.7V/900mAH Li-ion, rechargeable
Configuration
USB port / SMS commands
Dimensions
105 x 88 x 30mm
GPRS Protocol
SIA DC-09-2007 / SIA DC-09-2012
GSM Communication Methods
TCP/IP via GPRS
Material
Metal
Max. Stored Phone Numbers
5 phone numbers for alarm SMS
Message Transmission Protocols
SIA DC-09-2007 / SIA DC-09-2012
Operating Temperature
-10 ~ +50°C / 80%RH (max.)
Outputs
OUT1 / OUT2 / OC type, commutates voltage of up to 30 V and direct current of up to 1 A
Power Consumption
10~30mA (Standby) <70mA (Active)
Power Supply
9~24VDC
PSTN Protocol
Ademco Contact ID SIA DC-05
Signal Frequency
4G, 3G, GS 850 / 900 / 1800 / 1900 MHz
SIM Card
3V SIM card support
Weight
0.50kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
185 mm
Height
55 mm
Depth
155 mm
Weight
0.60 kg
