Contact ID to SMS Communicator

SKU WGSMSB

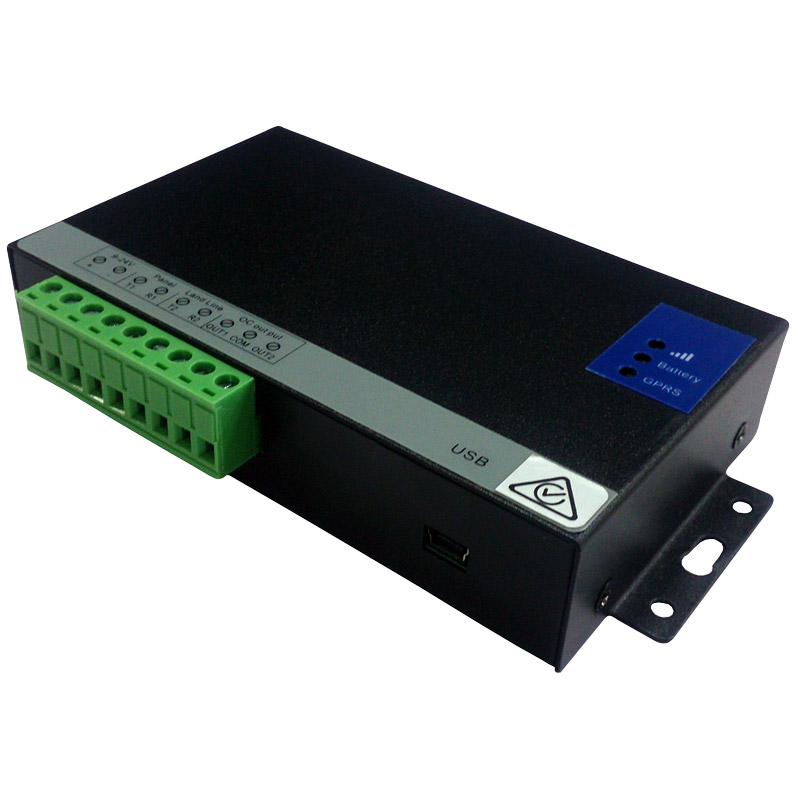

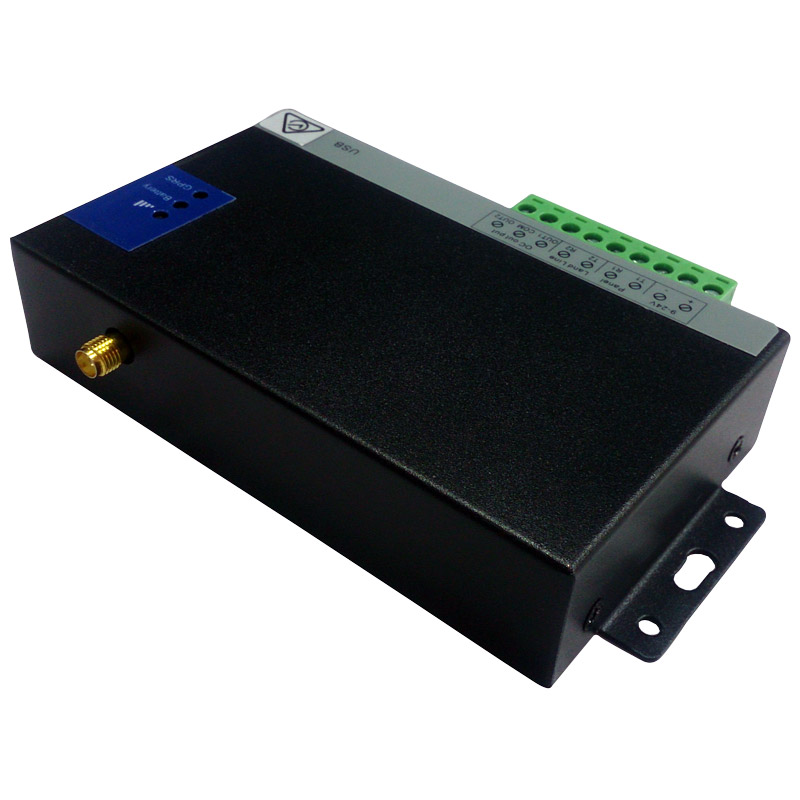

The WGSMSB is a wireless GSM communicator which is used as an SMS backup for alarm panels. The communicator sends SMS alerts over GPRS to notify the up to 5 users and/or monitoring stations when the alarm is triggered.

Product features:
• Notify up to 5 users via SMS for alarm events, supervision, GPRS fail, power loss and more
• Compatible for use with most modern alarm panels
• Easy to install plug-and-play design & sturdy metal case
• Configurable from PC via USB and SMS commands
• Backup rechargeable battery, SMS alert when power lost
• Supports 3 communication modes: PSTN, GPRS and SMS
• Supports 2 different CMS centers (IP addresses / DNS server)

* SIM card not included (Standard SIM only)

Suggested Products

Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

WGSMSB Brochure (PDF) 0.21 MB
WGSMSB Manual V1.2 (PDF) 2.61 MB
WGSMSB Contact ID Config Software (ZIP) 0.44 MB
CP210x Windows Drivers (ZIP) 3.68 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Antenna
50 Ω SMA Antenna interface
Backup Battery
3.7V/900mAH Li-ion, rechargeable
Configuration
USB port / SMS commands
Dimensions
130 x 74 x 27mm
GPRS Protocol
SIA DC-09-2007 / SIA DC-09-2012
GSM 3G Frequency
850 / 900 / 1800 / 1900 MHz, 3G optional
GSM Communication Ways
TCP/IP via GPRS
Max. Stored Phone Numbers
5 phone numbers for alarm SMS
Message Transmission Protocols
SIA DC-09-2007 / SIA DC-09-2012
Message Transmission Protocols
DC-09-2007 / SIA DC-09-2012
Operating Temperature
-20 ~ +60°C / 90%RH (max.)
Outputs
OUT1 / OUT2 / OC type Latched, Contact Rating: up to 30 VDC / 1 ADC
Power Consumption
20~30mA (Standby) / <270mA (Active)
Power Supply
9~12VDC
SIM Card
3V SIM card support
Weight
0.50kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
185 mm
Height
55 mm
Depth
155 mm
Weight
0.60 kg
