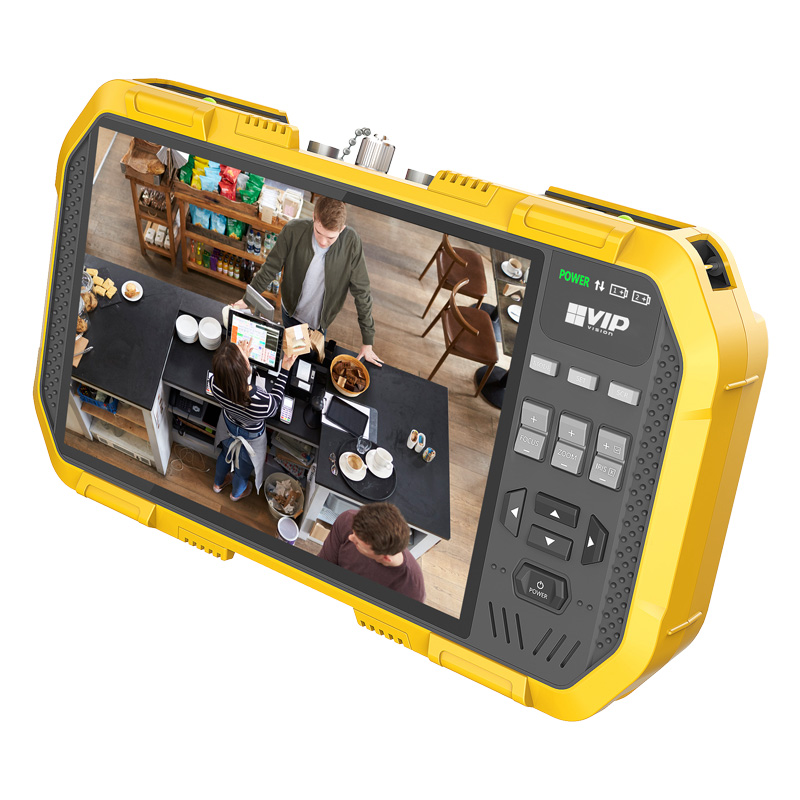

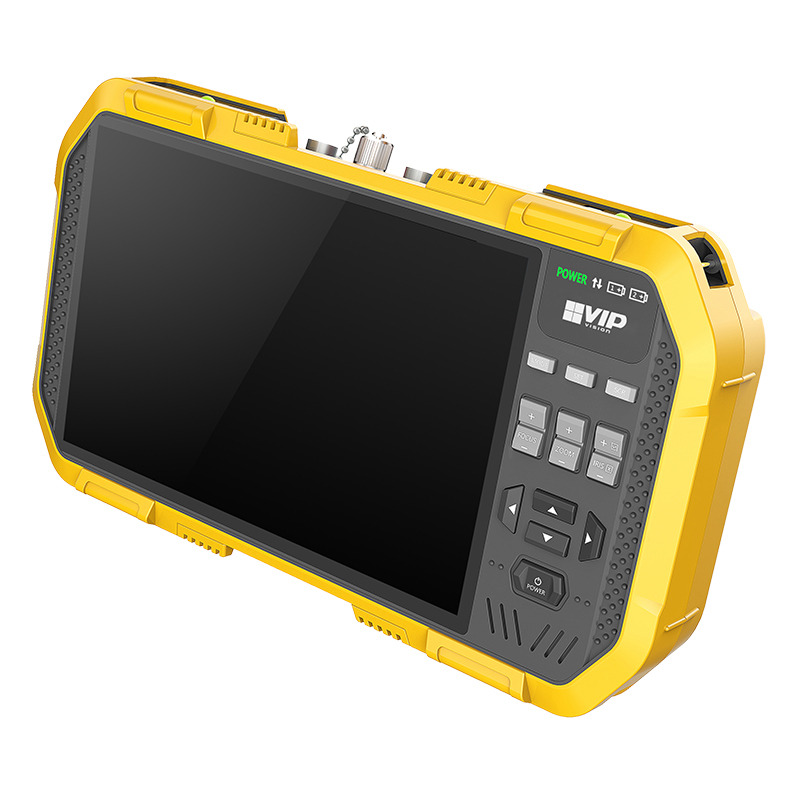

VSTEST112: Touch Screen Camera, Cable Tester & Digital Multi-meter

Specifications

System

Network Port

2 x 10/100/1000M RJ45 port

BNC Port

1 x Video In (HDCVI/TVI/AHD/Composite), 1 x Video Out

HDMI Port

1 x HDMI input, 1 x HDMI output

USB Port

1 x USB type-A, 1 x USB type-B

Misc. Port

1 x RS485, 1 x OPM, 4 x Multimeter

Screen

7.0’’ TFT touch screen, 1920 x 1200 resolution (16:10 aspect ratio)

Operation Method

13 key control button / Touch screen

Auto Power Off

Disable / 5~60 minutes

Language

13 languages

WiFI

Frequency: 2.4G/5G

Updates

Support online and local updates

IP Camera Test

Protocol

ONVIF, RTSP

IP Configuration

Static IP / DHCP client / DHCP server

IP Camera Resolution

Up to 8.0MP (3840 x 2160)

Camera Test

Modify IP camera resolution, IP address and account password, restore IP camera to factory defaults

IP Image Test

Live view, snapshot and recording, zoom, H.264/H.265 decoding

CVI Camera Test

Video Format

HDCVI / AHD / TVI / Composite (PAL / NTSC auto-detect)

Camera Resolution

HDCVI: Up to 2880x1620 @25fps / AHD: Up to 2560x1440 @ 25fps / TVI: Up to 2560x1440 @ 25fps / Composite: Up to 720x576 @25fps

Function Control

OSD menu; PTZ control

CVI Image Test

Live view, snapshot and recording, zoom

Video Signal Generator

PAL; NTSC video test signal / HDCVI; HDTVI; AHD video test signal (720p/1080p)

UTC

UTC (Up the Coax)

Switch from CVBS mode to CVI/TVI/AHD mode / Switches from one HD format (up to 1080p) to another HD format

DMM

Metering Functions

DC Voltage, AC Voltage, DC Current, AC Current, resistance test, capacitance test, diode voltage drop / continuity test

General Testing

RS485 Control

Communication protocol: More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan

Wireless

Spectrum test, Wi-fi test, Signal monitoring

Network Cable Test

Test network cable pair length, attenuation and delay deviation

HDMI Test

1ch HDMI video input (720p and 1080p) / 1ch HDMI video output (1920 ×1080p)

Audio Test

1 x audio input / 1 x audio output

Power Supply for Camera

12VDC 2A

Network Test

IP address scanning & ping test

Protocol Code Acquisition

Built–in serial port tool; receive and display RS485 protocol code data sent by control device, send hexadecimal codes

Optical Testing

Detector Type

InGaAs

Calibrated Wavelength

1625/1550/1480/1310n/1300/850 nm

Power Test Range

–70 dBm to +10 dBm

Measurement Accuracy

<±3% dB (–10 dBm, +22 °C); <±5% dB (FS, +22 °C)

Resolution

Linear: 0.1%, logarithmic : 0.01 dBm

Connector

FC/PC

Power

Battery

2 x 7.4V li-ion polymer battery, 2500mAh, 18.5Wh

Power Output

12VDC 1A / PoE: 48V 0.5

Working Time

Approx. 10 hours (2 batteries, can operate on 1 battery)

General

Storage

N/A

Working Temperature

-10°C ~ +55°C

Working Humidity

30% ~ 90%

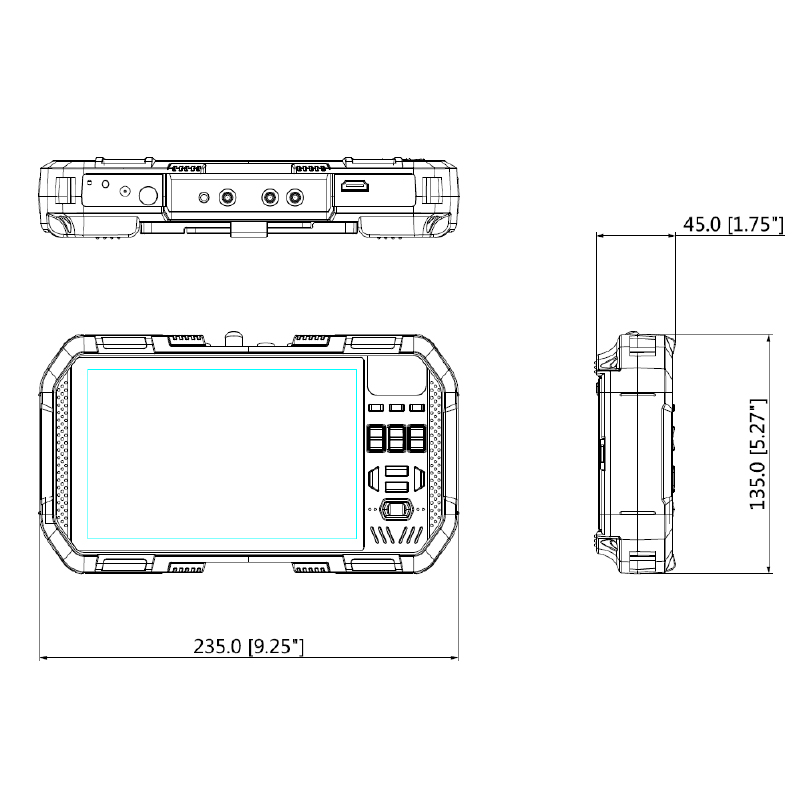

Dimensions

235mm x 135mm x 45mm

Weight

0.93kg
