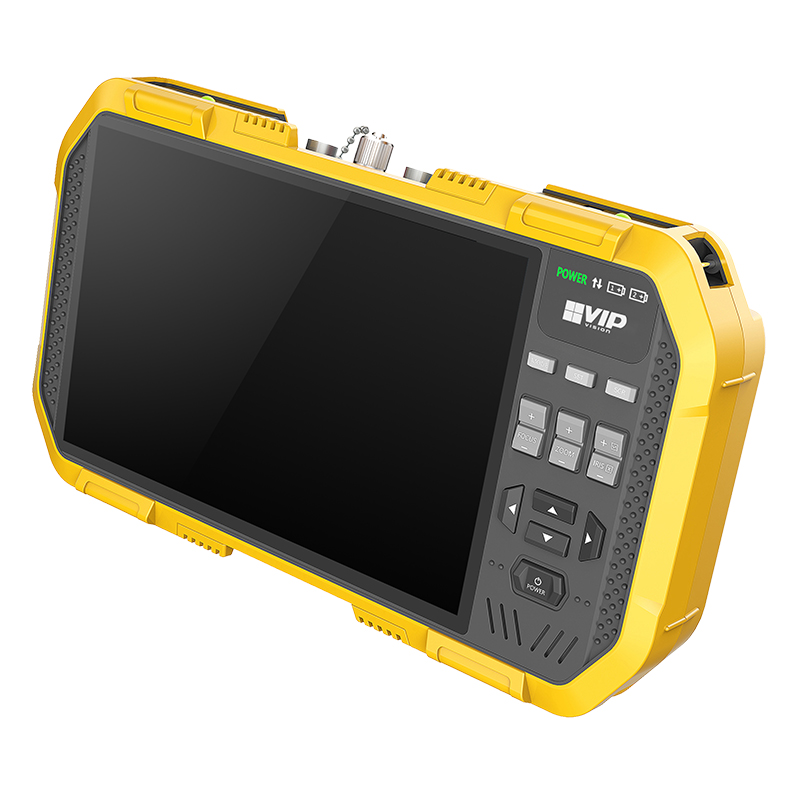

Touch Screen Camera, Cable Tester & Digital Multi-meter

Brand logo
SKU VSTEST111
Brand logo

Touch Screen Camera, Cable Tester & Digital Multi-meter

SKU VSTEST111

Stock may be limited. Please contact us for availability or for an alternative item.

The VIP Vision VSTEST111 is more than a CCTV camera tester - it is also a professional measurement & configuration instrument for a wide range of networking, electrical & cable testing applications. Using the 7'' high resolution touchscreen display, you can perform comprehensive IP & coaxial surveillance camera configuration including PTZs, cable testing for Ethernet and fibre, 2.4 & 5GHz WiFi testing, PoE device & source testing, and full digital multi-meter functions.

Product features:
• 7.0" touch screen with retina display (1920 x 1200) + 13 control keys
• Test real time video, PTZ control, audio test, live view & record
• 2 x RJ45 (100M), 2 x BNC (1 x in, 1 x out), RS485, micro USB, IP Surveillance (ONVIF, RTSP, RTP protocol)
• HDMI output and audio input/output
• Configure: static IP, DHCP client, DHCP server, camera configuration
• Wi-Fi monitoring and testing
• H.265 decoding for cameras up to 8.0MP
• Over 30 protocols for PTZ control with up to 192,000bps baud rate
• Network, coax and optical cable testing
• Up to 10 hours operation time with 3~4 hours recharge time
• LED flashlight with support for online firmware upgrades

Links and Downloads

VSTEST Series Datasheet (PDF) 0.62 MB
VSTEST111 User Manual (PDF) 7.80 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Physical
Network Port
2 x 10/100/1000M RJ45 port, support series/bridge connection
BNC Port
1 x Video In (HDCVI/TVI/AHD/Composite), 1 x Video Out
Function Port
1 x TDR, 1 x OPM, 1 x RS485, 1 x HDMI, 1 x Audio In, 1 x Audio Out, 1 x USB, 1 x Micro USB
Screen
7.0’’ capacitive touch screen with retina display, 1920 x 1200 resolution (16:10 aspect ratio)
Operation Method
Power button, 13 key control button, capacitive multi-touch screen input
Auto Power Off
Disable / 5~60 minutes
Tools
N/A
Updates
Support online updates
PoE
PD Test
Tester as a powered device (using 802.3at) / Detects power supply voltage
PSE Test
Tester as a power source, up to 25.5w (802.3at) / Detects powered device actual power
IP Camera Testing
IP Camera Protocol
ONVIF, RTSP, RTP
Ethernet Test
10M/100M/1000M Ethernet link detection, ethernet loop detection, DHCP client and server, ethernet traffic detection, data link quality detection
IP Camera Resolution
Up to 8.0MP
IP Configuration
Static IP / DHCP client / DHCP server
IP Camera Test
Discover camera, real-time video, camera configuration, PTZ test, discovering ONVIF device
IP Camera Digital Zoom
8 x Digital Zoom
Coaxial Camera Testing
Video Formats
HDCVI / AHD / TVI / Composite
Video Encoding
PAL, NTSC (auto-detect) / H.265, H.264
Resolution
HDCVI (up to 8.0MP) / AHD (up to 4.0MP) / TVI (up to 4.0MP)
Camera Test
Discovering the device, real-time video, camera configuration, PTZ test, discovering ONVIF device
Coaxial Camera Digital Zoom
8 x digital zoom
Coaxial OSD
Camera configuration
WiFi Test
WiFi Test
Support 2.4G/5G frequency band, WiFi connection, WiFi list, WiFi information detection, delay detection, test of packet loss rate
Signal Monitoring
Monitor WiFi signal change, refresh frequency: 1~10Hz
Antenna Type
Fold-able dual antenna, dual band dipole omni-directional antenna
Optical
Calibration Wavelength
850 / 1300 / 1310 / 1480 / 1550 / 1625nm
Signal Strength
-70 ~ +10 dBm
Connector
Interchangeable FC/PC
HDMI
HDMI In
N/A
HDMI Out
Supports 1920 x 1080p
PTZ
PTZ Protocol
More than 30 protocols
Baud Rate
150 ~ 19200bps
Cable
Network Cable Testing
TDR method
Coaxial Cable Testing
TDR, Analog video generator
Optical Cable Testing
VFL (Visual fault locator)
Digital Multi-Meter
Metering Function
AC/DC voltage / AC/DC current / resistance / capacitance / diode forward voltage / conductivity
Power
Battery
2 x 7.4V li-ion polymer battery, 2500mAh, 18.5Wh
Power Output

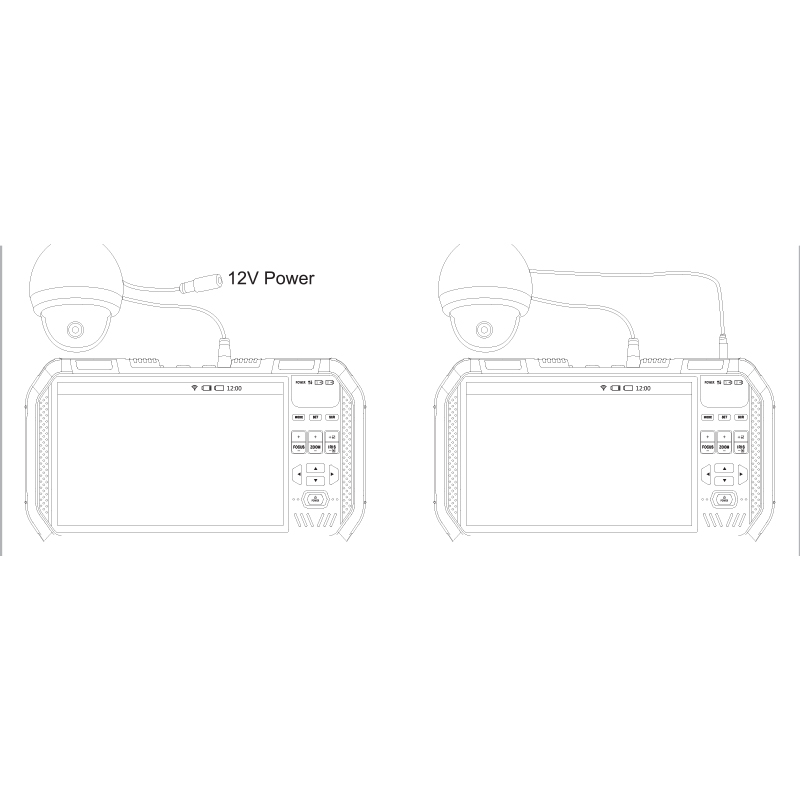

12VDC 2A / PoE: 25.5W (802.3at)
Charging Time
3 ~ 4 hours (per battery)
Time
8 ~ 10 hours (2 batteries, can operate on 1 battery)
Environment
On-Board Storage
N/A
Working Temperature
-10°C ~ +55°C
Working Humidity
30% ~ 90%

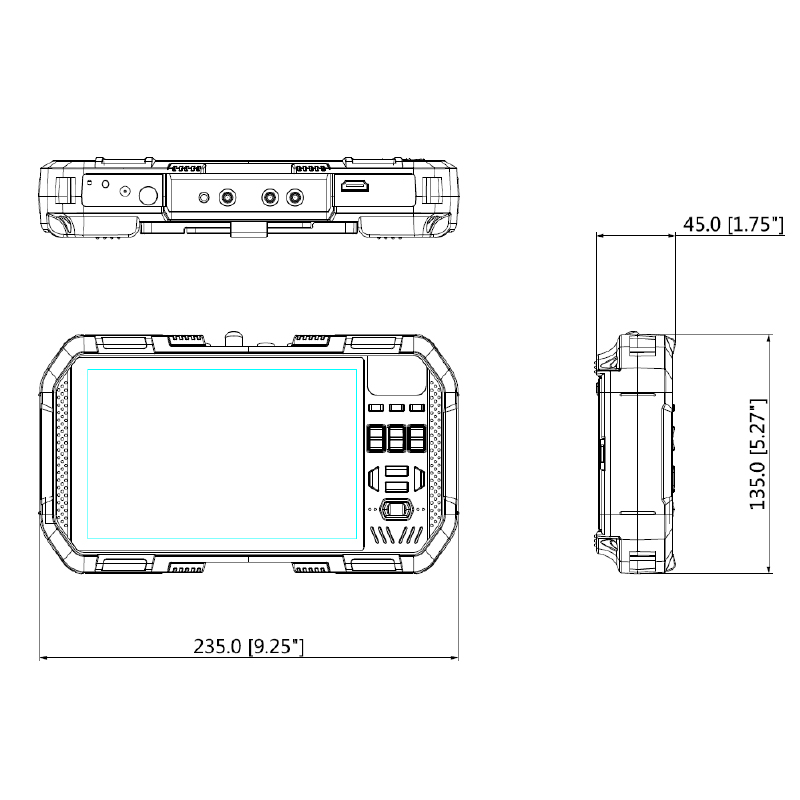

Dimensions
235x135x45mm
Weight
0.93Kg
Warranty (Years)
4
