Surveillance Camera & Cable Tester

Brand logo
SKU VSTEST101
Brand logo

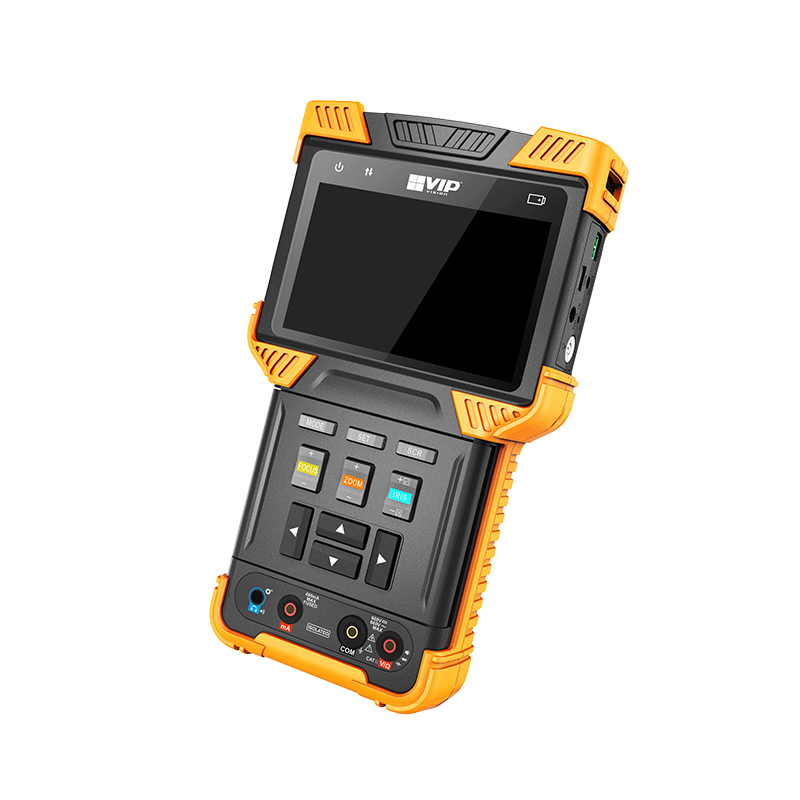

Surveillance Camera & Cable Tester

SKU VSTEST101

Stock may be limited. Please contact us for availability or for an alternative item.

The VSTEST101 is an installation device which delivers the ability to test and configure IP, HDCVI and analogue surveillance cameras in real-time during surveillance installations.

Product features:
• 4.0" IPS display (800 x 480), 12 control keys & flip-out QWERTY keyboard
• 2 x RJ45 (1000M), 2 x BNC (video in/out), RS485, USB and Audio-in IP Surveillance (ONVIF 2.4.1, RTSP, RTP protocols)
• Configure: static IP, DHCP client, DHCP server, camera configuration
• Test: camera discovery, realtime video PTZ control, audio, view and record HDCVI & Analogue Surveillance (PAL/NTSC, D1/720p/1080p/2.0MP/4.0MP)
• Digital multi-meter, testing current, voltage and more
• H.265 decoding for cameras up to 8.0MP
• Test: real time video, PTZ control, audio test, view and record
• Over 30 protocols for PTZ control with up to 19200bps baud rate
• Generate PAL/NTSC video signals; support for local footage playback
• Power by PoE midspan; PoE (802.3af/at) and 12VDC/2A power outputs
• Up to 10 hours operation time with 3~4 hours recharge time
• Dual LED flashlight with support for online firmware upgrades

Suggested Products

Suggested product image
UTC Video Output Controller
VSSELECT101
Suggested product image
Touch Screen Camera & Cable Tester
VSTEST110

Links and Downloads

VSTEST Series Product Brochure .pdf 0.62 MB
How to Operate the VSTEST101
CE/ RCM Certificate
RoHS Certificate

Specifications

Physical
Network Port
2 x 10/100/1000M RJ45 port, support switch mode
BNC Port
1 x Video In (HDCVI/TVI/AHD/Composite), 1 x Video Out
Function Port
1 x RS485, 1 x Audio In, 1 x Mini USB, 1 x Reset
Screen
4.0 inch TFT RGB screen (WVGA), 16.7M colour, 223 PPI, 800 x 480 resolution (5:3 aspect ratio)
Operation Method
45 key QWERTY flip keyboard , Power key, 12 control keys
Auto Power Off
Disable / 5~60 minutes
Tools
Data Monitor (from RS485 device) / Audio Recorder / Flashlight (Toggle with LED On/Off Button)
Updates
Support online updates
PoE
PD Test
Tester as a powered device (using 802.3at) / Detects power supply voltage
PSE Test
Tester as a power source, up to 25.5w (802.3at) / Detects powered device actual power
IP Camera Testing
IP Camera Protocol
ONVIF, RTSP, RTP
Ethernet Test
10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, IP adress scan, ping test, DCHP server
IP Camera Resolution
Up to 4.0MP
IP Configuration
Static IP/ DHCP client/ DHCP server
IP Camera Test
Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and digital zoom, snapshot, record video (recording original data stream)
IP Camera Digital Zoom
8 x Digital zoom
Coaxial Camera Testing
Video Formats
HDCVI / AHD / TVI / Composite
Video Encoding
PAL, NTSC (auto-detect) / H.265, H.264
Resolution
HDCVI (up to 4.0MP) / AHD (up to 4.0MP) TVI (up to 5.0MP)
Camera Test
Real time video / PTZ control / RS485 control / Audio test/ Full screen preview with digital zoom / Snapshot / Record video / Video play back
Coaxial Camera Digital Zoom
8 x digital zoom
Coaxial OSD
Camera configuration
WiFi Test
WiFi Test
N/A
Signal Monitoring
N/A
Antenna Type
N/A
Optical
Calibration Wavelength
N/A
Signal Strength
N/A
Connector
N/A
HDMI
HDMI In
N/A
HDMI Out
N/A
PTZ
PTZ Protocol
More than 30 controls
Baud Rate
150 ~ 19200bps
Cable
Network Cable Testing
TDR method
Coaxial Cable Testing
TDR, Analog video generator
Optical Cable Testing
N/A
Digital Multi-Meter
Metering Function
AC/DC voltage / AC/DC current / resistance / capacitance / diode forward voltage / open and short testing
Power
Battery
7.4V li-ion polymer battery, 3000mAh, 22.2Wh
Power Output
12VDC 2A / PoE: 25.5W (802.3at)
Charging Time
3~4 hours
Time
8 ~ 10 hours
Environment
On-Board Storage
Built-in 8GB flash
Working Temperature
-10°C ~ +55°C
Working Humidity
30% ~ 90%
Dimensions
190 x 113 x 37mm
Weight
1.6kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
113 mm
Height
190 mm
Depth
37 mm
Weight
1.60 kg
