UTC Video Output Controller

Brand logo
SKU VSSELECT101
Brand logo

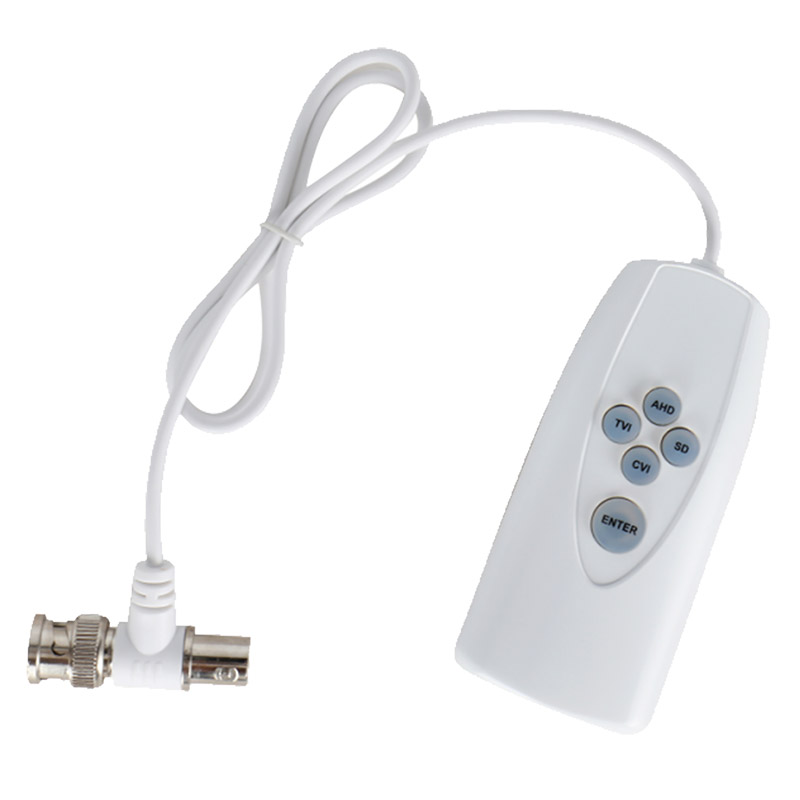

UTC Video Output Controller

SKU VSSELECT101

The VSSELECT101 UTC Video Output Controller changes the video output format of coaxial cameras to HDCVI, TVI, AHD or Analogue. This allows you to configure camera video outputs by simply connecting the VSSELECT101 and pushing a button, saving the hassle of setting up a DVR and monitor for configuration.

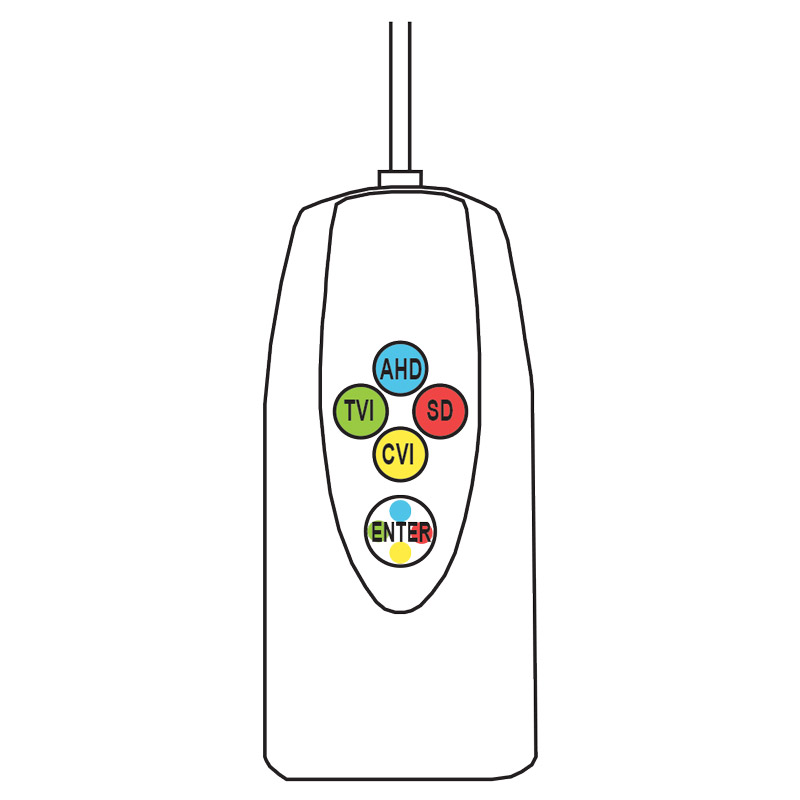

When pressed, the Enter button conveniently lights up to show the current video output of the connected camera.

Features
• Supports HDCVI/TVI/AHD/Analogue configuration
• Simple plug-and-play functionality
• Indicator lights show current video output format
• 560mm cable length
• 2 x AAA battery powered

Links and Downloads

VSSELECT101 Brochure (PDF) 0.34 MB
VSSELECT101 User Manual 0.24 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Cable Length
560mm

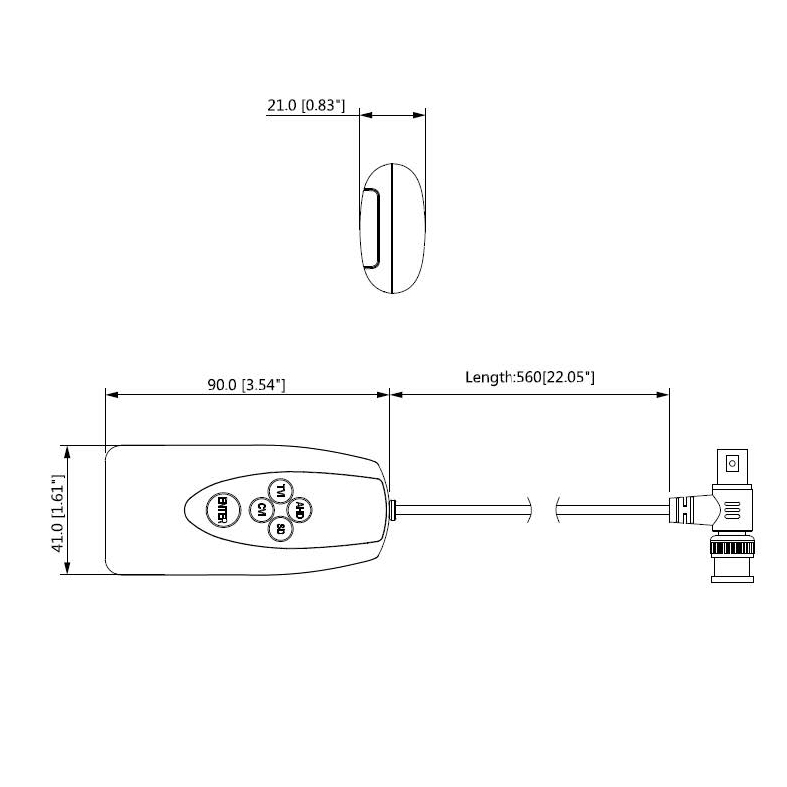

Dimensions
90 x 41 x 21mm
Material
Polycarbonate & ABS
Operating Environment
0℃ ~ 40℃ / RH95% (max)
Power Consumption
0.3W
Power Supply
2 x AAA battery
Supported Formats
HDCVI/TVI/AHD/Analogue
Weight
48g
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
77 mm
Height
34 mm
Depth
122 mm
Weight
0.08 kg
