12V-32V DC to 56V DC Power Converter and Battery Charger

Brand logo
SKU VSPOWCONVERTER4
Brand logo

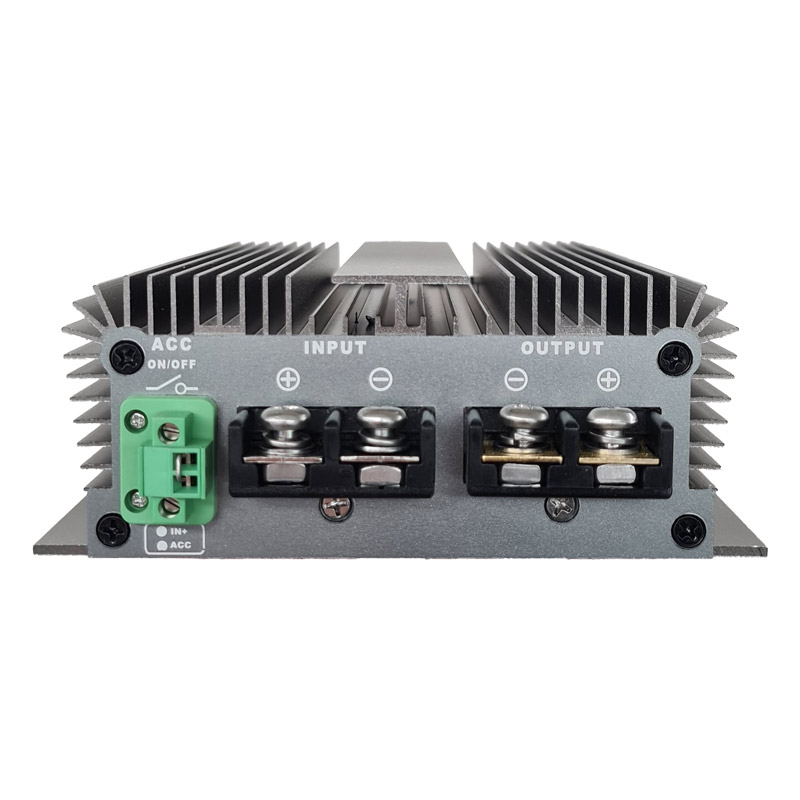

12V-32V DC to 56V DC Power Converter and Battery Charger

SKU VSPOWCONVERTER4

Available by special order only. Please contact us for lead times.

Convert DC power from wide 11V DC to 32V DC supply to 56V with the VSPOWCONVERTER4.

• Wide input voltage 11V to 32V, stable 56V output voltage
• 10A typical output current
• Charges lithium and lead acid batteries
• 100% full rated power & stable output current, high efficiency up to 95%
• IP68 epoxy-potted, anti-vibration chassis; surface mounting
• Over current and over voltage protection
• Over temp. shutdown and output short circuit protection
• Cooling by free air convection and efficient heatsink design

*Avoid operating at 32V input voltage for long periods

Suggested Products

Suggested product image
12V DC to 24V DC Power Converter
VSPOWCONVERTER1
Suggested product image
24V DC to 12V DC Power Converter
VSPOWCONVERTER2
Suggested product image
24VAC to 12VDC Power Converter
VSPOWCONVERTER3

Links and Downloads

VSPOWCONVERTER4 Datasheet (PDF) 0.21 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Warranty (Years)
1

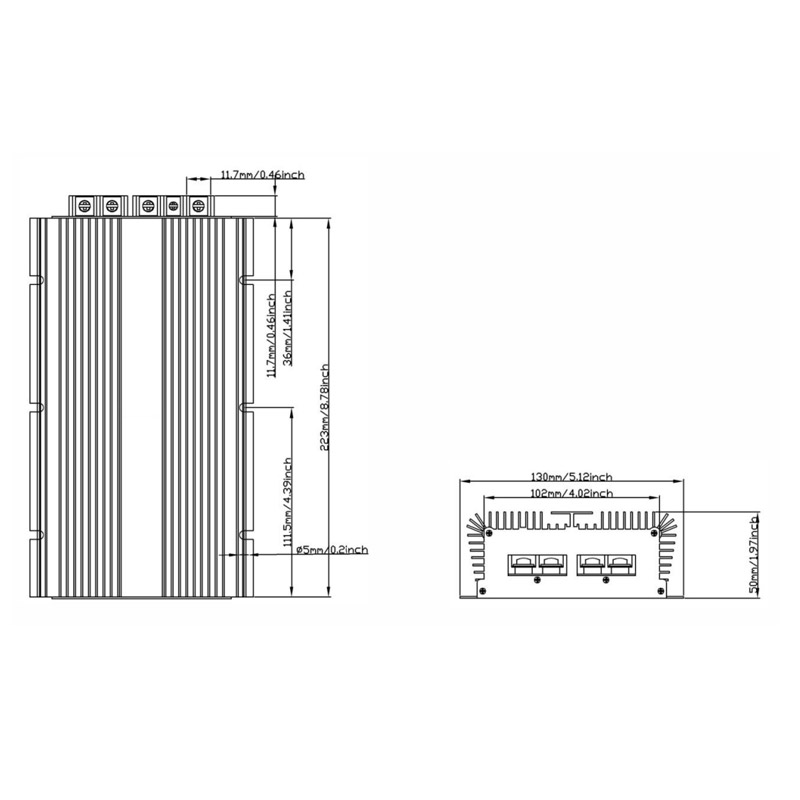

Shipping Weight and Dimensions

Includes product packaging

Width
90 mm
Height
150 mm
Depth
30 mm
Weight
0.81 kg
