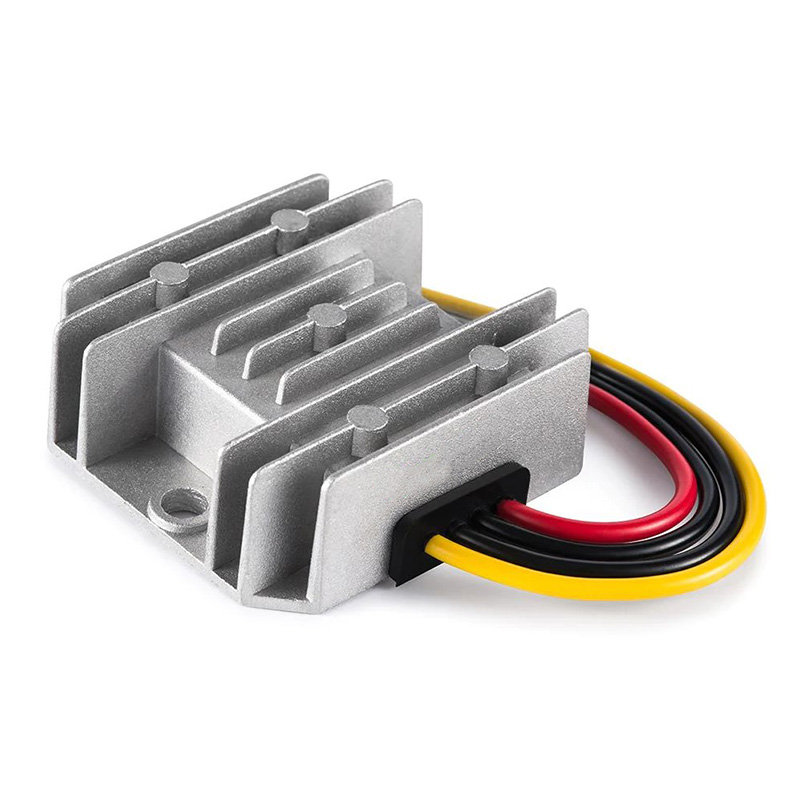

24V DC to 12V DC Power Converter

SKU VSPOWCONVERTER2

24V DC to 12V DC Power Converter

SKU VSPOWCONVERTER2

Convert DC power from 24V supplied to 12V with the VSPOWCONVERTER2.

Features:

• Wide input voltage and stable output voltage
• 100% full rated power and 100% burn-in test
• High efficiency up to 94%
• Surface mountable
• Over current protection, Over voltage protection
• Over temperature protection
• Cooling by free air convection
• IP68 waterproof, Epoxy potting, Anti-vibration, Dustproof

Suggested Products

Regulated Switchmode Step Down Converter
VSPOWCONVERTER

12V DC to 24V DC Power Converter
VSPOWCONVERTER1

24VAC to 12VDC Power Converter
VSPOWCONVERTER3

12V-32V DC to 56V DC Power Converter and Battery Charger
VSPOWCONVERTER4

Links and Downloads

DC Power Converter Series Datasheet (PDF) 0.26 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Input Voltage

18~35VDC

Output Voltage

12VDC

Output Current (Typical)

10A

Output Power Max

120W

Ripple & Noise (Typical)

120 mVp-p

Efficiency (Typical)

94%

Warranty (Years)

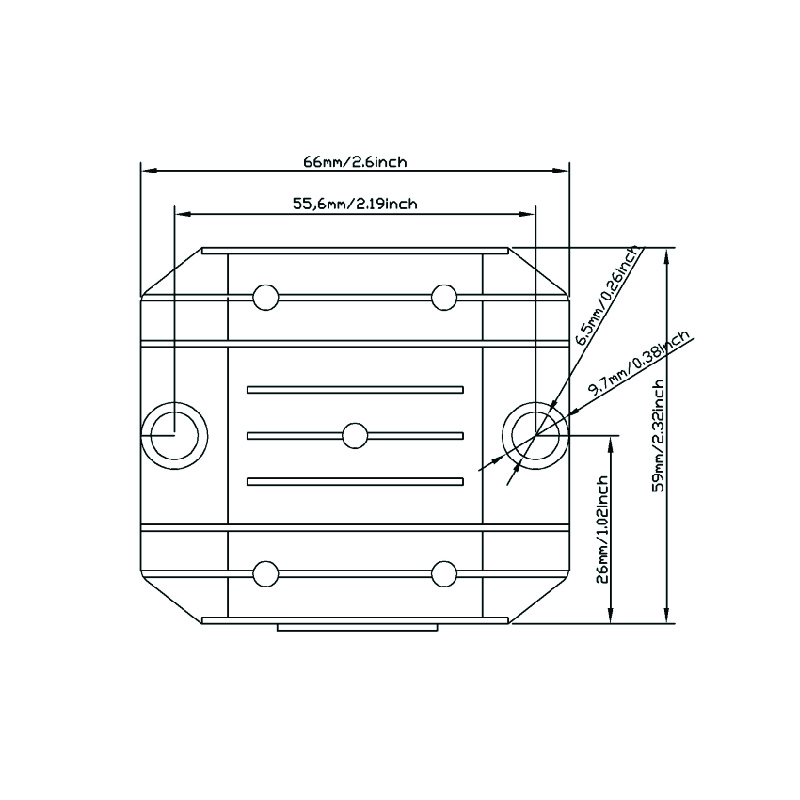

Shipping Weight and Dimensions

Includes product packaging

Width

98 mm

Height

80 mm

Depth

32 mm

Weight

0.20 kg
