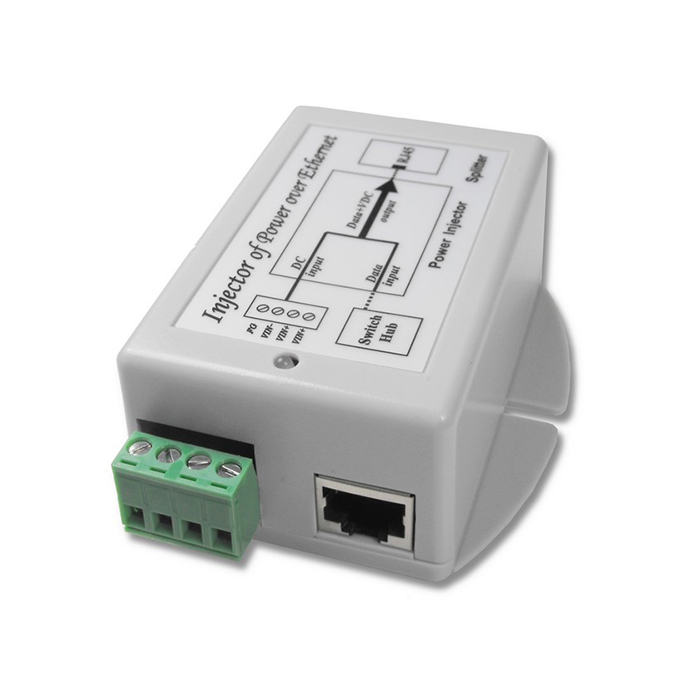

9~36VDC to 48VDC PoE Injector/Converter

Brand logo
SKU VSPOEINJDCV2
Brand logo

9~36VDC to 48VDC PoE Injector/Converter

SKU VSPOEINJDCV2

The VSPOEINJDCV2 is the PoE solution for high-power cameras, converting any voltage from 9~36VDC and outputting at 48VDC.

Product features:
• Input Voltage 9-36VDC; Output 48VDC
• 24W power output
• Integrated Gigabit PoE inserter
• Integrated PoE injector
• Short circuit, overcurrent & overvoltage protection
• High operating temperature
• Removable wire terminal input for up to 12AWG wires

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

DC Input Voltage
9VDC ~ 36VDC
DC Output Voltage (+/-2.5%)
48VDC
Dimensions
85 x 76 x 36mm
Efficiency (min)
75%
EMC Standards
FCC Class B NE55022 Class B
Input Connector
Removeable Screw Type Compression Wire Terminal (12 AWG Max)
Line Regulation
1%
Load Regulation
5%
Noise
1%
Operating Environment
-30 to +60°C / 90%RH (Max)
Output Connector
RJ45 (Shielded)
Output Current (max)
0.35A
Output Power (max)
24W
Ripple
1%
Safety Standards
UL1950, CSA 22.2 &TUV EN60950
Self Consumption Power
1W
Storage Temperature
-40 to +80°C
Weight
0.13kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
70 mm
Height
70 mm
Depth
150 mm
Weight
0.50 kg
