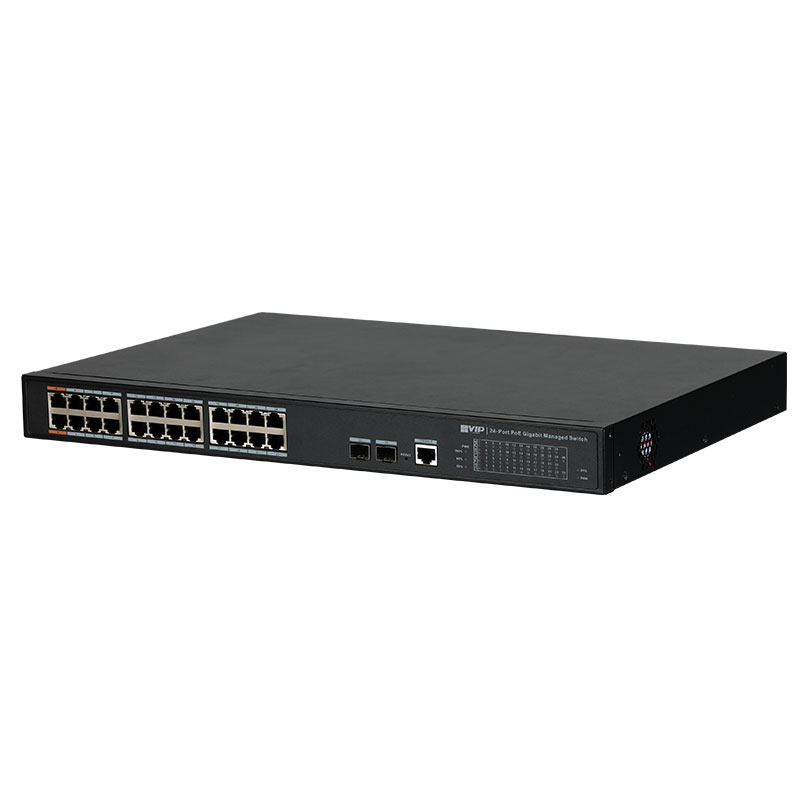

24-port Managed Gigabit Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWC24
Brand logo

24-port Managed Gigabit Hi-PoE Ethernet Switch

SKU VSPOE-SWC24

Stock may be limited. Please contact us for availability or for an alternative item.

The VSPOE-SWC24 is a fast rackmount ethernet switch, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features.

Product features:
• 22 x PoE+ 1000Mbps device ports
• 2 x Hi-PoE 1000Mbps device ports
• 2 x 1000Mbps Base-X (SFP) uplink combo ports
• PoE, PoE+ and Hi-PoE support for up to 60W per port
• Total PoE power load up to 360W
• L2 management, manage via web browser
• Rackmount tabs for 19” cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 2kV

Links and Downloads

VIP Vision VSPOE-SWC Datasheet (PDF) 0.73 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
Port 1-24: 16 x 10/100/1000M Base-T (PoE)
Uplink Ports
Port 25-26: 2 x 1000M Base-X (uplink)
Switching Capacity
52Gbps
Packet Forwarding Rate
38.68Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE802.3af / IEEE802.3at / Hi-PoE
Switch Power Load
Port 1~2: ≤60W, Port 3~24: ≤30W
Management
Switch Management
L2 Management
MAC Address Capacity
8K
Virtual LAN
802.1Q Standard VLAN
Network Time Protocol
Support
Spanning Tree Protocol
STP / RSTP / MSTP
Port Aggregation
Manual aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP client, DHCP server, DHCP snooping
Extend Mode
N/A
Flow Control
Half-duplex based on back pressure type control, Full duplex based on PAUSE frame
Security Features
Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
System Maintenance
Configuration file upload/download, Supports updated packet upload, System log
Quality of Service
Support QoS base on CoS/DPL/PCP/DEI, Each port support 8 output queue, Support port shaping, Support port tag remarking, Support QoS base on DSCP
Network Management
Web (http protocol), Serial, SNMP
PoE Management
N/A
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 2kV / Differential Mode: 1kV
Mounting Options
Rackmount Tabs
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
3.51kg

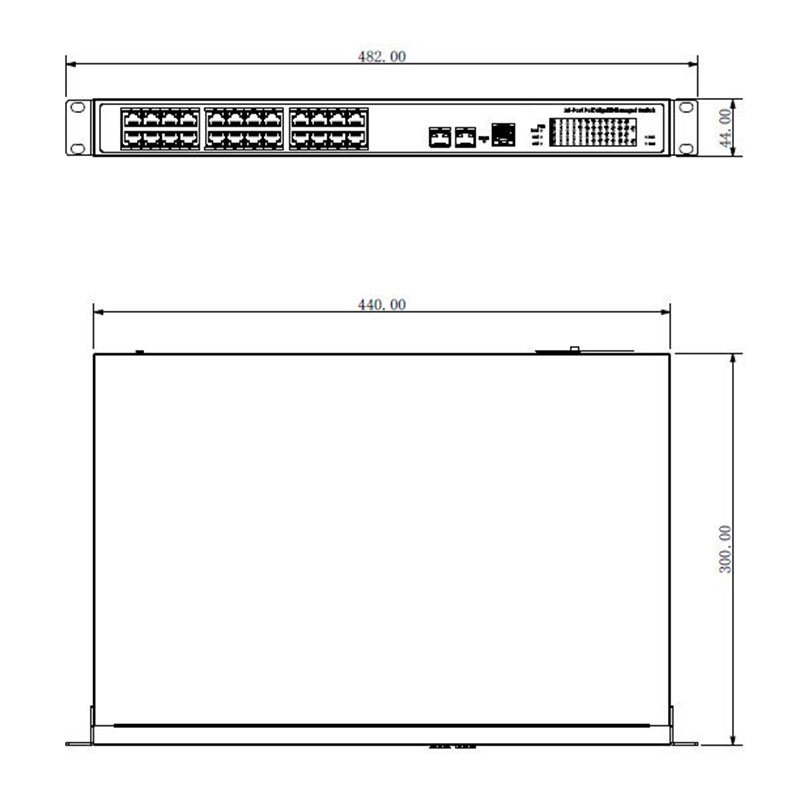

Dimensions
440 x 300 x 44mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
530 mm
Depth
420 mm
Weight
5.00 kg
