24-Port Managed PoE 2.0 Gigabit Ethernet Switch

Brand logo
SKU VSPOE-SWB24G4
Brand logo

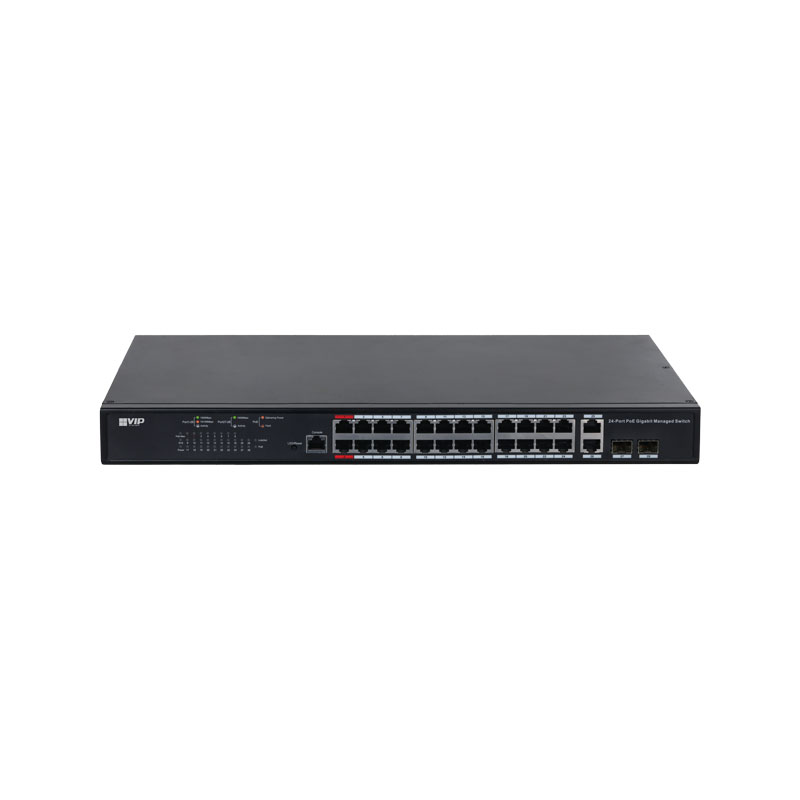

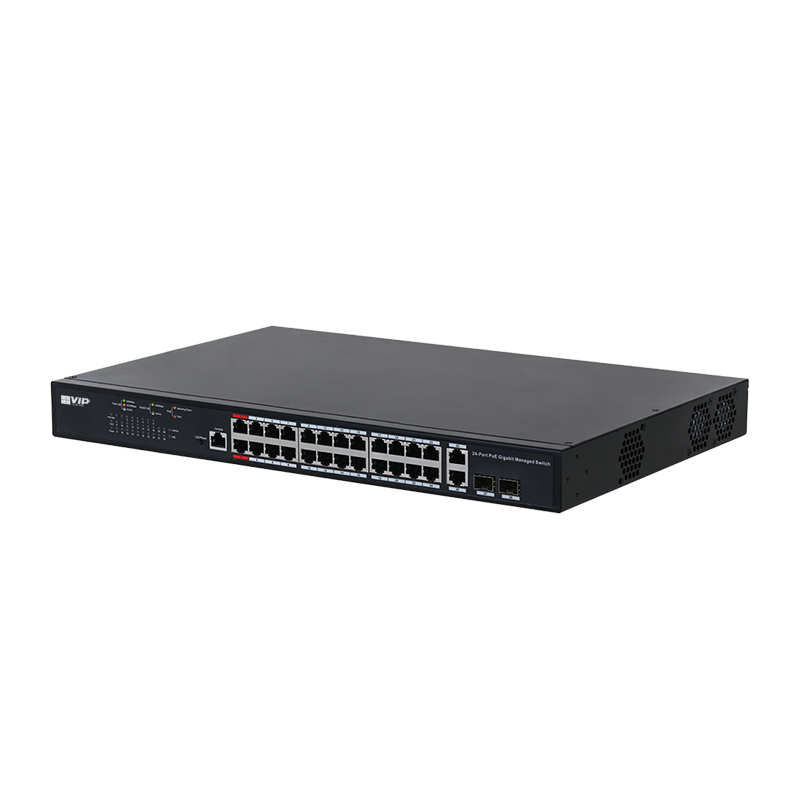

24-Port Managed PoE 2.0 Gigabit Ethernet Switch

SKU VSPOE-SWB24G4

The VSPOE-SWB24G4 managed PoE switch comes with 24 Gigabit PoE device ports and 4 Gigabit uplink ports. Highly reliable, it can carry a full load of 370 W. It also has a strong switching capability and optimizes transmission performance when accessing Ultra HD videos.

• 24 x 1000M/Gigabit PoE device ports
• 2 x RJ45/Base-T and 2 x SFP/Base-X 1000M uplink ports
• Red ports 1 & 2 support 90W PoE supply (IEEE802.3bt)
• Standard ports 3~24 support 30W PoE+ supply
• Total PoE power load up to 370W
• L2 web management with friendly interface and easy operation
• Extend mode takes Ethernet cable runs up to 250m
• 56Gbps switching capacity
• Managed switch for network transmission customisation
• Rackmount tabs included for easy cabinet mounting
• Professional appearance full metal enclosure
• Operating temperature range : 0 °C to +45 °C

Links and Downloads

VSPOE-SWB Series Datasheet .pdf 0.56 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
Port 1-24:24 × 10M/100M/1000M Base-T (PoE)
Uplink Ports
Port 25-26:2 × 10M/100M/1000MBase-T (uplink) (combo)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.7 Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE802.3af/ IEEE802.3at/IEEE802.3bt
Switch Power Load
PoE Power Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, Total ≤ 370 W
Management
Switch Management
Managed
MAC Address Capacity
18K
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Network Time Protocol
Support
Spanning Tree Protocol
STP; RSTP; MSTP
Port Aggregation
Static link aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP client, DHCP server, DHCP snooping
Extend Mode
Up to 250m range at 10Mbps (port configurable via management interface)
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Security Features
IP+MAC binding based on port; IEEE802.1x port authentication
System Maintenance
One-key recovery / Supports updated packet upload / System log
Quality of Service
High and low priority / WRR / 802.1P / DSCP / Support priority according to protocol
Network Management
Web (http and https protocol); CLI; SNMP V1/ V2C/V3
PoE Management
PoE setting (real-time port consumption) / PoE event statistics / Green PoE
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common mode: 6 kV
Mounting Options
Desktop Mount, Rack Mount
Operating Environment
0 °C to +45 °C
Weight
5kg

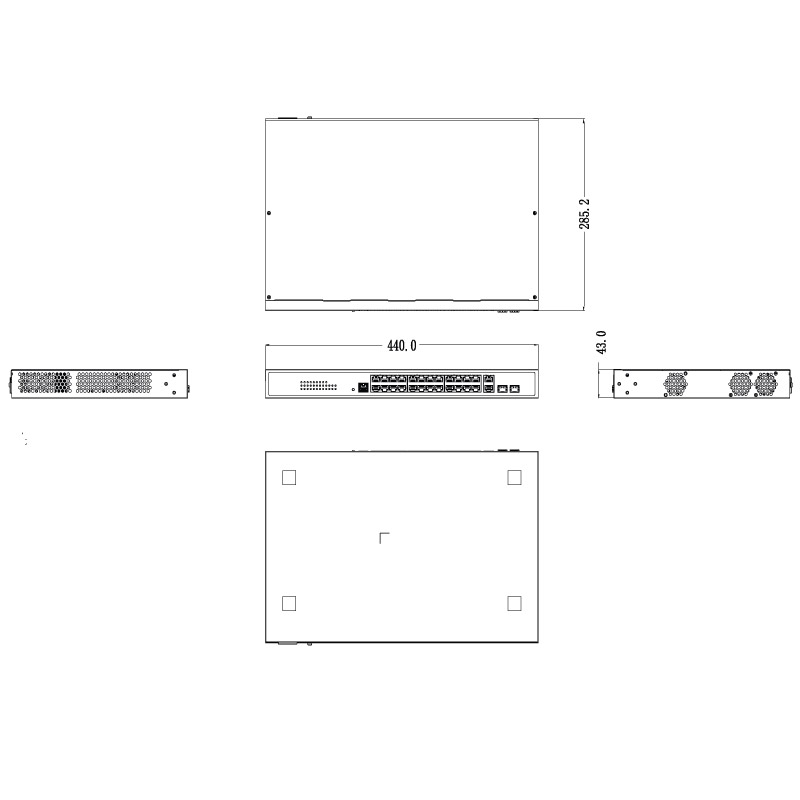

Dimensions
440 mm × 290.7 mm × 43.3 mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
0 mm
Height
0 mm
Depth
0 mm
Weight
5.00 kg
