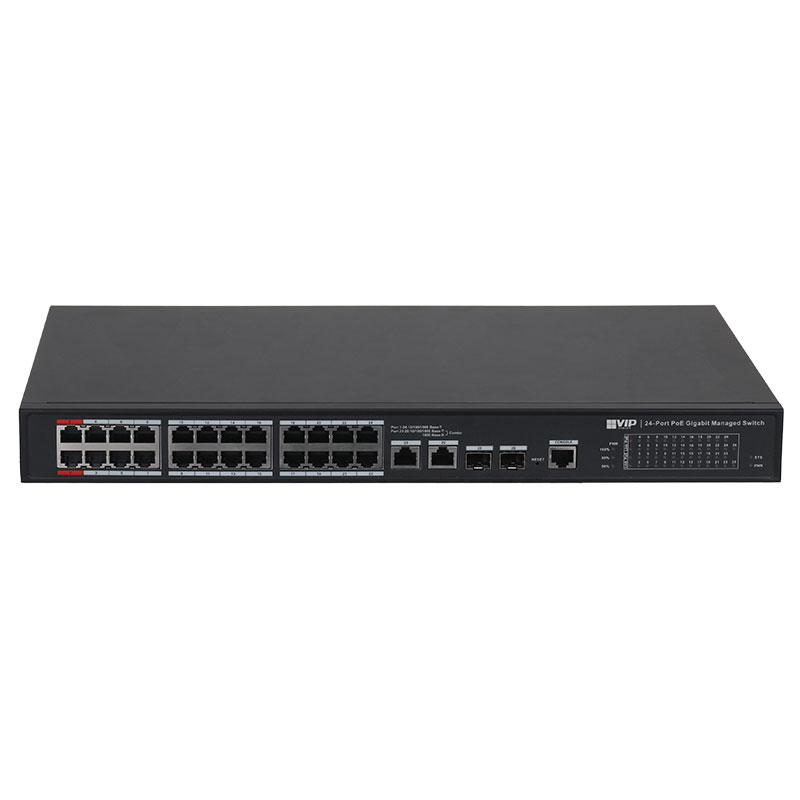

24-port Managed Gigabit Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWB24G3
Brand logo

24-port Managed Gigabit Hi-PoE Ethernet Switch

SKU VSPOE-SWB24G3

Stock may be limited. Please contact us for availability or for an alternative item.

The VSPOE-SWB24G3 is a rackmount, gigabit Hi-PoE switch in 24 ports. This switch is a flexible, high speed networking solutions, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features

Product features:
• 22 x PoE+ 1000Mbps device ports
• 2 x Hi-PoE 1000Mbps device ports
• 2 x 1000Mbps Base-T uplink ports
• 2 x 1000Mbps Base-X (SFP) uplink combo ports
• PoE, PoE+ and Hi-PoE support for up to 90W per port
• Total PoE power load up to 360W
• L2 management for network transmission configuration
• Rackmount tabs for 19” cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 4kV

Links and Downloads

VIP Vision SWB-G3 Gigabit PoE Switch Datasheet (PDF) 0.87 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
Port 1-24: 16 x 10/100/1000M Base-T (PoE)
Uplink Ports
Port 25-26: 2 x 10/100/1000M Base-T (uplink) / Port 25-26: 2 x 1000M Base-X (uplink) (combo)
Switching Capacity
52Gbps
Packet Forwarding Rate
38.68Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt
Switch Power Load
Port 1-2: ≤90W / Ports 3-16: ≤30W (Total: ≤360W)
Management
Switch Management
Managed
MAC Address Capacity
8K
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Network Time Protocol
Support
Spanning Tree Protocol
STP / RSTP / MSTP
Port Aggregation
Manual aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP Client / DHCP Server / DHCP Snooping
Extend Mode
N/A
Flow Control
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Security Features
User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection
System Maintenance
Configuration file upload/download, Supports updated packet upload , System log
Quality of Service
8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP
Network Management
Web (http and https protocol), iLinksView, CLI; SNMP V1/V2C/V3
PoE Management
Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Rackmount Tabs (1RU)
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
3.75kg
Dimensions
440 x 300 x 44mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
270 mm
Depth
240 mm
Weight
4.42 kg
