24-port Managed Gigabit Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWB24G2
Brand logo

24-port Managed Gigabit Hi-PoE Ethernet Switch

SKU VSPOE-SWB24G2

Stock may be limited. Please contact us for availability or for an alternative item.

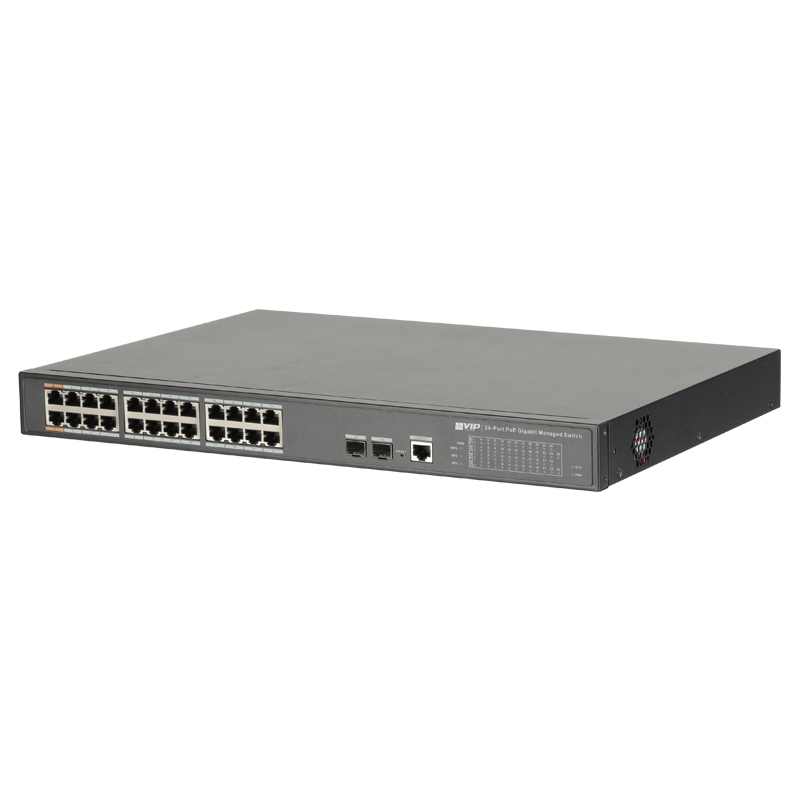

The VSPOE-SWB24G2 is a rackmount, gigabit Hi-PoE switch in 24 ports. It is a versatile networking solution for demanding bandwidth requirements, with flexibility for a range of high-powered PoE devices. It is an L2 managed switch, offering configuration of network traffic quality of service, VLAN and a suite of other features.

• 22 x PoE+ device ports with 1000Mbps per port
• 2 x Hi-PoE device ports with 1000Mbps per port
• 2 x 1000Mbps Gigabit SFP (Base-X) uplink ports
• 1 x RS232 via RJ45 console port for management access
• Total PoE power load up to 360W
• Managed switch for network transmission customisation
• Rackmount tabs included for easy cabinet mounting
• Professional appearance full metal enclosure

Suggested Products

Suggested product image
CAT5E Solid Core Cable Unshielded (Blue) 305m Pullbox
CAT5EBLU
Suggested product image
Power Over Ethernet Extender for Midspans
VSPOE-EX
Suggested product image
60W Power Over Ethernet Midspan
VSPOE-MS

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
24 x 10/100/1000 Base-T (PoE power supply ports)
Uplink Ports
2 x 1000 Base-X
Switching Capacity
52Gbps
Packet Forwarding Rate
38.68Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switch Power Load
Port 1-2: ≤60W / Ports 3-24: ≤30W / Total: ≤360W
Management
Switch Management
Managed
MAC Address Capacity
8K
Virtual LAN
802.1Q Standard VLAN
Network Time Protocol
Support
Spanning Tree Protocol
STP / RSTP / MSTP
Port Aggregation
Manual aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP Client / DHCP Server / DHCP Snooping
Extend Mode
N/A
Flow Control
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Security Features
User management, SSH, HTTPS, SNMP v1/2/3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
System Maintenance
Configuration file upload/download / Supports updated packet upload / System log
Quality of Service
Quality of Service based on CoS / DPL / PCP / DEI / DSCP / 8 output queue per port / Supports port shaping & port tag remarking
Network Management
WEB (HTTP protocol) / Serial / Support SNMP V1/V2/V3
PoE Management
N/A
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 2kV / Differential Mode: 1kV
Mounting Options
Rackmount Tabs (1RU)
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
3.85kg
Dimensions
440 x 300 x 44mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
530 mm
Height
120 mm
Depth
420 mm
Weight
4.50 kg
