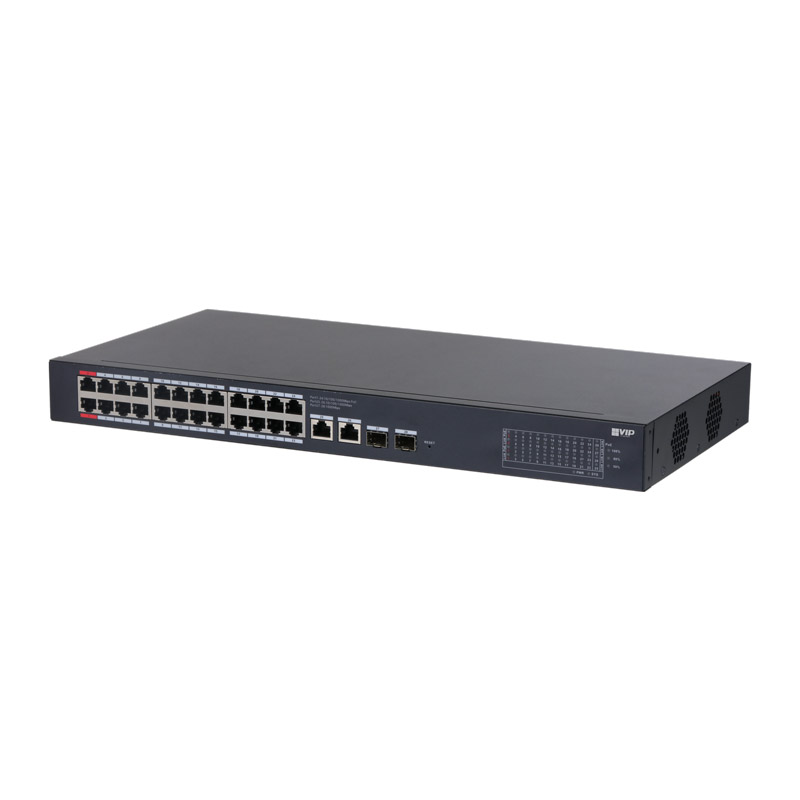

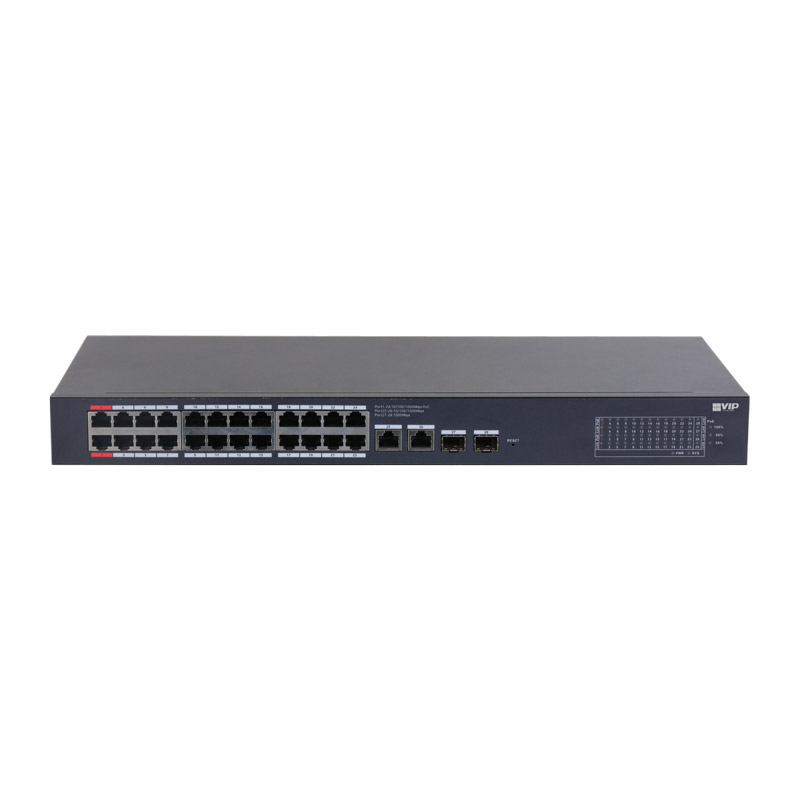

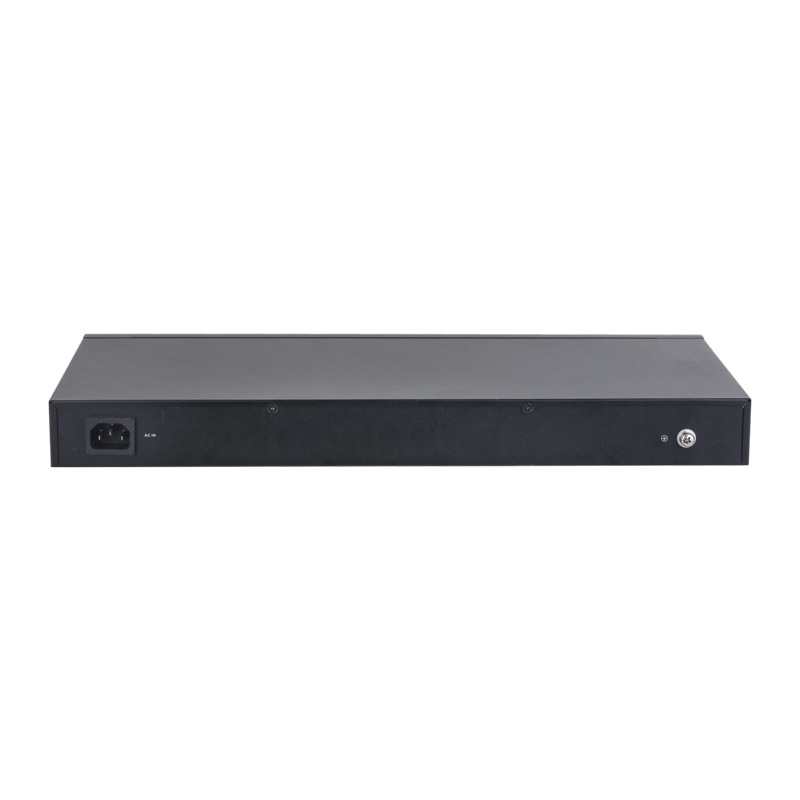

24-port Cloud Managed Gigabit Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWB24C
Brand logo

24-port Cloud Managed Gigabit Hi-PoE Ethernet Switch

SKU VSPOE-SWB24C

This product is Coming Soon. Please contact us for more information.

The VSPOE-SWB24C is a rackmount gigabit Hi-PoE switch with 24 ports. These switches are smart managed switch's that can manage local networks and perform cloud management . The switch performs operation and maintenance using topology visualization on front-end, transmissions and back-end storage devices.

Product features:
• 24 x 1000M/Gigabit PoE device ports
• 2 x RJ45/Base-T and 2 x SFP/Base-X 1000M uplink ports
• Port 1 - 2 < 90W
• Ports 3 - 24 < 30W
• Total PoE power load up to 400W
• L2 management for network transmission configuration
• 56Gbps switching capacity

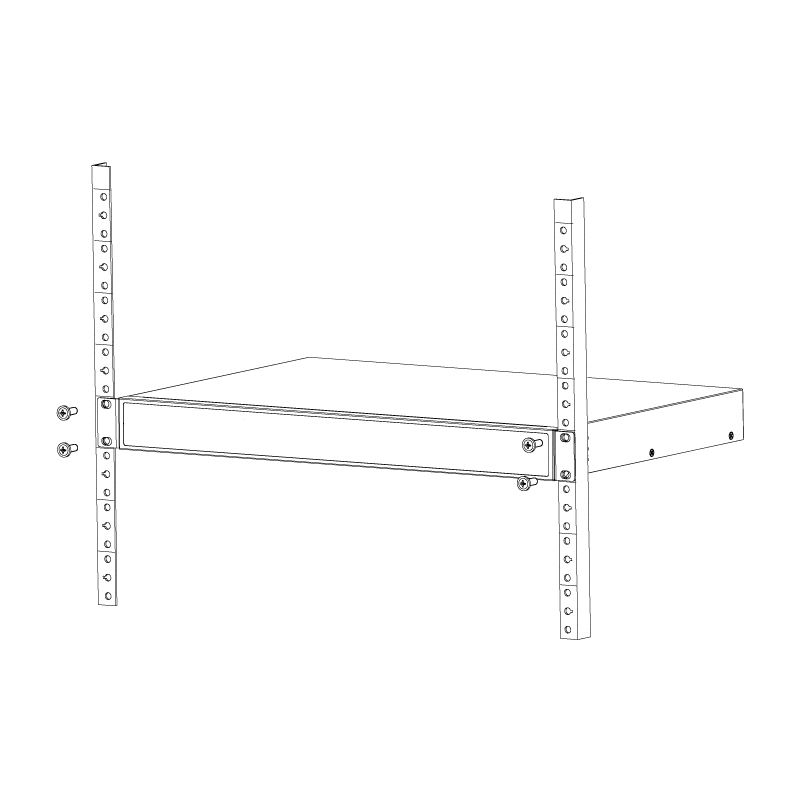

• Rackmount tabs included for easy cabinet mounting
• Operating temperature range : –10 °C to +55 °C

Suggested Products

Suggested product image
16-port Cloud Managed Gigabit Hi-PoE Ethernet Switch
VSPOE-SWB16C

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
24 ports
Speed
Gigabit 10/100/1000
Device Ports
Port 1-24:24 × 10M/100M/1000M Base-T (PoE)
Uplink Ports
Port 25-26:2 × 10M/100M/1000MBase-T (uplink) (combo)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE802.3af/ IEEE802.3at/IEEE802.3bt
Switch Power Load
PoE Power Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, Total ≤ 375 W
Management
Switch Management
Managed
MAC Address Capacity
8K
Virtual LAN
IEEE802.1q Standard VLAN / VLAN Amount: 4K
Network Time Protocol
Support
Spanning Tree Protocol
STP; RSTP
Port Aggregation
Manual aggregation / LACP protocol
Port Mirroring
Many-to-one port mirroring
LLDP
Support
DHCP
DHCP client, DHCP server, DHCP snooping
Extend Mode
Support up to 250m at 10Mbps
Flow Control
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Security Features
User management, HTTPS, SSH, SNMP V1/V2/V3, ACL, 802.1x, Loop protection
System Maintenance
Configuration file upload/download, Supports updated packet upload, System log
Quality of Service
8 output queues for each port, Traffic shaping, port tag remarking, QoS based on CoS/DPL/PCP, QoS based on DSCP
Network Management
Web (http and https protocol); CLI; SNMP V1/ V2C/V3
PoE Management
Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support.
Environmental
Input Power
100 ~ 240VAC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
Desktop Mount, Rack Mount
Operating Environment
Operating Temperature –10 °C to +55 °C
Weight
2.66kg

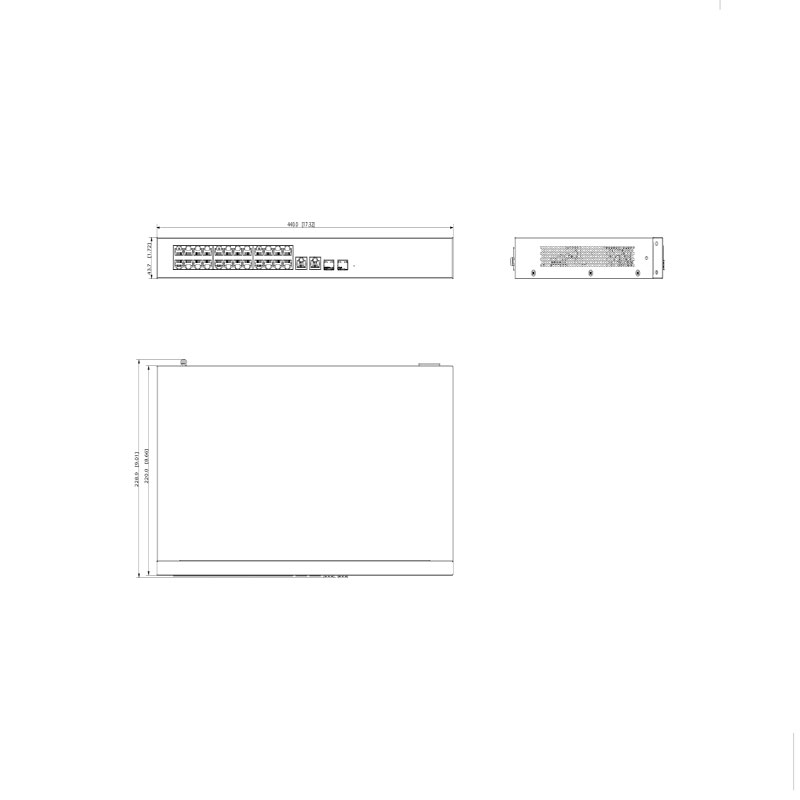

Dimensions
440 mm × 220 mm × 44 mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
0 mm
Height
0 mm
Depth
0 mm
Weight
5.00 kg
