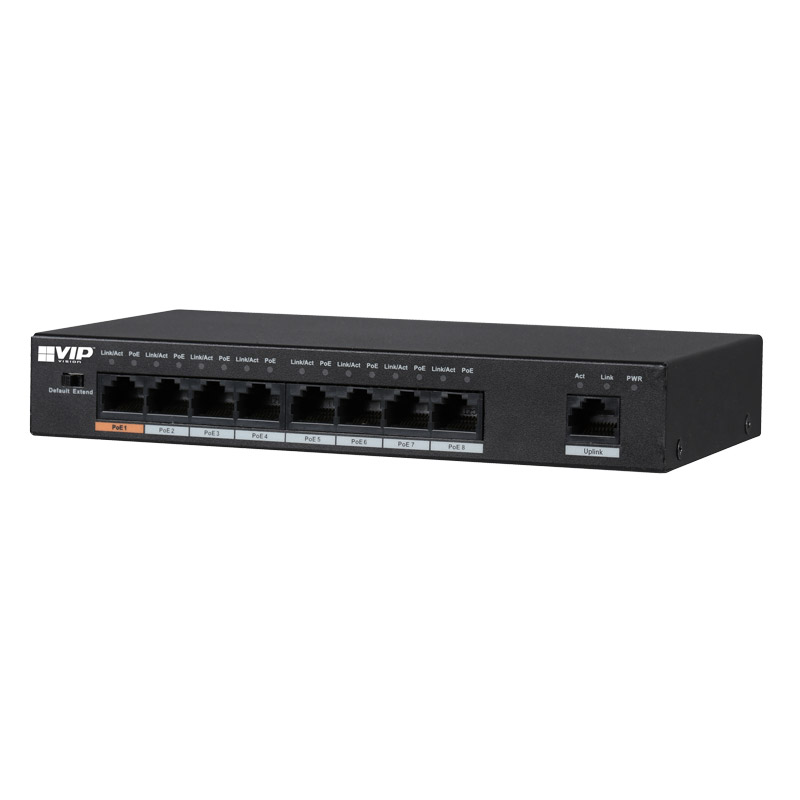

8-port Unmanaged PoE+ Switch (1 Uplink port, 1 Hi-PoE port)

SKU VSPOE-SWA8

8-port Unmanaged PoE+ Switch (1 Uplink port, 1 Hi-PoE port)

SKU VSPOE-SWA8

Stock may be limited. Please contact us for availability or for an alternative item.

The VSPOE-SWA8 is an 8-port Ethernet switch. It features 8 10/100Mbps PoE ports & 1 100Mbps uplink port, with 250m PoE transmission.

This commercial POE switch provides high-speed data forwarding and is widely used in networking and wireless systems, surveillance, IP telephony and more.

Features:
• Layer 2 commercial PoE switch
• Features 1 'Orange' Hi-PoE port
• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
• MAC auto learning & aging with 2K MAC address capacity
• Supports MDI/MDIX self-adaptation
• Support PoE, PoE+ and Hi-PoE
• 250m PoE transmission range
• Metal casing

Suggested Products

16-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA16

24-port Managed Fast Hi-PoE Ethernet Switch
VSPOE-SWA24

Links and Downloads

CE/ RCM Certificate

RoHS Certificate

Specifications

Dimensions

190 x 100 x 42mm

Ethernet Ports

1 x 10/100 Base-T / 8 x 10/100 Base-T (PoE power supply)

Exchange Mode

Store & forward

Operating Environment

-10° ~ 55°C / RH90% (max)

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Power Consumption

Port 1: ≤60W / Port 2-8: ≤30W / Total: ≤96W

Remote Management

N/A

Weight

0.48kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

240 mm

Height

75 mm

Depth

270 mm

Weight

1.80 kg
