4-port Unmanaged Fast Hi-PoE Ethernet Switch

Brand logo
SKU VSPOE-SWA4
Brand logo

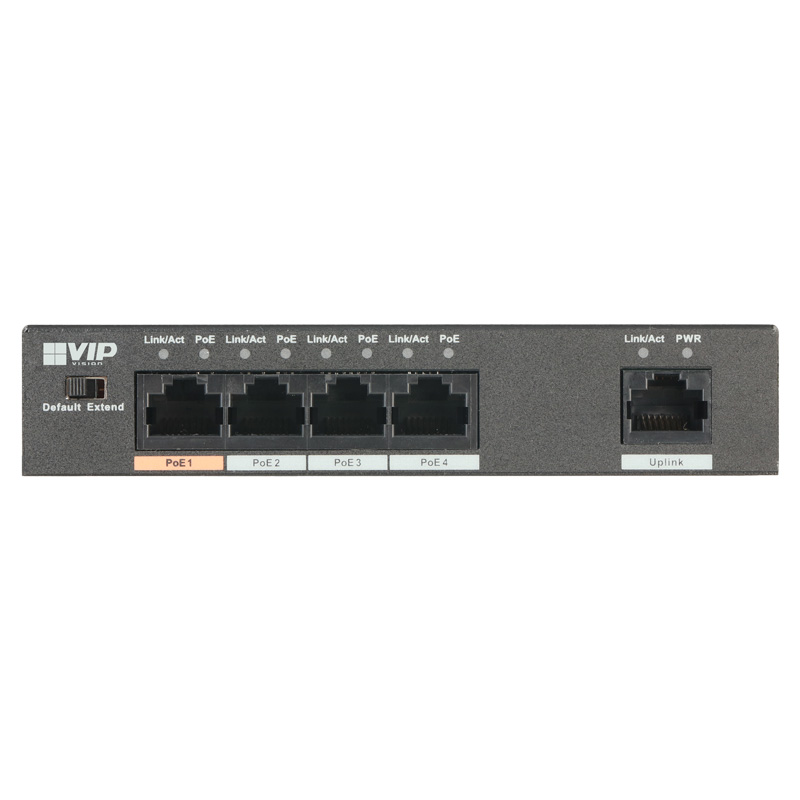

4-port Unmanaged Fast Hi-PoE Ethernet Switch

SKU VSPOE-SWA4

Stock may be limited. Please contact us for availability or for an alternative item.

The VSPOE-SWA4 is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.


Product features:
• 4 x PoE+ device ports with 10/100Mbps per port
• 1 x Hi-PoE device port with 10/100Mbps per port
• Total PoE power load up to 60W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure

Links and Downloads

VIP Vision VSPOE-SWA Series Ethernet Switches Datasheet (PDF) 0.50 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
4 ports
Speed
Fast 10/100
Device Ports
4 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
1 x 10/100 Base-T
Switching Capacity
1Gbps
Packet Forwarding Rate
744Kpps
Exchange Mode
N/A
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switch Power Load
Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)
Management
Switch Management
Unmanaged
MAC Address Capacity
1K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range at 10Mbps (all ports via device switch)
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 2kV / Differential Mode: 1kV
Mounting Options
Desktop
Operating Environment
-10°C~55°C / RH5%~95%
Weight
0.29kg
Dimensions
130 x 85 x 26mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
270 mm
Depth
240 mm
Weight
1.80 kg
