8-port Unmanaged Fast Extended PoE Ethernet Switch

Brand logo
SKU VSPOE-SW8E
Brand logo

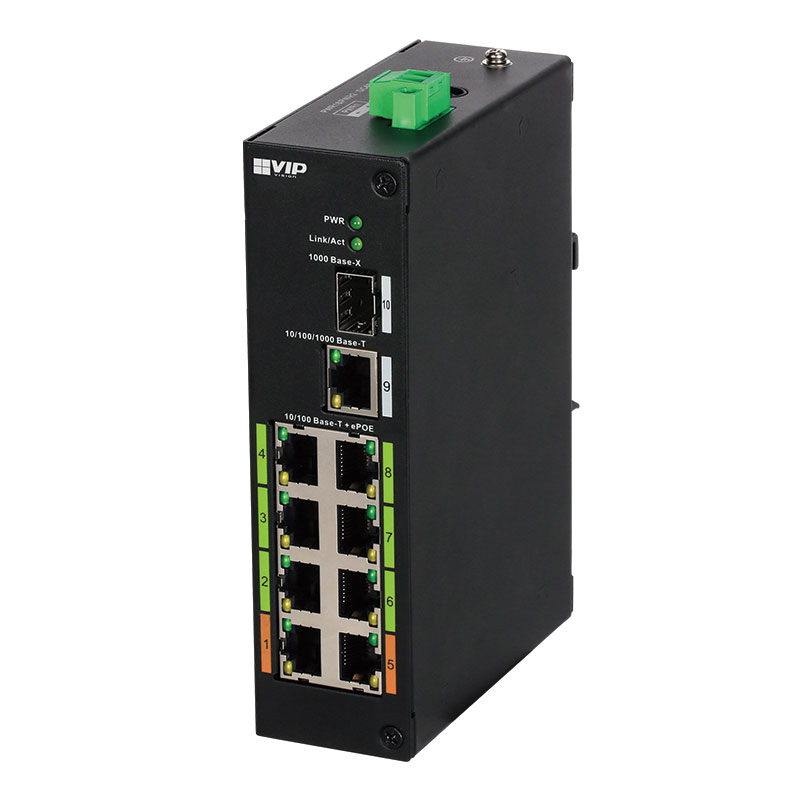

8-port Unmanaged Fast Extended PoE Ethernet Switch

SKU VSPOE-SW8E

The VSPOE-SW8E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW8E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting.

• 8 x PoE+ device ports with 100Mbps per port (ePoE capable)
• 1 x Hi-PoE device port with 100Mbps per port (ePoE capable)
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 120W
• Extend up to 300m@100Mbps and 800m@10Mbps
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure

* Refer to datasheet for ePoE transmission performance tables

Links and Downloads

VSPOE-SWE Series Product Datasheet (PDF) 0.79 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
8 ports
Speed
Fast 10/100
Device Ports
8 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
1 x 1000 Base-X / 1 x 10/100/1000 Base-T
Switching Capacity
8.8Gbps
Packet Forwarding Rate
4.17Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switch Power Load
Ports 1, 5: ≤60W / Port 2, 3, 4, 6, 7, 8: ≤30W (Total: ≤120W)
Management
Switch Management
Unmanaged
MAC Address Capacity
8K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
Enabled
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental

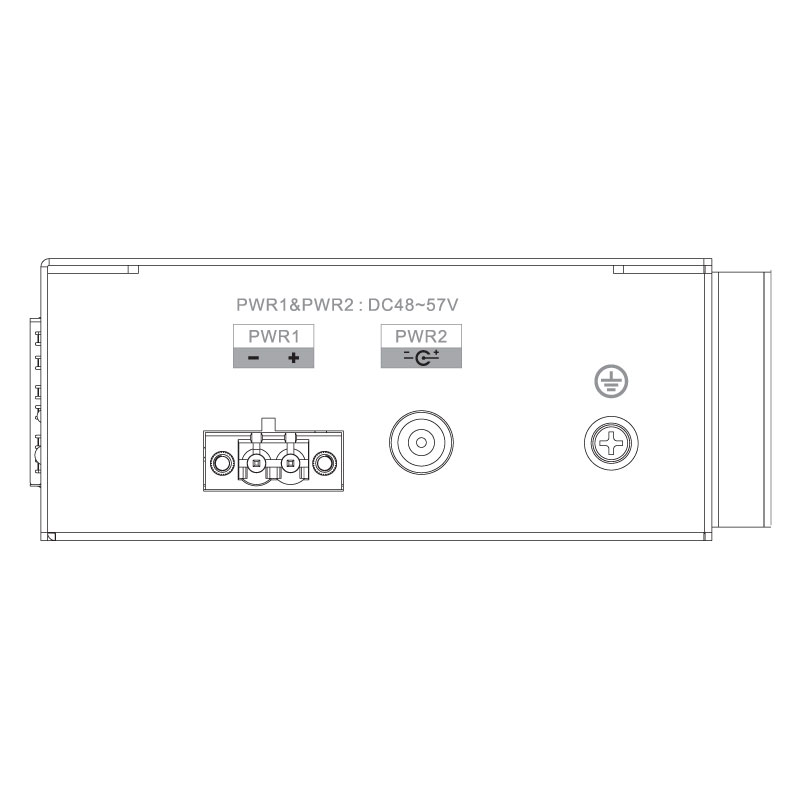

Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 4kV / Differential Mode: 2kV
Mounting Options
DIN rail
Operating Environment
-30°C~65°C / RH10%~90%
Weight
0.59kg
Dimensions
150 x 100 x 42mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
270 mm
Depth
240 mm
Weight
2.00 kg
