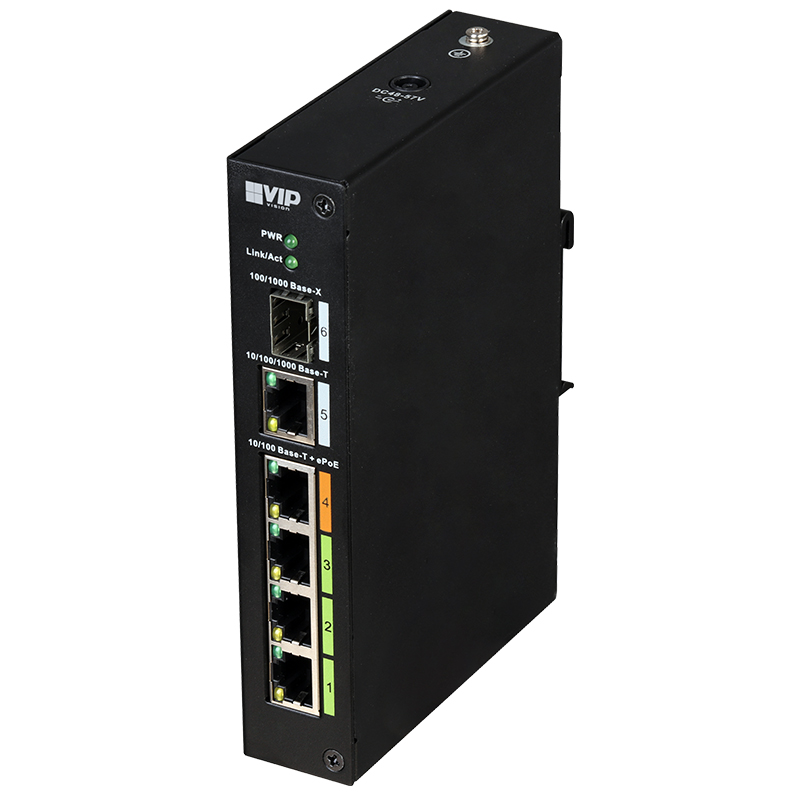

4-port Unmanaged Fast Extended PoE Ethernet Switch

SKU VSPOE-SW4E

4-port Unmanaged Fast Extended PoE Ethernet Switch

SKU VSPOE-SW4E

Stock may be limited. Please contact us for availability or for an alternative item.

The VSPOE-SW4E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW4E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting.

• 3 x PoE+ device ports with 100Mbps per port (ePoE capable)
• 1 x Hi-PoE device port with 100Mbps per port (ePoE capable)
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 96W
• Extend up to 300m@100Mbps and 800m@10Mbps
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure

* Refer to datasheet for ePoE transmission performance tables

Suggested Products

Ethernet over Coax Converter Pair
VSEOCPAIRV2

5 Port Unmanaged Gigabit Ethernet Switch
VSETH-SW5G

4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4

Links and Downloads

VSPOE-SWE Series Product Datasheet (PDF) 0.79 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Switch Specification

Ports

4 ports

Speed

Fast 10/100

Device Ports

4 x 10/100 Base-T (PoE power supply ports)

Uplink Ports

1 x 1000 Base-X / 1 x 10/100/1000 Base-T

Switching Capacity

6.8Gbps

Packet Forwarding Rate

3.57Mpps

Exchange Mode

Store & forward

Power over Ethernet

PoE

Yes

PoE Protocol

PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Switch Power Load

Ports 1-3: ≤30W / Port 4: ≤60W (Total: ≤96W)

Management

Switch Management

Unmanaged

MAC Address Capacity

Virtual LAN

N/A

Network Time Protocol

N/A

Spanning Tree Protocol

N/A

Port Aggregation

N/A

Port Mirroring

N/A

LLDP

N/A

DHCP

N/A

Extend Mode

N/A

Flow Control

N/A

Security Features

N/A

System Maintenance

N/A

Quality of Service

N/A

Network Management

N/A

PoE Management

N/A

Environmental

Input Power

48 ~ 57VDC

Lightning Protection

Common Mode: 4kV / Differential Mode: 2kV

Mounting Options

DIN rail

Operating Environment

-30°C~65°C / RH10%~90%

Weight

0.48kg

Dimensions

150 x 100 x 30mm
