60W Power Over Ethernet Midspan

SKU VSPOE-MS

60W Power Over Ethernet Midspan

SKU VSPOE-MS

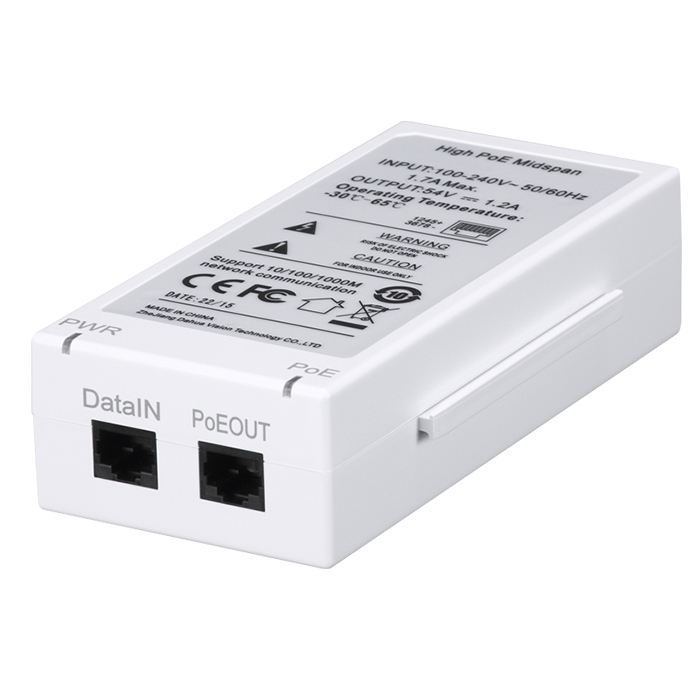

The VSPOE-MS 60W PoE Midspan is a high-power PoE injector that can be cascaded using VSPOE-EX to provide power to multiple IP surveillance PoE cameras. As the VSPOE-MS supports Hi-PoE, it can also individually power large PoE devices such as PTZ cameras.

• 10/100/1000M gigabit RJ45 (Base-T) input and PoE output
• 60W PoE supply for high power consumption cameras
• Cascade PoE to up to 3 IP cameras, using two VSPOE-EX, up to 300m
• Indicators for power status and PoE status
• Neat wall mount installation

Suggested Products

Power Over Ethernet Extender for Midspans
VSPOE-EX

30W Power Over Ethernet Injector
VSPOE-IN30

Links and Downloads

VSPOE Accessories Product Datasheet (PDF) 0.41 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Ethernet

Ethernet Ports

1 x 10/100/1000M Base-T / 1 x 10/100/1000M Base-T (PoE power supply)

PoE Protocol

PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

PoE Power Supply

≤60W

Indicators

Power indicator / PoE status indicator

Exchange Mode

Store & forward

Environmental

Lightning Protection

N/A

Operating Environment

-30° ~ 65°C / 10 ~ 90% RH (max.)

Mounting Options

Desktop / Wall Mount

Weight

0.39kg

Dimensions

150 x 70 x 39mm

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

70 mm

Height

150 mm

Depth

39 mm

Weight

0.39 kg
