Power Over Ethernet Extender for Midspans

Brand logo
SKU VSPOE-EX
Brand logo

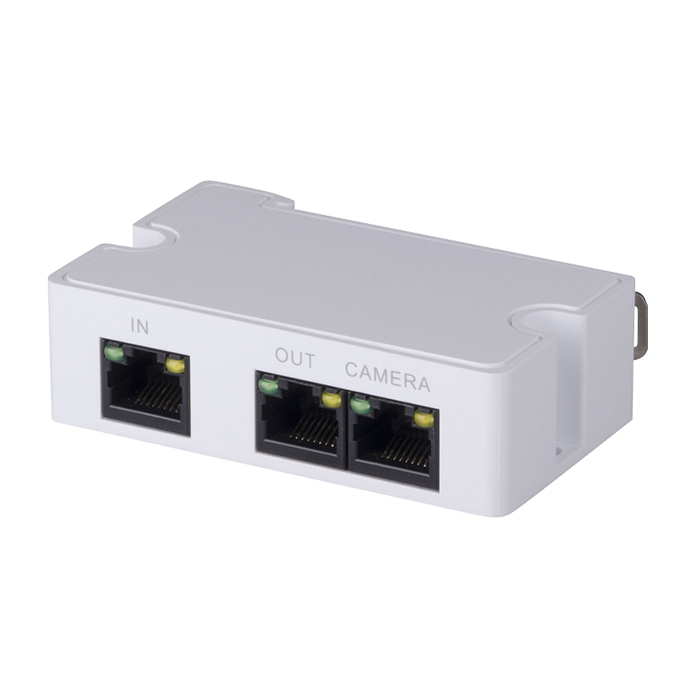

Power Over Ethernet Extender for Midspans

SKU VSPOE-EX

The VSPOE-EX is an extender for the VSPOE-MS 60W PoE Midspan. It enables the cascading of PoE to up to three IP cameras, up to a maximum distance of 300m from the network switch. Hi-PoE ports from capable PoE switches can be used in place of the VSPOE-MS midspan.

• 1 x 10/100 Base-T PoE receiver port
• 1 x 10/100 Base-T PoE supply port for following VSPOE-EX extender
• 1 x 10/100 Base-T PoE supply for IP camera / device
• Active extender provides PoE to up to 3 IP surveillance cameras*
• IEEE 802.3af/at standard for IP camera PoE power supply
• Supports Ethernet data exchange
• Junction box or DIN rail mounting

*Device power consumption must be ≤8W

Suggested Products

Suggested product image
60W Power Over Ethernet Midspan
VSPOE-MS

Links and Downloads

VSPOE Accessories Product Datasheet (PDF) 0.41 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Ethernet
Ethernet Ports
3 x 10/100 Base-T (receiver port / extender port / device port)
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at)
PoE Power Supply
Cascades from midspan
Indicators
Power indicator / PoE status indicator
Exchange Mode
N/A
Environmental
Lightning Protection
N/A
Operating Environment
-30° ~ 65°C / 10 ~ 90% RH (max.)
Mounting Options
Desktop / DIN Rail
Weight
0.06kg
Dimensions
79 x 52 x 23mm
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
52 mm
Height
79 mm
Depth
23 mm
Weight
0.57 kg
