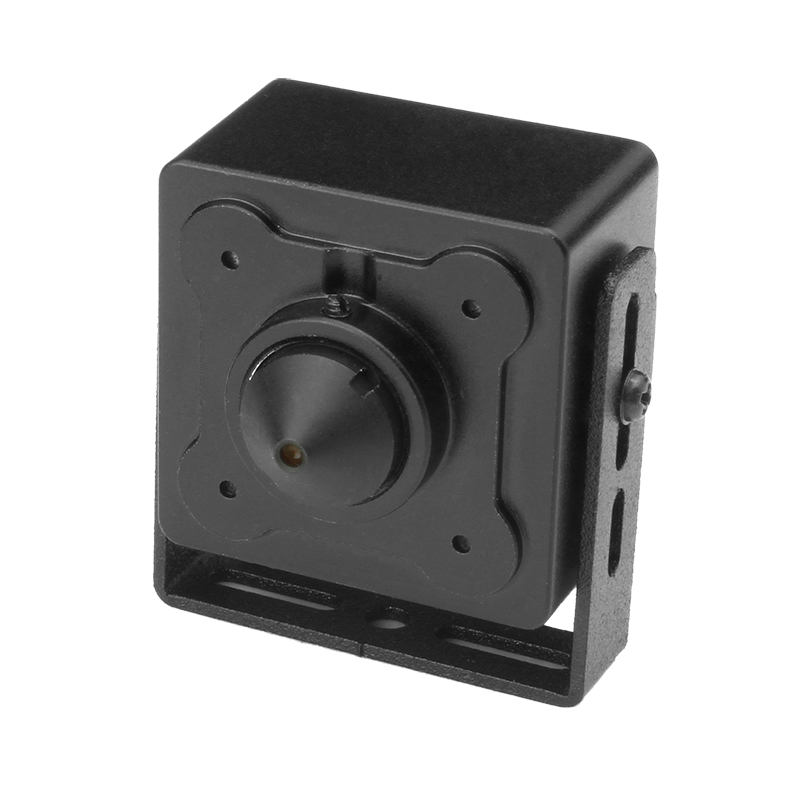

Mobile Series 1.0MP Fixed WDR Pinhole Camera

Brand logo
SKU VSPINHOLE3.6
Brand logo

Mobile Series 1.0MP Fixed WDR Pinhole Camera

SKU VSPINHOLE3.6

Stock may be limited. Please contact us for availability or for an alternative item.

These IP pinhole cameras are designed for discreet/covert surveillance applications and are ideal for use at controlled ingress points, in shelf surveillance, in vehicles, ATMs and more.

Camera features:
• Stream up to HD 720p at 25fps
• Fixed 3.6mm lens with Wide dynamic range
• Day/night auto (electronic), 3D digital noise reduction
• Discreet pinhole profile: Ø5mm depth
• Smart face detection and privacy masking

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/4” 1.0 Megapixel Progressive Scan CMOS
Max. Resolution
1.0 Megapixel
Effective Pixels
1280 (H) x 720 (V)
RAM / ROM
-
Ultra Low Light Colour
No
Min Illumination
0.01 Lux at F1.2 (Colour) / 0.001 Lux at F1.2 (B&W)
S/N Ratio
> 56dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
3.6mm F2.8 Fixed Lens
Field of View
77°
Focus
Manual
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
720p (1280 x 720) to D1 (704 x 576)
Frame Rate (Main)
720p (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 7 ~ 12Mbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
IVS
IVS
No
Intelligent Functions
Face Detection, Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
Streaming Method
-
Max. User Access
32 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
N/A
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC
Power Consumption
<2W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Mobile Series
Camera Type
Pinhole
Housing
Plastic / Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
30 x 30 x 22mm
Net Weight
0.05kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
60 mm
Height
60 mm
Depth
80 mm
Weight
0.12 kg
