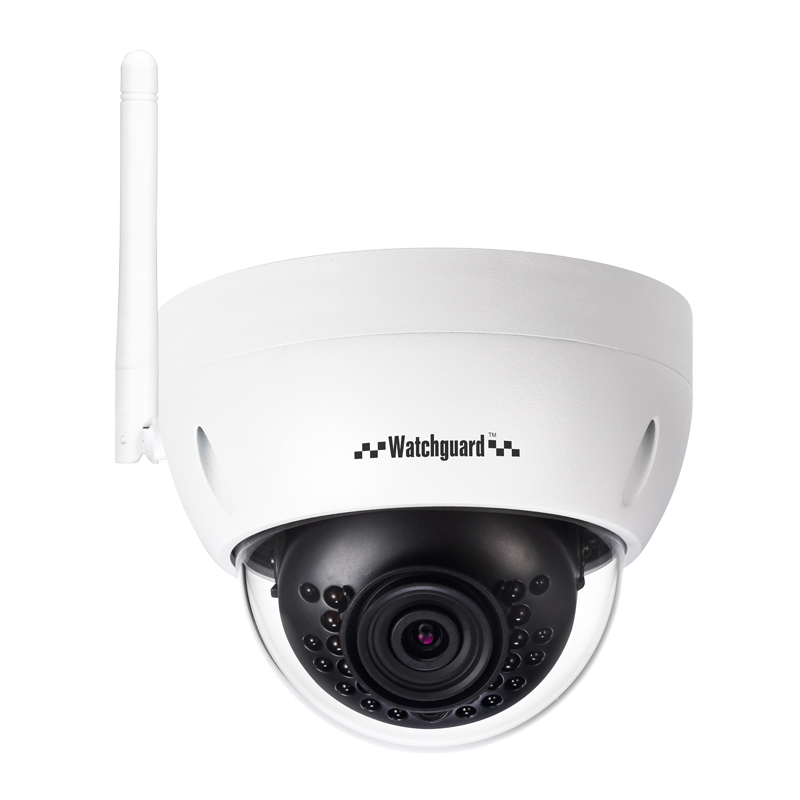

WiFi Series 3.0MP Wireless Infrared Fixed Mini Dome

Brand logo
SKU VSIPW-3VDIR
Brand logo

WiFi Series 3.0MP Wireless Infrared Fixed Mini Dome

SKU VSIPW-3VDIR

Stock may be limited. Please contact us for availability or for an alternative item.

Easily set up a surveillance system in your home or business with WiFi Series surveillance from Watchguard. With WiFi connection range up to 50m, vandal resistance and a weather-resistant housing, the VSIPW-3VDIR fixed dome camera can be easily installed wherever it's needed.

Camera features:
• Stream up to 3.0MP (2304 x 1536) at 20fps over WiFi
• 2.8mm fixed lens with 100° viewing angle
• Day/night (auto ICR) with 30m maximum infrared range
• 3D digital noise reduction and auto white balance
• WiFi connect cameras & NVR up to 50m (line of sight)
• IP67 weather resistant housing for external use
• IK10 rated vandal resistance
• ONVIF, PSIA and CGI compliance

* Power supply not included.

Suggested Products

Suggested product image
WiFi 4 Channel Dual Band Network Video Recorder (80Mbps)
NVR4WF
Suggested product image
WiFi Series 4 Channel 3.0MP Wireless IP Surveillance Kit
NVR4WFPACK
Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA136
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Watchguard WiFi Series Datasheet (PDF) 0.44 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3" 3.0MP Progressive Scan CMOS
Max. Resolution
3.0 Megapixel
Effective Pixels
2304 (H) x 1536 (V)
RAM / ROM
256MB / 16MB
Ultra Low Light Colour
No
Min Illumination
0.01 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
24 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed Lens
Field of View
Horizontal: 100°, Vertical: 55°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
58m
Observe (63px/m)
23m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
3.0MP (2304 x 1536) to QVGA (320 x 248)
Frame Rate (Main)
3.0MP (1 ~ 20fps) / 2.0MP (1 ~ 25fps)
Frame Rate (Sub)
VGA (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 32 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / DWDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC
Power Consumption
5.5W
Operating Conditions
-10° ~ +50° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
WiFi Series
Camera Type
Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~355 °; Tilt: 0° ~55°; Rotation: 0° ~355°
Tri-Axis Mounting
Yes
ePoE
No

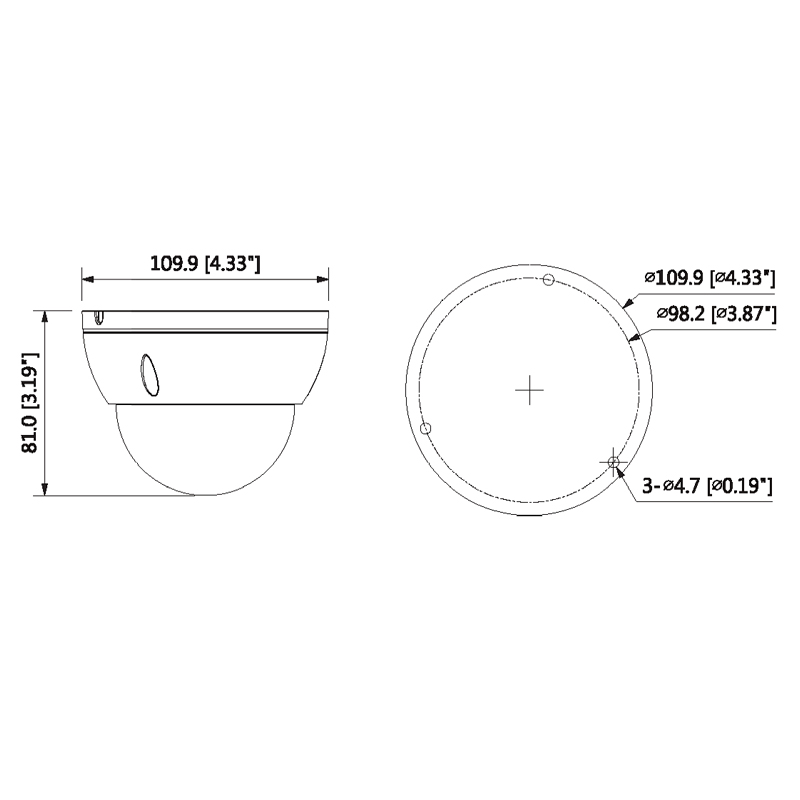

Dimensions
Ø110mm x 81mm
Net Weight
0.34kg
Other
WiFi
IEEE802.11b/g/n, 50m range (open field)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
156 mm
Height
156 mm
Depth
137 mm
Weight
0.54 kg
