Camera
Image Sensor
1/1.8’’ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.003 Lux / F1.2 (Color)
S/N Ratio
> 56dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 112°~47.5°, Vertical: 58°~26.6°
Focus
Auto Focus / 1.75m Min. Focus Distance
DORI
Detect (25px/m)
88m (wide) / 187m (tele)
Observe (63px/m)
35m (wide) / 79m (tele)
Recognise (125px/m)
18m (wide) / 37m (tele)
Identify (250px/m)
9m (wide) / 19m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 3Kbps ~ 20480Kbps / H.265: 3Kbps ~ 20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (8.0MP supports 90° & 270° at 1080p resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (3.5 mm JACK port) / 1 output (3.5 mm JACK port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Alarm Interface
3 channel in: 5mA 3V-5VDC / 2 channel out: 1,000 mA 30 VDC/500 mA 50 VDC
RS485
1 (Bit rate: 1200bps ~ 115200bps)
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF (Profile S/Profile G/Profile T) / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC (±25%) / 24VAC (±30%) / PoE (802.3af) / ePoE
Power Consumption
<15.9W (heater + infrared)
Operating Conditions
-40°C ~ +60°C, ≤95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type
Bullet
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
ePoE
Yes

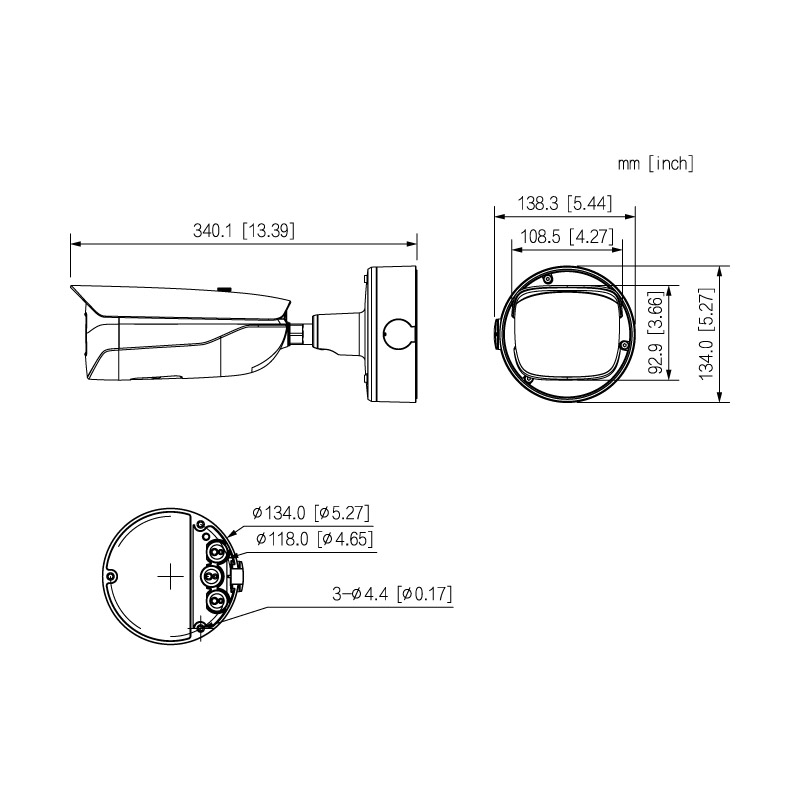

Dimensions
340mm x 138mm x 134mm
Net Weight
1.60kg
Other
Category
Network Surveillance
Warranty (Years)
4
