Camera
Image Sensor
1/1.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.003 Lux / F1.8 (Color)
S/N Ratio
> 56dB
Infrared System
3 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 115°~47°, Vertical: 62°~26°, Diagonal: 136°~56°
Focus
Auto Focus / 1.5m Min. Focus Distance
DORI
Detect (25px/m)
58m (wide) / 131m (tele)
Observe (63px/m)
23m (wide) / 52m (tele)
Recognise (125px/m)
12m (wide) / 26m (tele)
Identify (250px/m)
6m (wide) / 13m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 50fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface
2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12 VDC (±30%) / 24 VAC (±30%); PoE+ (802.3at) / ePoE
Power Consumption
<18W (Heater on)
Operating Conditions
-40°C ~ +60°C (Heater on), ≤95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type

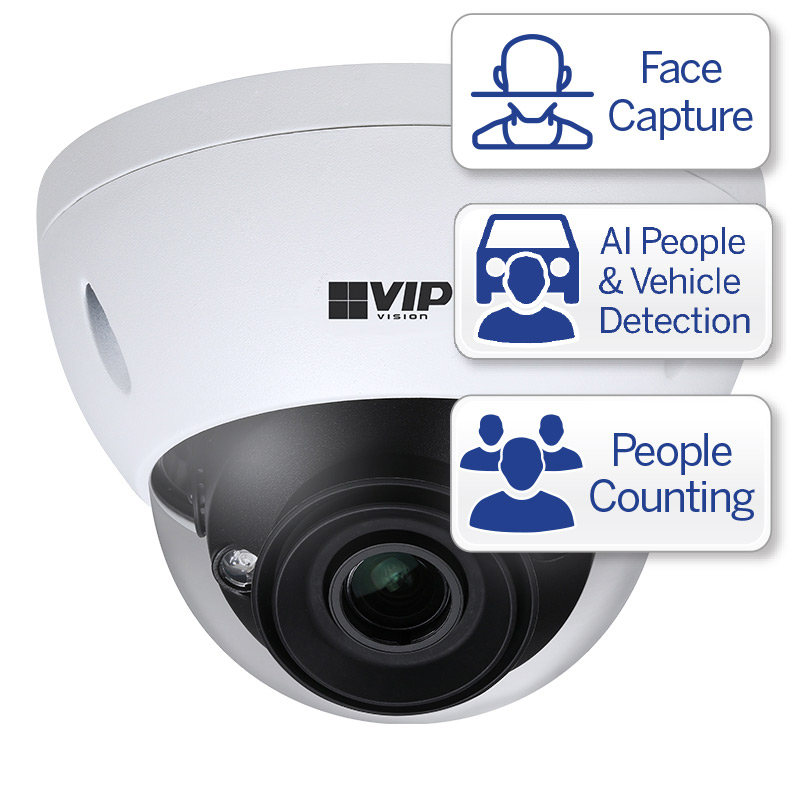

Dome
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°
ePoE
Yes
Dimensions
Ø159mm x 118mm
Net Weight
0.95kg
Other
Category
Network Surveillance
Warranty (Years)
4
