Camera
Image Sensor (Visible)
Max. Resolution
2.0 Megapixel
Effective pixel (Visible)
Min Illumination
0.005 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
Infrared System
1 x Infrared LED, 35m range, Auto/manual on/off control
Thermal
Image Sensor (Thermal)
Effective pixel (Thermal)
Range & Sensitivity
Image Settings
Brightness, Sharpness, Region of Interest, Auto Gain Control, Flat Field Correction, 3D Digital Noise Reduction
Colour Palettes
14 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Image Fusion Modes
Lens
Focal Length
Field of View
Horizontal: 110°~40°, Vertical: 74.8°~44.7°
Aperture
Close Focus Distance
Video
Resolution & Frame Rate (Main)
Resolution & Frame Rate (Sub)
Video Compression
H.264
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (180°)
IVS
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Thermal Functions
Fire Detection and Alarm, Image Fusion
Interface
Ethernet
RJ-45 (10/100Base-T)
Network Protocol
Max. User Access
10 Users / 20 Users
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC
Alarm Interface
2 Input / 1 Output
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE
Power Consumption
<12W
Operating Conditions
-30° ~ +55° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Thermal Bullet
Housing
Metal
Dimensions & Weight
Other
Bit Rate
H.264: 640 ~ 8192Kbps

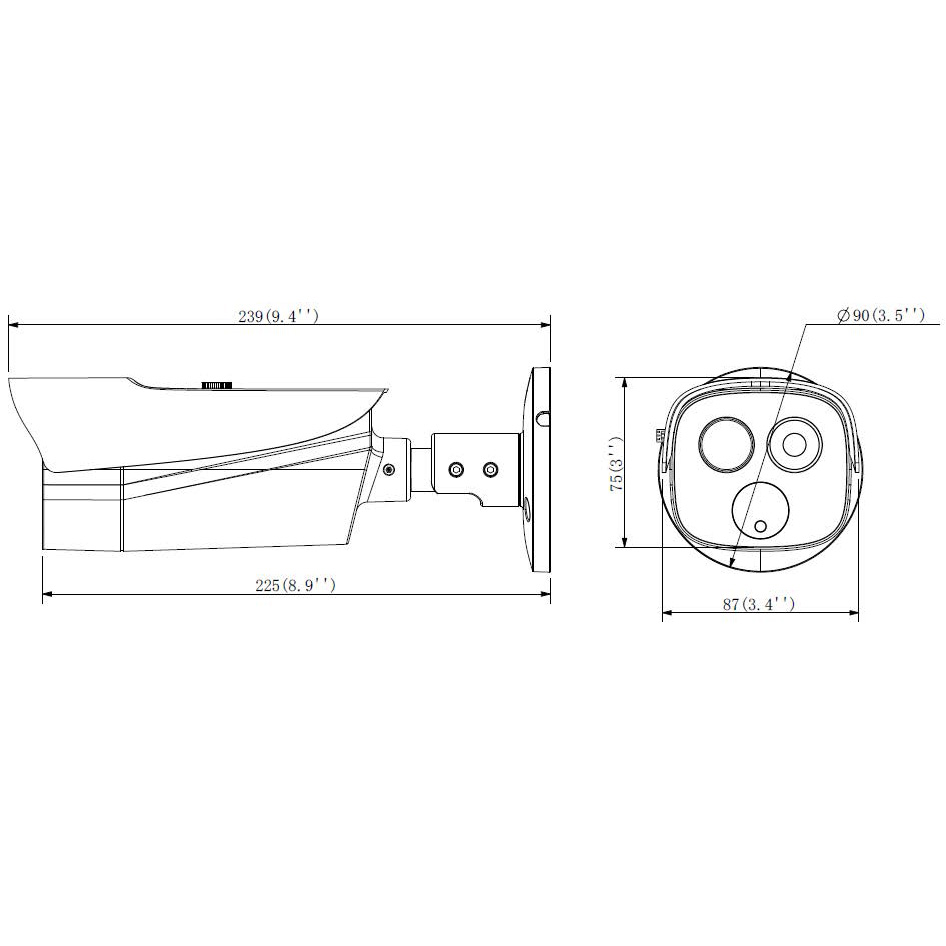

Dimensions
239mm x 91mm x 91mm (with bracket)
Effective Distance (Thermal Detection)
Person: Detect: 60m, Recognise: 20m, Identify: 10m Vehicle: Detect: 200m, Recognise: 60m, Identify: 30m
Effective Pixels
1944 (H) x 1092 (V)
Effective Pixels (Thermal)
160 (H) x 120 (V)
ePoE
No
Field of View (Thermal)
Horizontal: 56°, Vertical: 44°
Focus
Fixed
Focus (Thermal)
Athermalized, Focus-free
Frame Rate (Main)
Visible: 1080p to 720p (1 ~ 25fps) / Thermal: 1280 x 960 to 720p (1 ~ 25fps)
Frame Rate (Sub)
Visible: D1 to CIF (1 ~ 25fps) / Thermal: 640 x 480 to 320 x 240 (1 ~ 25fps)
Frame Rate (Third)
N/A
Image Sensor
1/2.8" 2.0MP Progressive Scan CMOS
Infrared
Yes
IVS
Yes
Lens / Iris
4mm F1.8 Fixed Lens
Lens / Iris (Thermal)
1mm Fixed Lens
Lens Type
Fixed
Net Weight
<1.00kg
Pan/Tilt/Rotation
N/A
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
RAM / ROM
512MB / 32MB
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
RS485
Support
RTMP Support
No
S/N Ratio
> 50dB
Sensitivity (NETD)
<50mK@f/1.1
Spectral Range
7~14um
Streaming Method
Unicast / Multicast
Thermal Sensor
Uncooled VOx Microbolometer
Tri-Axis Mounting
No
Ultra Low Light Colour
Yes
Video Interface
1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional)
Weather Resistance
Yes
Warranty (Years)
4
