Hybrid Thermal Series 4.0MP Fixed Turret

Brand logo
SKU VSIPTC-4DIRG
Brand logo

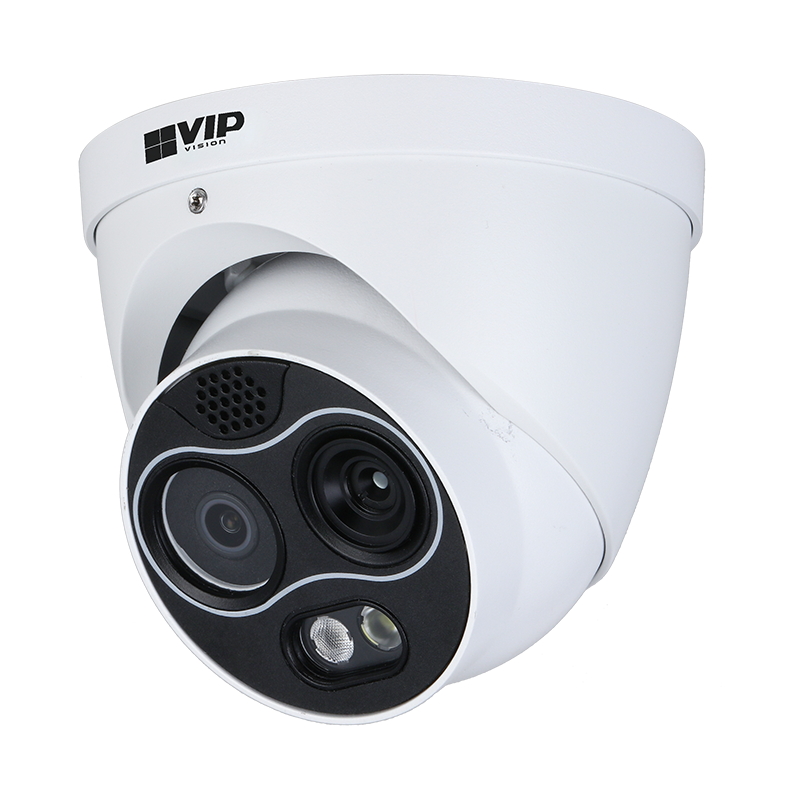

Hybrid Thermal Series 4.0MP Fixed Turret

SKU VSIPTC-4DIRG

By combining traditional image & thermal sensors, VIP Vision hybrid thermal cameras redefine your expectations of surveillance. Enhance images with Image Fusion thermal overlay, achieve excellent motion detection accuracy, setup thermal perimeters using IVS, and detect fires before they start, all in a compact weather rated chassis.

Camera Features:
• Combination thermal and visible light surveillance
• 4.0MP visible light sensor with choice of fixed lenses
• One IP address per channel for thermal & visible images (2 channels used)
• Set tripwire/intrusion rules; heat and fire detection
• VOx thermal sensor with 256 x 192px resolution
• Detects 8~14μm wavelength infrared spectral range
• White light & siren for thermal trigger event alerts
• Adjustable modes & alarm output for fire detection
• 30m IR illuminator, Alarm I/O, audio I/O, IP67 rated

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB206W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Hybrid Thermal Series 4.0MP Fixed Bullet
VSIPTC-4BIRG

Links and Downloads

Hybrid Thermal Series - Product Datasheet (PDF) 1.12 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor (Visible)
1/2.7’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective pixel (Visible)
2336 (H) x 1752 (V)
Min Illumination
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
Thermal
Image Sensor (Thermal)
Vanadium oxide uncooled focal plane detector
Effective pixel (Thermal)
256 (H) x 192 (V), 12μm Pixel Pitch
Range & Sensitivity
Range: 8~14um Sensitivity (NETD): <40mK (at f/1.0, 25 Hz, 300 K)
Image Settings
Digital Detail Enhancement, Auto Gain Control, 2D/3D Noise Reduction
Colour Palettes
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Image Fusion Modes
Warm Colour, Cool Colour, Ironred
Lens
Focal Length
Thermal: 3.5mm Visible: 4.0mm
Field of View
Thermal: 50° Visible: 71°
Aperture
Thermal: F1.0 Visible: F1.6
Close Focus Distance
Thermal: 0.5m Visible: 1.0m
Video
Resolution & Frame Rate (Main)
Thermal: 1280 x 960 to 256 x 192 at 1~25fps Visible: 4.0MP (2336 x 1752) ~ D1 (704 x 576) at 1~25fps
Resolution & Frame Rate (Sub)
Thermal: VGA (640 x 480) to 256 x 192 at 1~25fps Visible: 720p (1280 x 720) to CIF (352 x 288) at 1~25fps
Video Compression
H.265; H.264M; H.264H; H.264B; MJEPG
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / Digital WDR
White Balance
Auto / Natural / Street Lamp / Tracking / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
90° / 180° / 270°
IVS
Intelligent Functions
Tripwire Rules, Intrusion Rules, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Thermal Functions
Heat Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Mobile Phone Use Detection
Interface
Ethernet
RJ-45 (10/100 Base-T)
Network Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Max. User Access
10 Users / 20 Users
Audio Interface
1 Input, 1 Output (RCA) / Compression: G.711a, G.711Mu, AAC
Alarm Interface
1 Input / 1 Output
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / CGI
Environmental
Power Supply
12VDC / PoE
Power Consumption
<8W~14W (12VDC), 4.8~12.3W (PoE)
Operating Conditions
-30° ~ +50° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Hybrid Vision Thermal Series
Camera Type
Turret
Housing
Full Metal Enclosure
Dimensions & Weight
122mm x 122mm x 112mm, 0.85kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
135 mm
Depth
155 mm
Weight
1.00 kg
