Temperature Monitoring Access Control Station

Brand logo
SKU VSIPT-MACT
Brand logo

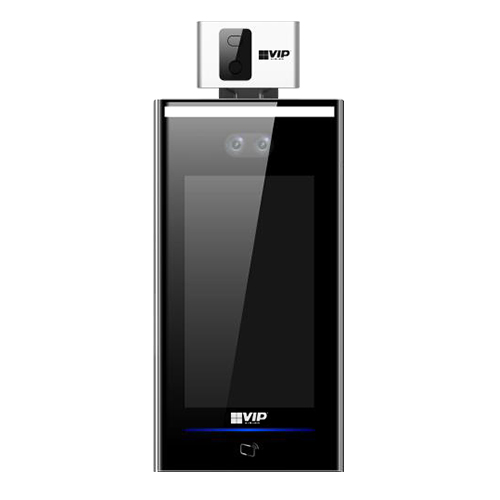

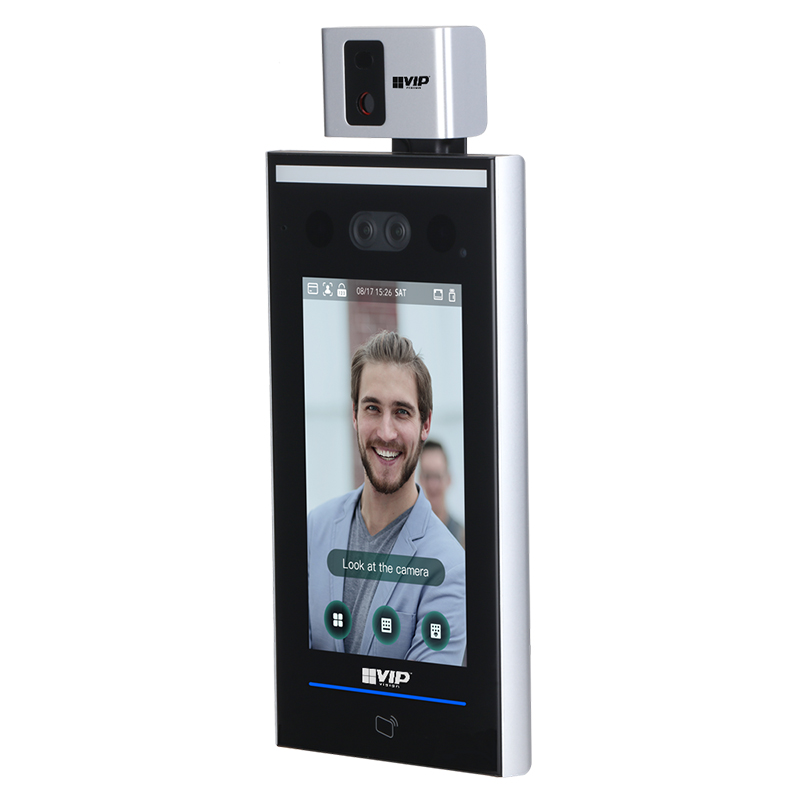

Temperature Monitoring Access Control Station

SKU VSIPT-MACT

Available by special order only. Please contact us for lead times.

Create fast, contactless temperature screening checkpoints with the VSIPT-MACT. The system can both accurately detect faces and read body temperatures, setting off alerts & alarms when high temperatures are detected, and features an easy-to-use touchscreen interface for admin use.

The VSIPT-MACT controls access in multiple ways, including conventional methods such as keycard and passcode unlock, as well as unlock via face match and temperature measurement. It can even be configured to check for face masks.

Product features:
• Standalone face recognition & BTM access module with WiFi
• Create fast, contactless temperature screening checkpoints
• Controls access from unauthorised persons & temp threshold
• BTM & access event alerts via email & device push notifications
• 7” LCD display and touchscreen with 600 x 1024 resolution
• Monitor face temperatures with ±0.5°C accuracy
• Face detection from a distance of 0.3m to 2.0m
• Voice responses to direct users and allow/deny entry
• 1/2.8” 2.0MP CMOS image sensor with WDR
• Admin unlock via face, card, password or a combination
• 2/2 alarm input/output, RS485, RS232, Wiegand
• Contactless scanning in a compact, slim body
• Wall mountable (desk & floor mounts sold separately)

Suggested Products

Suggested product image
Non-Contact IR Forehead Thermometer (3 Buttons)
TST-TEMP1
Suggested product image
Non-Contact IR Forehead Thermometer (1 Button)
TST-TEMP2
Suggested product image
Desktop Stand for VSIPT-MACT
VSIPT-MACT-D
Suggested product image

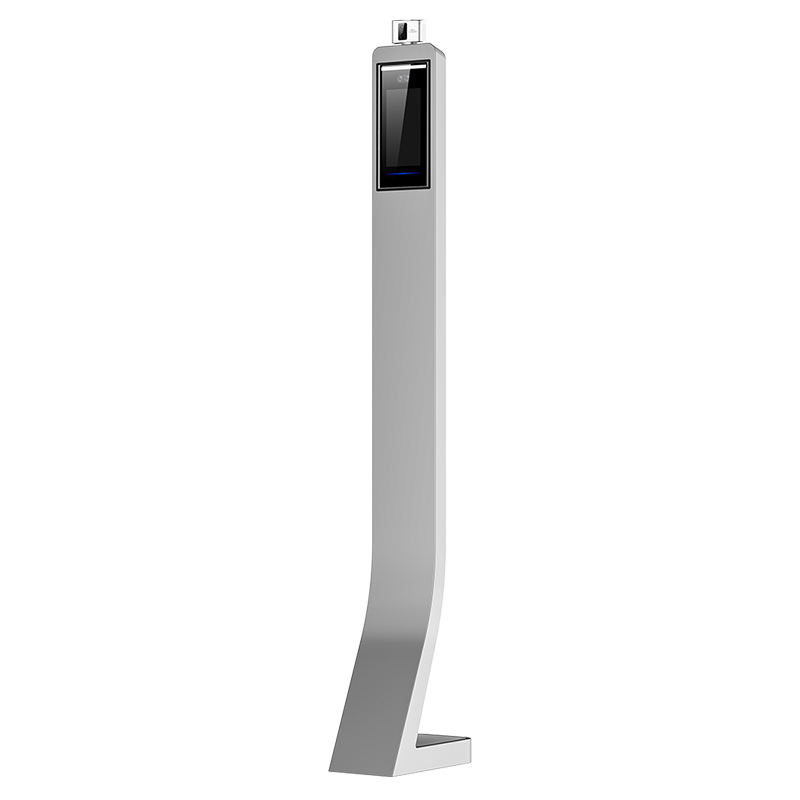

Floor Stand for VSIPT-MACT
VSIPT-MACT-S

Links and Downloads

VIP Vision Temperature Monitoring Access Control Station Datasheet (PDF) 0.45 MB
VIP Vision Temperature Monitoring Access Control Station Quick Start Guide (PDF) 1.04 MB
VIP Vision Temperature Monitoring Access Control Station User Manual V1.0.0 (PDF) 2.84 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

System
Main Processor
Embedded Processor
Network Protocol
IPv4, RTSP, RTP, TCP, UDP, P2P
OSDP Protocol
Yes
Interoperability
ONVIF & CGI
SDK and API
SDK Support
Basic
Display
7” Capacitive LCD Monitor
Resolution
600 (H) x 1024 (V)
Camera
1/2.8” 2.0MP CMOS WDR Dual Camera
WDR
120dB
Light Compensation
Auto White Light / Auto IR Light
Status Indicator
1 x Indicator Light - Red: Error; Green: Normal; Blue: Working
Voice Prompt
Yes
Housing Material
Aluminium Alloy / Tempered Glass / Polycarbonate
Function
Unlock Mode
Card / Remote / Password / Face Unlock / Any combination of these methods; Face unlock under temperature monitoring mode
Card Reading Type
IC Card
Period List
128
Holiday Period
128
First-Card Unlock
Yes
Remote Verification
Yes
Peripheral Card Reader
1 x RS485 / 1 x Wiegand
Multiple Authentication
Yes
Real-Time Surveillance
Yes
Remote Verification
Alarm Features
Anti-Passback / Tamper Switch / Duress / Door Sensor Timeout / Intrusion / Illegal Card Exceeding Threshold
Temperature Monitoring
IR Resolution
120 x 90
Temp. Monitoring Angle
50°
Temp. Monitoring Range
30°C to 50°C
Temp. Monitoring Time
0.2s
Temp. Monitoring Accuracy
±0.3°C
Temp. Monitoring Distance
0.3m ~ 0.8m
Temp. Monitoring Height
1.4m ~ 1.85m (at 0.5m distance)
Capacity
User Capacity
100,000
Face Image Capacity
100,000
Card Capacity
100,000
Password Capacity
100,000
Record Capacity
300,000
Interface
Auxiliary Inputs
1 x RS485 / 1 x RS232 / 1 x Wiegand (Input or Output)
USB
2 x USB2.0 port
Ethernet
1 x 1000M Ethernet Port / 1 x 10M/100M Ethernet Port
Alarm Input / Output
2 channels input / 2 channels output
Additional Input / Output
1 x Exit Button / 1 x Door Status Detection / 1 x Lock Control
Environment
Power Supply
12VDC 2A
Power Consumption
≤24W

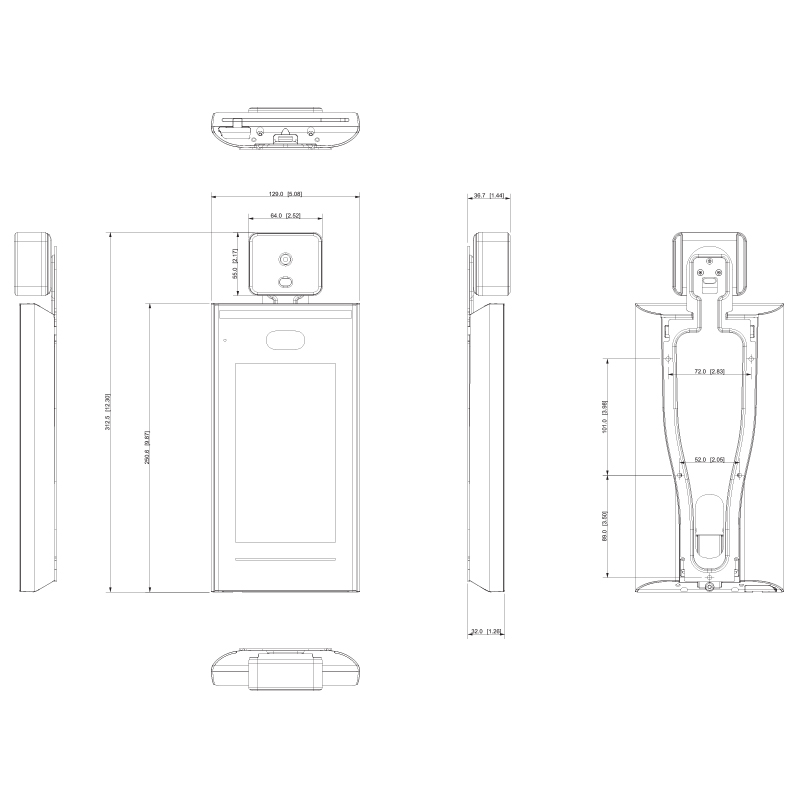

Product Dimensions
313mm x 129mm x 37mm
Working Temperature
Temperature monitoring disabled: -10°C to +55°C, Temperature monitoring enabled: 15°C to +32°C
Working Humidity
0~90%RH (Non-condensing)
Weight
2.2kg
Installation
Wall mount
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
370 mm
Height
310 mm
Depth
120 mm
Weight
2.50 kg
