Professional Solar Series 4.0MP 4G Bullet Camera

Brand logo
SKU VSIPSLR-A41
Brand logo

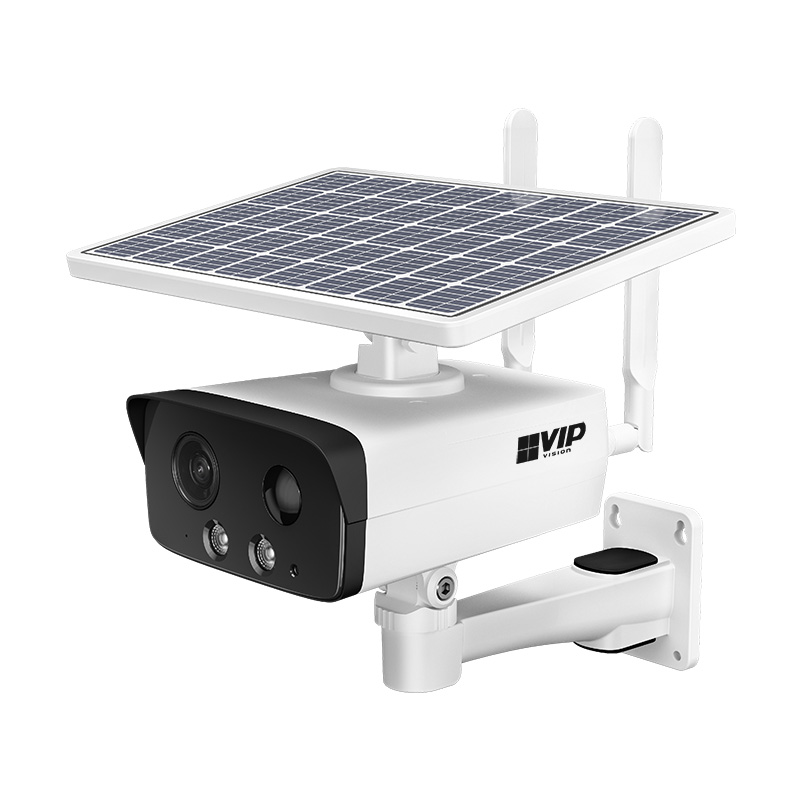

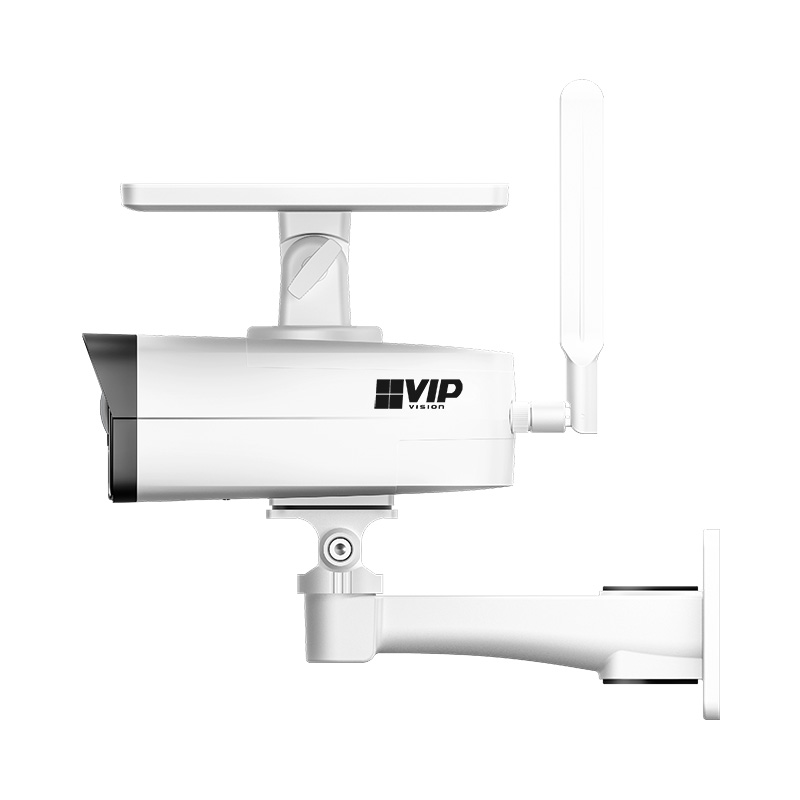

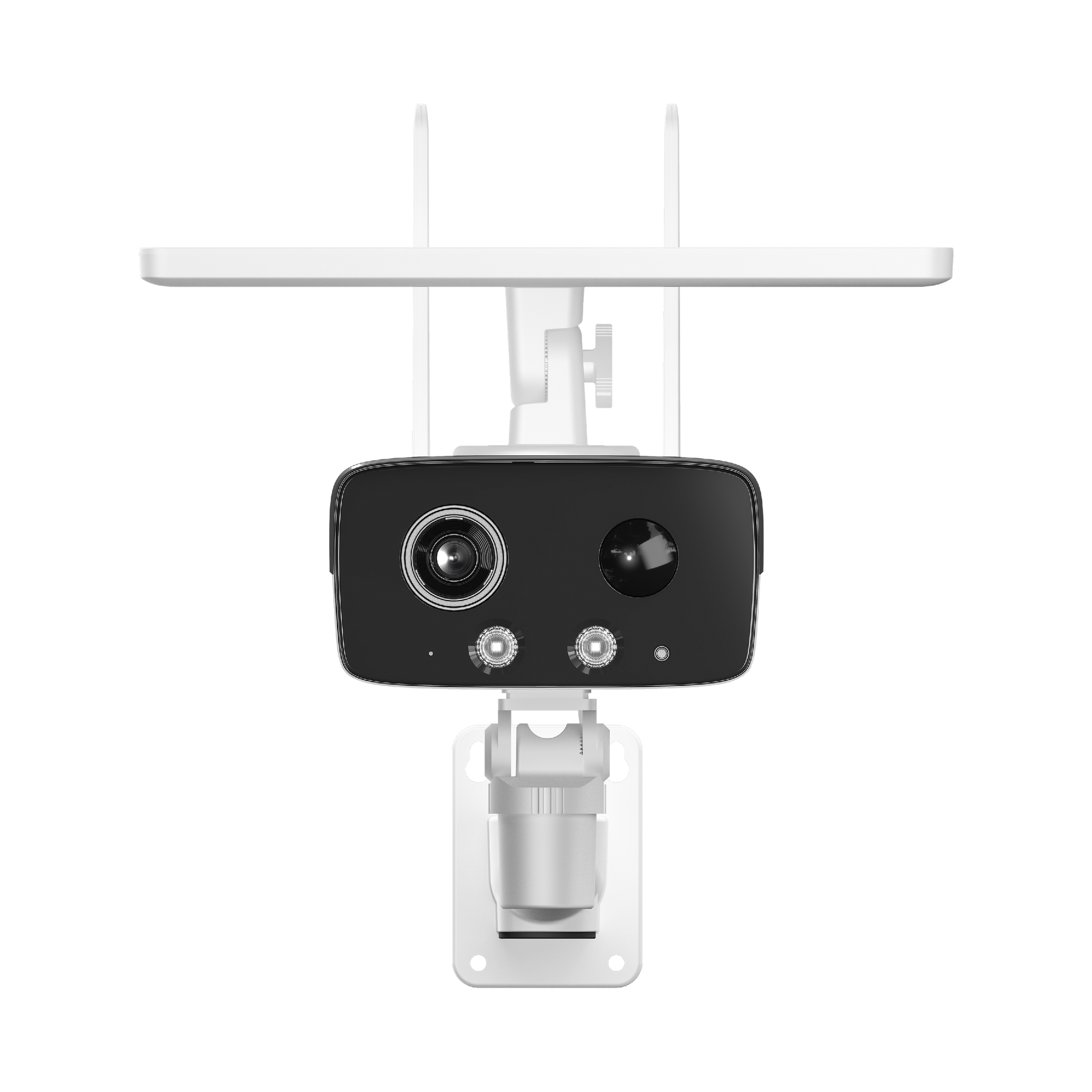

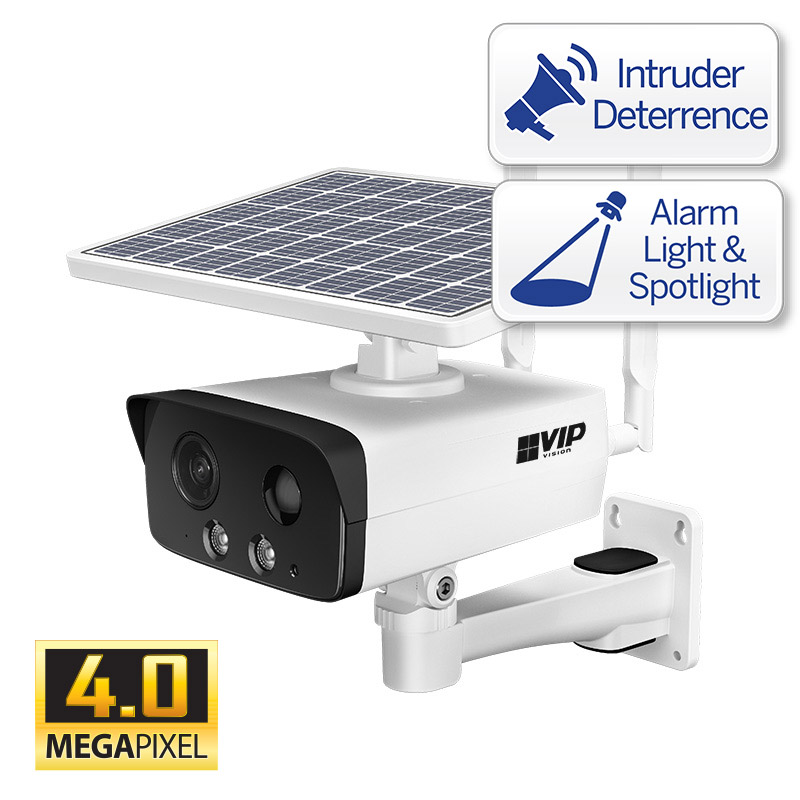

Professional Solar Series 4.0MP 4G Bullet Camera

SKU VSIPSLR-A41

Stock may be limited. Please contact us for availability or for an alternative item.

The A41 Solar Series bullet camera delivers high resolution surveillance anywhere in an instant with built-in 4G modem for internet connectivity and integrated solar panel & lithium battery for power. Connect from anywhere to keep an eye on your property and deter trespassers with built-in siren and LED security lighting on motion detection.

The A41 can be configured for always-on mode for up to a full day of recording, or on standby mode for up to 10 days of motion-triggered recording. Detection is handled by a PIR motion sensor and smart in-camera motion detection that helps to filter false alarms and extend battery life.

Camera Features:
• Streams 4.0MP at 25fps; wide angle 2.8mm lens (102°)
• Up to 50m infrared LED illumination in total darkness
• 30m warm white LED and siren for active deterrence
• Built-in microphone and loudspeaker for 2-way talk
• Built-in 8GB memory for event storage
• Increase capacity - add up to 256GB microSD
• IP67 weather rated plastic and metal construction
• PIR motion detection up to 10m (at 2.5m mount height)
• 4G support: B1/3/5/7/8/20/28 (FDD), B38/40/41 (TDD)
• 5W monocrystalline integrated solar panel
• 10Ah 4.2V lithium-ion battery; general mode 1 day uptime, standby mode 10 days (based on 1hr/day)
• Camera also features micro USB input; 5VDC

*Micro SIM is required

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Housing Bracket for ANPR Bullet Cameras
VSBKTA162

Links and Downloads

VIP Vision Professional Solar Bullet Datasheet (PDF) 0.89 MB
VSIPSLR-A41 - Quick Start Manual 2023-01-12 (PDF) 1.94 MB
VSIPSLR-A41 - Quick Start Manual 2023-06 (PDF) 0.69 MB
VSIPSLR-A41 Help Article
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3" CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
256MB / 128MB
Ultra Low Light Colour
No
Min Illumination
0.01 Lux / F1.6 (Color,30IRE), 0.001 Lux / F1.6 (B/W,30IRE), 0 lux (Illuminator on)
S/N Ratio
>56 dB
Infrared
Yes
Infrared System
1 (IR LED); 1 (Warm light)
Lens
Lens Type
Fixed
Lens / Iris
2.8 mm F1.6 Fixed Focal Lens
Field of View
102°
Focus
0.9 m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
63.6 m
Observe (63px/m)
25.4 m
Recognise (125px/m)
12.7 m
Identify (250px/m)
6.4 m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4MP (1–25fps)
Frame Rate (Sub)
D1 (1–25fps)
Frame Rate (Third)
N/A
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG
Bit Rate
H.264/H.265: 32 ~ 20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D NR
Picture Control
Flip 180°
IVS
IVS
N/A
Intelligent Functions
N/A
Network
4G Frequency
B1/3/5/7/8/20/28 (FDD), B38/40/41 (TDD)
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5mA 3-5 VDC / 1 channel out: 300mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P
Environmental
Power Supply
MicroUSB/5 VDC
Power Consumption
<4W
Operating Conditions
0 °C to 50 °C
Ingress Protection
IP67
Weather Resistance
IP67
Vandal Resistance
N/A
Series
Solar
Camera Type
Bullet
Housing
Metal, Plastic
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
N/A
ePoE
Yes

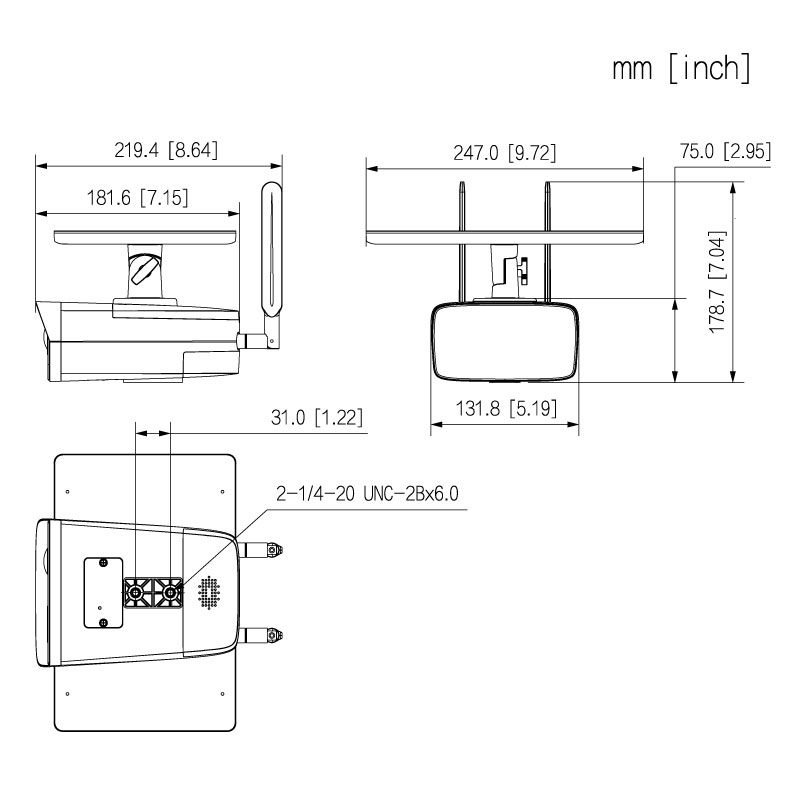

Dimensions
247 mm x 219 mm x 179 mm
Net Weight
1.25 kg
Other
RTMP Support
Yes
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
260 mm
Height
210 mm
Depth
320 mm
Weight
2.50 kg
