VIP Vision IP PTZ Control Keyboard

Brand logo
SKU VSIPPTZKBV2
Brand logo

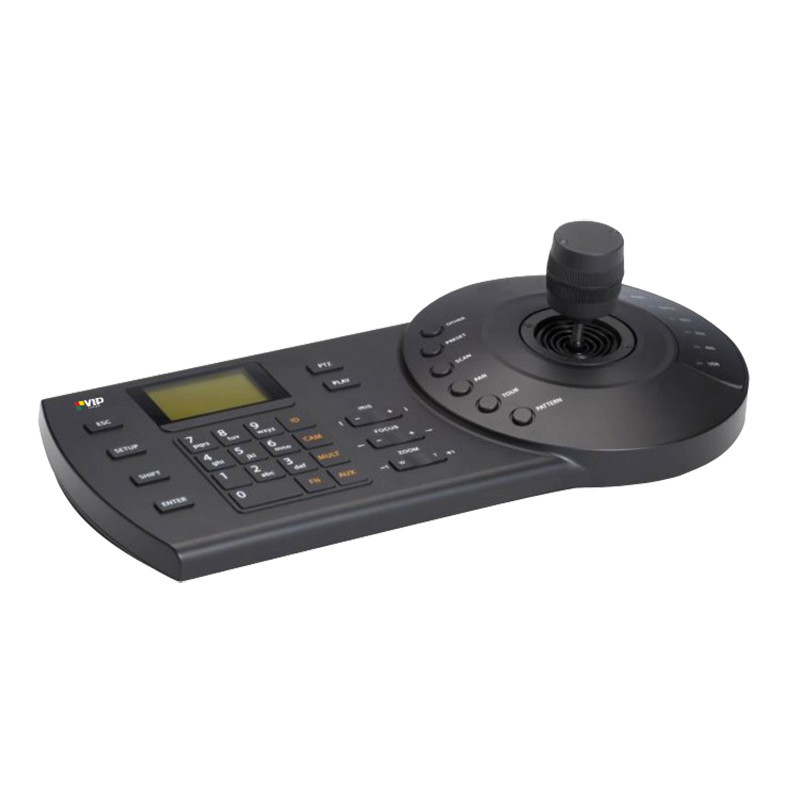

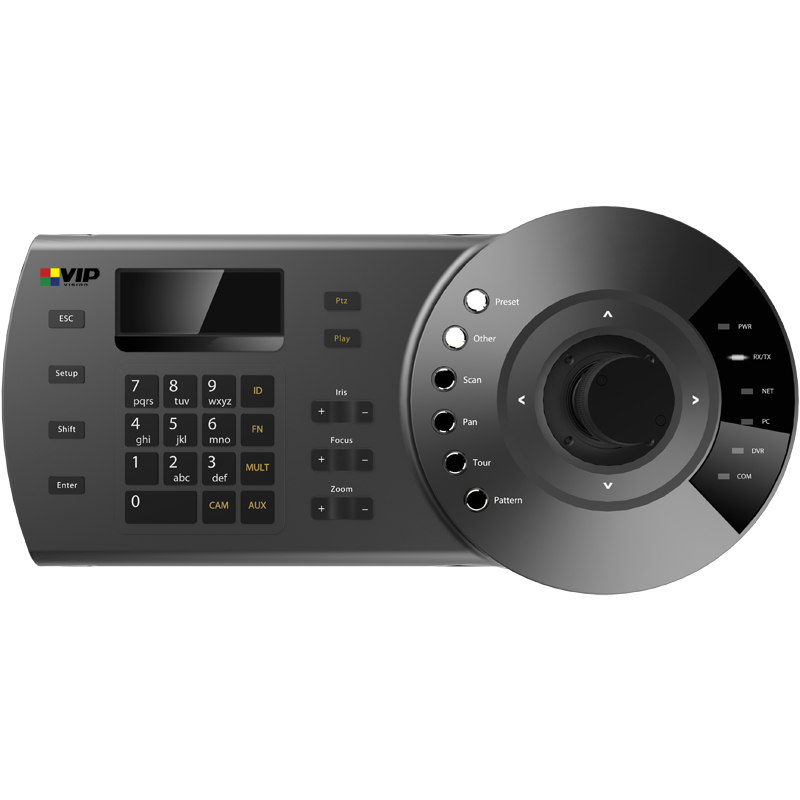

VIP Vision IP PTZ Control Keyboard

SKU VSIPPTZKBV2

The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network.

Joystick Features:
• Control a variety of PTZ cameras and DVRs with this PTZ keyboard
• Features RS485, RS422, USB, RS232 & RJ45 connections
• Three dimensional joystick control of PTZ functions
• Preset position, auto scan, auto pan, auto tour & pattern control
• 3.2’’ on-keyboard LCD with user menu and operation/procedure tips
• Interfaces to PTZ domes and DVR/NVR via:
• Network mode: Control via RJ45 using IP address and ports
• Direct mode: Control via RS232/RS485 using protocols below:
• DVR: DH2 / Camera protocols: DH-SD, PELCO-D/-P/-D1/-P1
• Can connect and control via VIP Vision SmartPSS through USB

Links and Downloads

VSIPPTZKBV2 Brochure (PDF) 0.31 MB
Keyboard Quick Start Guide V1.0.0.pdf 0.83 MB
VSIPPTZKBV2_Firmware_20200106 6.70 MB
How to Setup & Use the PTZ Keyboard
CE/ RCM Certificate
RoHS Certificate

Specifications

Atmosphere Pressure
86kpa~106kpa
Dimension
330x160x37.5mm
Direct Interface
RS232/RS485
Joystick
3-axis, vector-solving, with twisting, return to-center head
LCD Display
75.2mm x 33.85mm
Network Interface
RJ45
Power Consumption
5W
Power Supply
input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
Weight
2.5KG
Working Humidity
10%~90%
Working Temperature
-10℃~+55℃
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
425 mm
Height
170 mm
Depth
220 mm
Weight
1.50 kg
