VIP Vision IP PTZ Control Keyboard

Brand logo
SKU VSIPPTZKB3
Brand logo

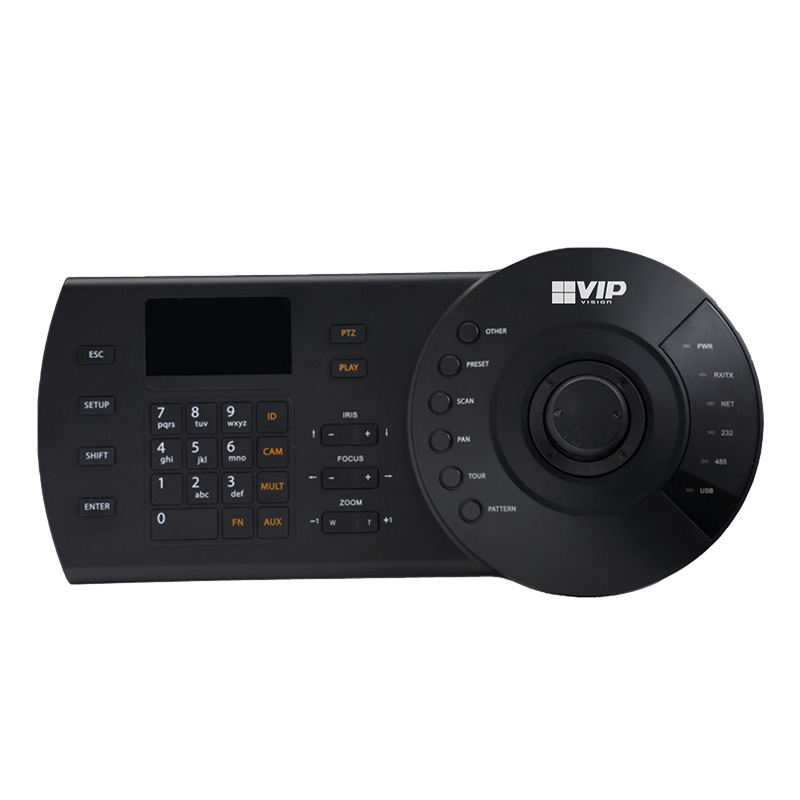

VIP Vision IP PTZ Control Keyboard

SKU VSIPPTZKB3

The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network.

Features:
• Control a variety of PTZ cameras and DVRs with this PTZ keyboard
• Features RS485, RS422 (reserved), USB, RS232 & RJ45 connections
• Three dimensional joystick control of PTZ functions
• Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
• 75.2mm×33.85mm on-keyboard LCD with user menu and operation/procedure tips
• Interfaces to PTZ domes and DVR/NVR via:
• Network mode: Control via RJ45 using IP Address/Port/Protocol
• Direct mode: Control via 1 RS232/2 RS485 using protocols below:
• DVR: DH2 / Camera protocols: DH-SD1/PELCO-D/PELCO-P
• Connect to SmartPSS or DSS platform via USB

Links and Downloads

How to Setup & Use the PTZ Keyboard
CE/ RCM Certificate
RoHS Certificate

Specifications

Atmosphere Pressure
86kpa~106kpa

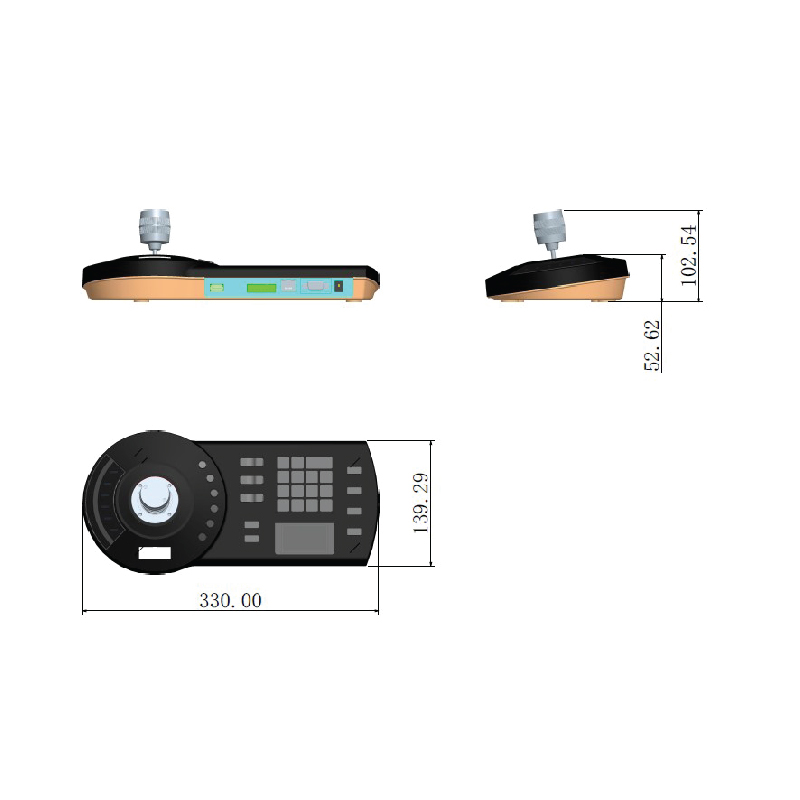

Dimension (W×D×H)
330mm×139mm×53mm (not including joystick) 330mm×139mm×103mm (including joystick)
Direct Interface
1 RS232/2 RS485
Joystick
3-axis, vector-solving, with twisting, return to-center head
LCD Display
75.2mm x 33.85mm
Network Interface
RJ45
Power Consumption
5W
Power Supply
input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
Weight
1.3kg (Including package)
Working Humidity
10%~90%
Working Temperature
-10℃~+55℃
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
330 mm
Height
53 mm
Depth
139 mm
Weight
1.30 kg
