Camera
Image Sensor
1/2.8" 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) x 1440 (V)
RAM / ROM
512 MB / 256 MB
Min Illumination
0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
S/N Ratio
≥55 dB
Infrared System
3 x Infrared LED, 20m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
Field of View
Horizontal: 32°~97°, Vertical: 18°~51°, Diagonal: 36°~116° (4x Optical Zoom)
Focus
Auto/Manual / 0.2m Min. Focus Distance
DORI
Detect (25px/m)
240m
Observe (63px/m)
95m
Recognise (125px/m)
48m
Identify (250px/m)
24m
PTZ
Pan / Tilt Range
Pan: 0 ~ 355° / Tilt: 5 ~ 90°
PTZ Speed
Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
Modes / Presets
Up to 300 presets / 8 tour
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
4.0MP (2560 x 1440) to CIF(352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Bit Rate
H.264: 96 ~ 14,848Kbps / H.265: 38 ~ 8,960Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
Support
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
N/A
Metadata
N/A
People Counting
Supports Line Crossing/Region/Queuing People Counting, Report Generation
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16×
Privacy Masking
N/A
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 512GB) / FTP / P2P
Interoperability
ONVIF / CGI / SDK
Environmental
Power Supply
12VDC / 1.5A / PoE (802.3af)
Power Consumption
<4W / <13W (IR on)
Operating Conditions
-30° ~ +60° C / ≤95% RH
Ingress Protection
IP66
Vandal Resistance
IK08
Series
Specialist AI Series

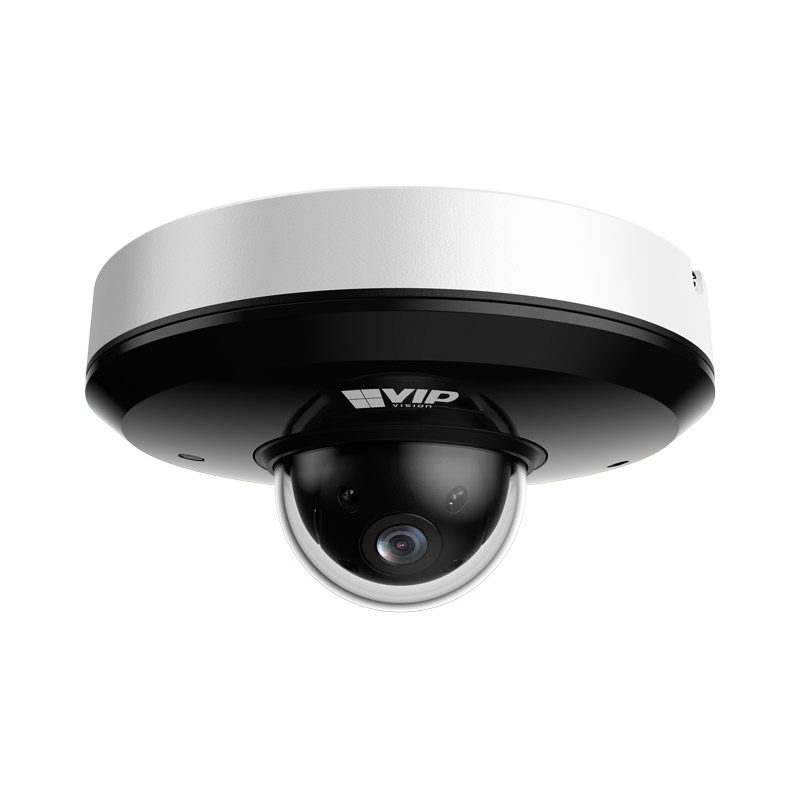

Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
N/A
ePoE
No

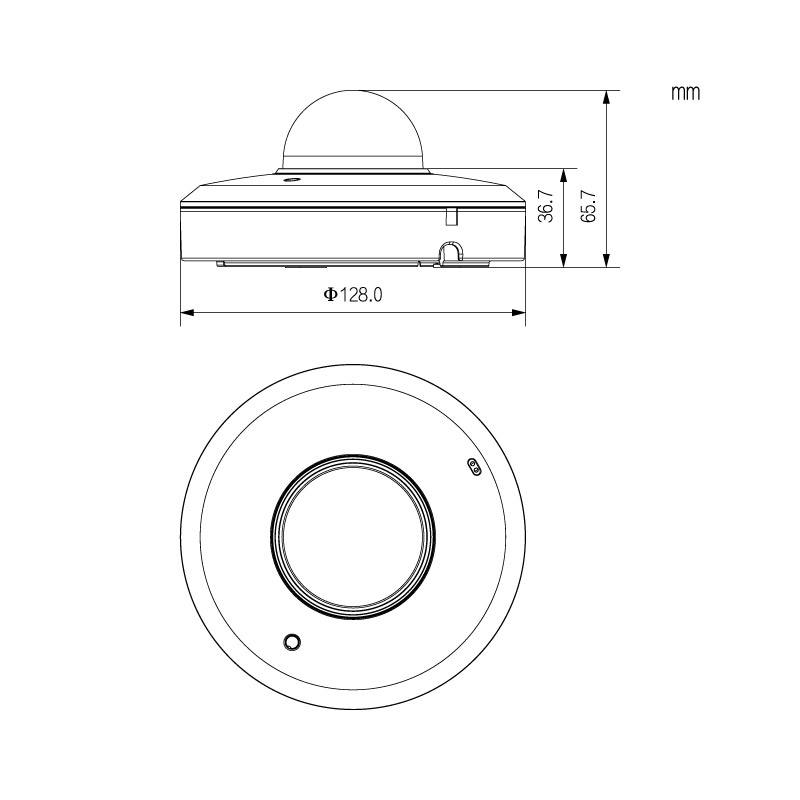

Dimensions
Ø128mm x 66mm
Net Weight
0.5kg
Other
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Warranty (Years)
4
