Camera
Image Sensor
1/2.8" CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) × 1440 (V)
RAM / ROM
128 MB / 512 MB
Min Illumination
Color: 0.005lux@F1.6 B/W: 0.0005lux@F1.6 0Lux (IR on)
S/N Ratio
≥ 55 dB
Infrared System
2 x Infrared LED, 100m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5 mm – 125 mm F1.6 ~ F3.6 Motorised Lens with Auto Iris
Field of View
51.9° ~ 3.0° (25x Optical Zoom)
Focus
0.5 m–5 m Min. Focus Distance
DORI
Detect (25px/m)
2500 m
Observe (63px/m)
987.5 m
Recognise (125px/m)
500 m
Identify (250px/m)
250 m
PTZ
Pan / Tilt Range
Pan: 51.9°–3.0° Tilt: 39.7°–2.2°
PTZ Speed
Pan: 240°/s; Tilt: 160°/s | Manual Pan: 0.1°/s–240°/s Manual Tilt: 0.1°/s–160°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main)
4MP (1–25fps)
Frame Rate (Sub)
D1 (1-25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
Bit Rate
H.264: 2816 kbps–13056 kbps H.265: 1024 kbps–7936 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
2D / 3D NR
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
Support
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
Support
Metadata
N/A
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
N/A
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75Ω)
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / CGI / SDK / P2P
Environmental
Power Supply
12 VDC (±30%); PoE (802.3af); ePoE
Power Consumption
<21.5W
Operating Conditions
-40°C ~ +65°C
Ingress Protection
IP66
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
PTZ Dome
Housing
Plastic
Pan/Tilt/Rotation
Pan: 51.9° ~ 3.0° Tilt: 39.7° ~ 2.2° Rotation: 63.1°–3.7°
ePoE
No

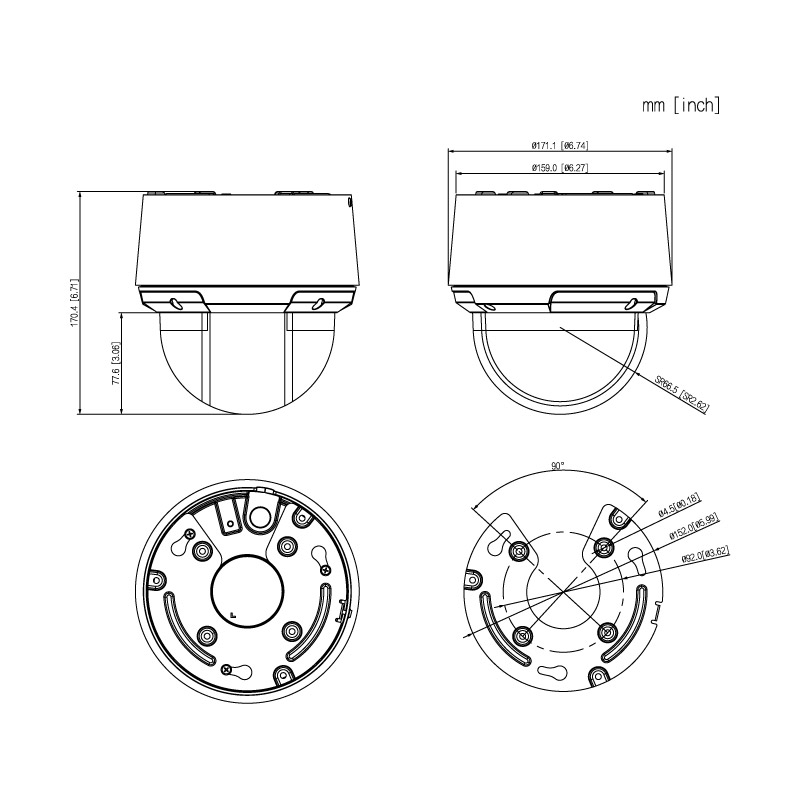

Dimensions
Ø168.0 mm × 171.1 mm
Net Weight
2.5 kg
Warranty (Years)
4
