Camera
Image Sensor
1/2.8” 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.005 Lux/F1.6 (Color), 0.0005 Lux/ F1.6 (B/W), 0 Lux (IR on)
S/N Ratio
>55dB
Infrared System
4 x Infrared LED, 150m range, Zoom Prio / Manual / OFF on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.8 ~ 120mm F1.6 ~ F3.5 Motorised Lens with Auto Iris
Field of View
Horizontal: 61~2.8°, Vertical: 33.2°~1.7° (25x Optical Zoom)
Focus
Auto/Semi-Auto/Manual / 0.1 ~ 1.5m Min. Focus Distance
DORI
Detect (25px/m)
1655m
Observe (63px/m)
657m
Recognise (125px/m)
331m
Identify (250px/m)
166m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360° / Tilt: -90 ~ 90°
PTZ Speed
Preset: Pan: 160°/s; Tilt: 110°/s Manual: Pan: 0.1° ~ 120°/s; Tilt: 0.1° ~ 75°/s
Modes / Presets
Up to 300 presets / 8 tour
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1/CIF (1 ~ 50fps)
Frame Rate (Third)
1080p to CIF (1 ~ 50fps)
Video Compression
H.265; H.264; H.264B; H.264H; MJPEG (Sub Stream); H.265+; H.264+
Bit Rate
H.264 / H.265: 3 ~ 20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light / Street Lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
N/A
Face Capture
N/A

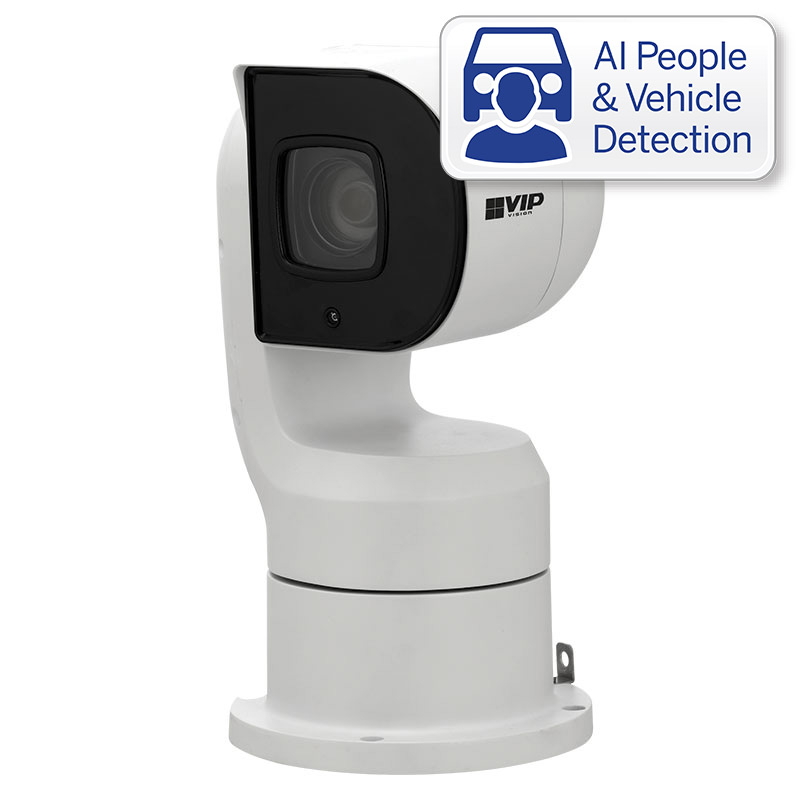

Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
Support
Metadata
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Event Triggers
Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas, and up to 8 areas in the same view
Image Stabilisation
Support
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Supports Two-way Audio / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Alarm Interface
2 Inputs / 1 Output / Alarm Linkage: Capture; Preset; Tour; Pattern; SD Card Record; Trigger Digital Output; Client Electronic Map; Send Email
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / FTP / NAS
Interoperability
ONVIF (Profile S/ Profile G) / CGI
Environmental
Power Supply
12VDC 4A ± 10%/ PoE (802.3af)
Power Consumption
<14W / <23W (IR on, PTZ operations)
Operating Conditions
-40° ~ +70° C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Specialist AI Series
Camera Type
PTZ Positioning
Housing
Metal
Pan/Tilt/Rotation
N/A
ePoE
No

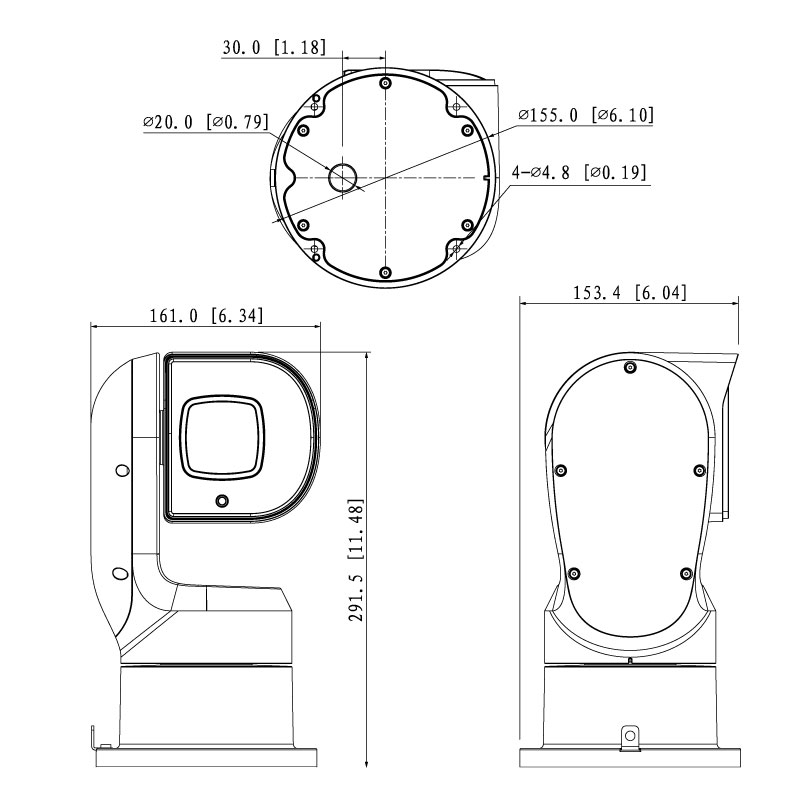

Dimensions
161mm x 135mm x 292mm
Net Weight
3.6kg
Other
Surge Protection
TVS 8000V Lightning Proof / Surge Protection / Voltage Transient Protection
Warranty (Years)
4
