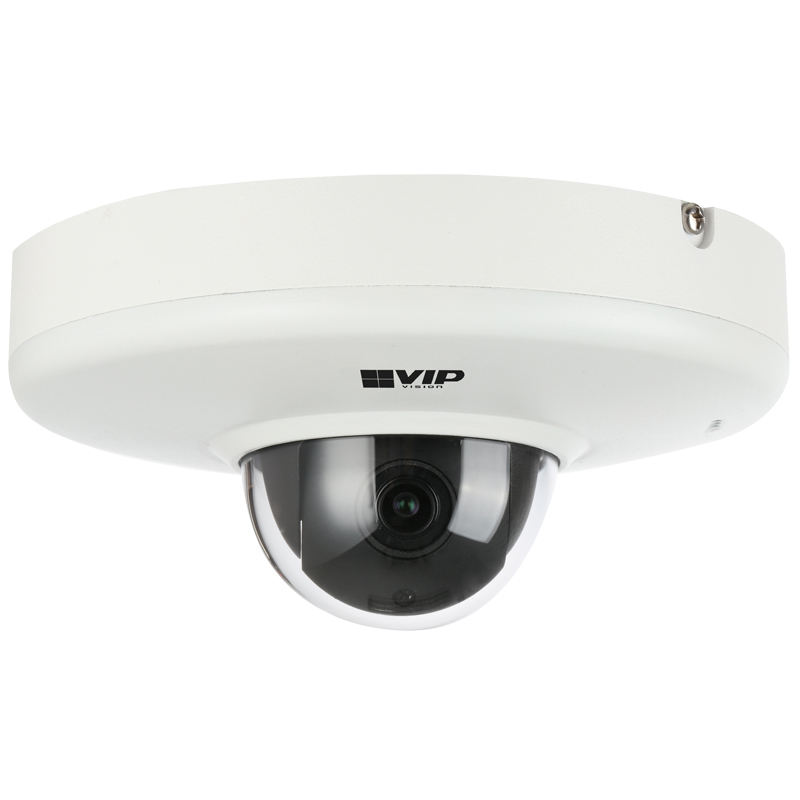

Professional Series 2.0MP Ultra Low Light Pan-Tilt Dome

Brand logo
SKU VSIPPT-2VDIR
Brand logo

Professional Series 2.0MP Ultra Low Light Pan-Tilt Dome

SKU VSIPPT-2VDIR

Stock may be limited. Please contact us for availability or for an alternative item.

The VSIPPT-2VDIR offers superb surveillance control in a compact package. It features an array of intelligent video functions and captures colour footage in low light, delivering evidence in the most challenging surveillance conditions.

Camera features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• 2.8mm fixed lens for wide 103° viewing angle
• Low light colour performance at as low as 0.005lx
• 355° panning with 20 ~ 90° tilt adjust
• Configure pan-tilt patterns, tours, auto-panning
• Day/night (auto ICR) with True WDR (120dB)
• MicroSD slot for recording at the edge up to 256GB
• IP66/IK08 weather/vandal resistant metal housing
• Audio interface input/output

Includes:
1 x 2.0MP Pan-Tilt IP Dome
1 x Mounting screw kit
1 x Metal mounting plate

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA107
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA120
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

VIP Vision PT Pant Tilt Dome Datasheet (PDF) 0.71 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8" 2.0MP Starvis™ CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
512M/128M
Ultra Low Light Colour
Yes
Min Illumination
Colour: 0.005 Lux (F1.6), 0.0005 Lux/F1.6 (B/W)
S/N Ratio
> 50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.6 Fixed Lens
Field of View
Horizontal: 103°, Vertical: 55°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
41m
Observe (63px/m)
17m
Recognise (125px/m)
8m
Identify (250px/m)
4m
PTZ
Pan / Tilt Range
Pan: 0° ~ 355°; Tilt: 20° ~ 90°
PTZ Speed
Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
Modes / Presets
Up to 300 presets, 8 Tour, Auto Pan
Start-up Action
Auto-restore to previous PTZ/lens status
Auto Tracking
N/A
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 448K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180°
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Privacy Masking (24 zones), Defog
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input (Built-in microphone), 1 Output / Compression: G.711a/G.711mu/G.726/AAC
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<6W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP66
Weather Resistance
Yes
Vandal Resistance
IK08
Series
Professional Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
Yes
ePoE
No

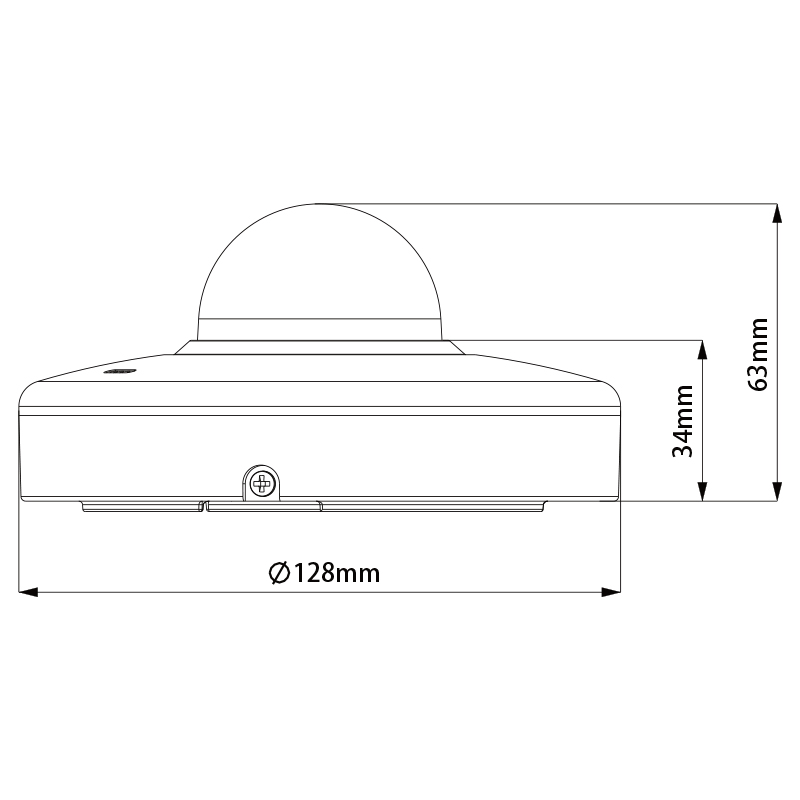

Dimensions
Ø128mm x 63mm
Net Weight
0.49kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
156 mm
Height
137 mm
Depth
156 mm
Weight
0.66 kg
