VSIPP-8DIRMG: Professional Series 8.0MP Motorised Turret

Specifications

Camera

Image Sensor

1/2.7’’ 8.0MP Progressive Scan CMOS

Max. Resolution

8.0 Megapixel

Effective Pixels

3840 (H) x 2160(V)

RAM / ROM

256MB / 128MB

Ultra Low Light Colour

Yes

Min Illumination

0.008 Lux/F1.5 (Color), 0lx/F1.5 (IR on)

S/N Ratio

N/A

Infrared

Yes

Infrared System

2 x Infrared LED, 40m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris

Field of View

Horizontal: 113°~31°, Vertical: 58°~17°

Focus

Auto Focus / 0.8m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

85m (wide) / 280m (tele)

Observe (63px/m)

34m (wide) / 112m (tele)

Recognise (125px/m)

17m (wide) / 56m (tele)

Identify (250px/m)

8m (wide) / 28m (tele)

Video

Resolution

8.0MP (3840 x 2160) to CIF (352 x 288)

Frame Rate (Main)

8.0MP (1 ~ 15fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

N/A

Video Compression

H.265+ / H.265 /H.264+ / H.264 / H.264B / MJPEG

Bit Rate

H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Yes

Intelligent Functions

Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Streaming Method

Unicast / Multicast

Max. User Access

20 Users

RTMP Support

Interface

Video Interface

N/A

Audio Interface

N/A

Alarm Interface

N/A

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP / SFTP

Interoperability

ONVIF / P2P / CGI / Milestone / Genetec

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

<7.6W

Operating Conditions

-30°C ~ +60°C / ≤95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

N/A

Series

Professional Series

Camera Type

Turret

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

Tri-Axis Mounting

N/A

ePoE

N/A

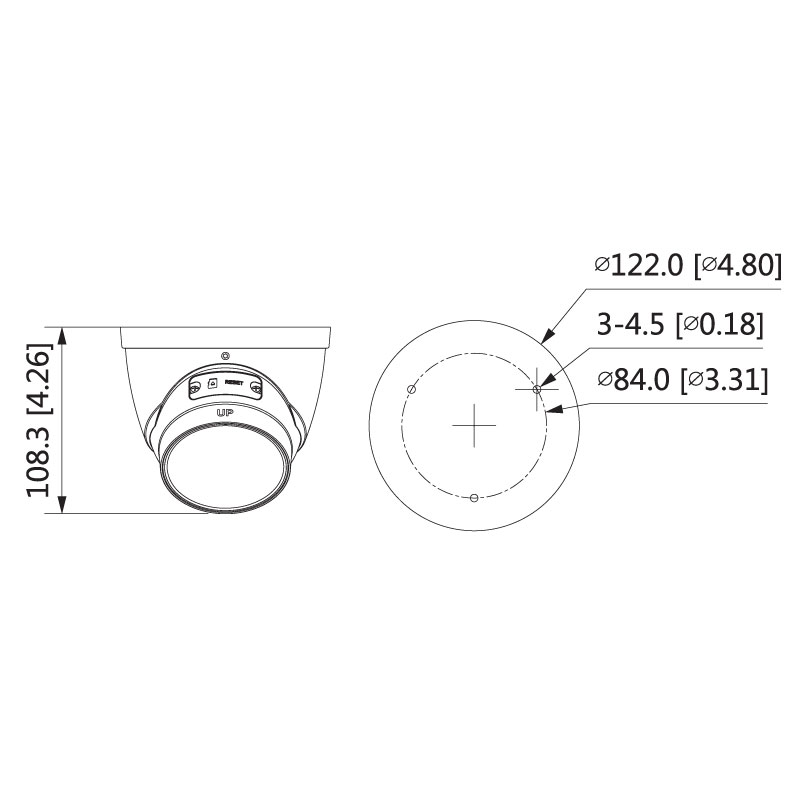

Dimensions

Ø122mm x 108.3mm

Net Weight

0.69kg
