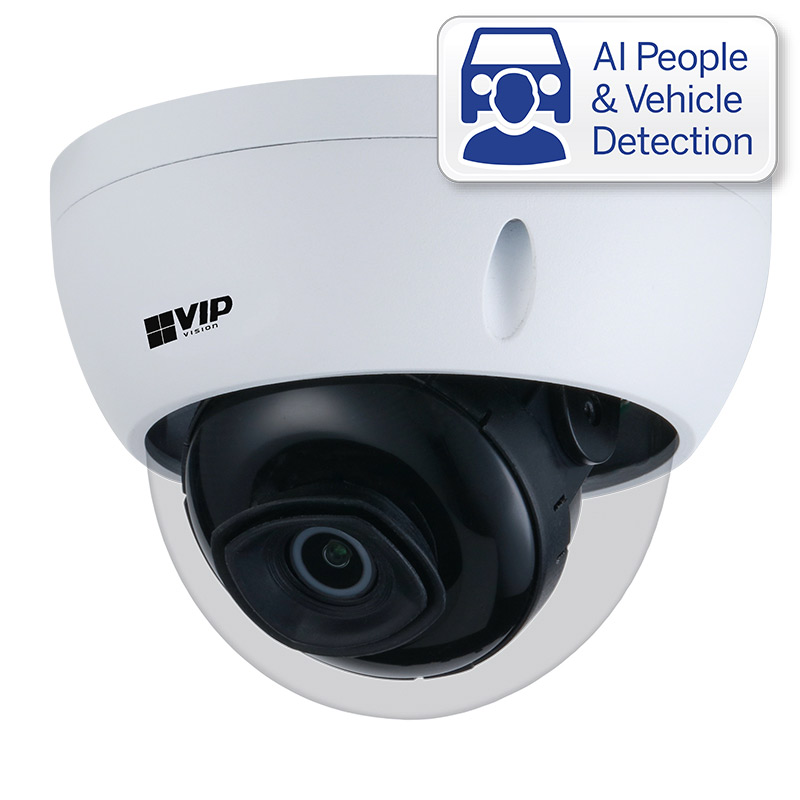

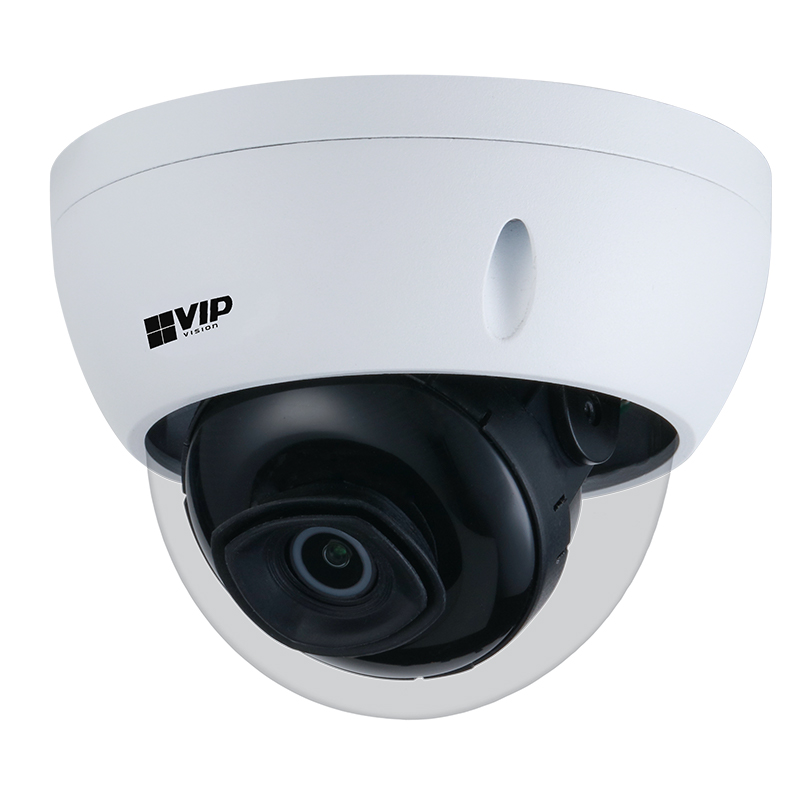

Professional AI Series 8.0MP Fixed Vandal Dome

Brand logo
SKU VSIPP-8DIRD-I
Brand logo

Professional AI Series 8.0MP Fixed Vandal Dome

SKU VSIPP-8DIRD-I

Stock may be limited. Please contact us for availability or for an alternative item.

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
• Stream up to 8.0MP (3840 x 2160) at 20fps
• 2.8mm fixed lens with 108° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 50m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA136
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

VIP Vision Professional AI Fixed Dome Datasheet (PDF) 0.92 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8’’ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.007 Lux/F1.4 (Color)
S/N Ratio
> 56dB
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Lens with Fixed Iris
Field of View
Horizontal: 108°, Vertical: 58°
Focus
Fixed / 1.4m Min. Focus
DORI
Detect (25px/m)
85m
Observe (63px/m)
34m
Recognise (125px/m)
17m
Identify (250px/m)
9m
Video
Resolution
8.0MP (3840x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 20fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7W
Operating Conditions
-30°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°
ePoE
No

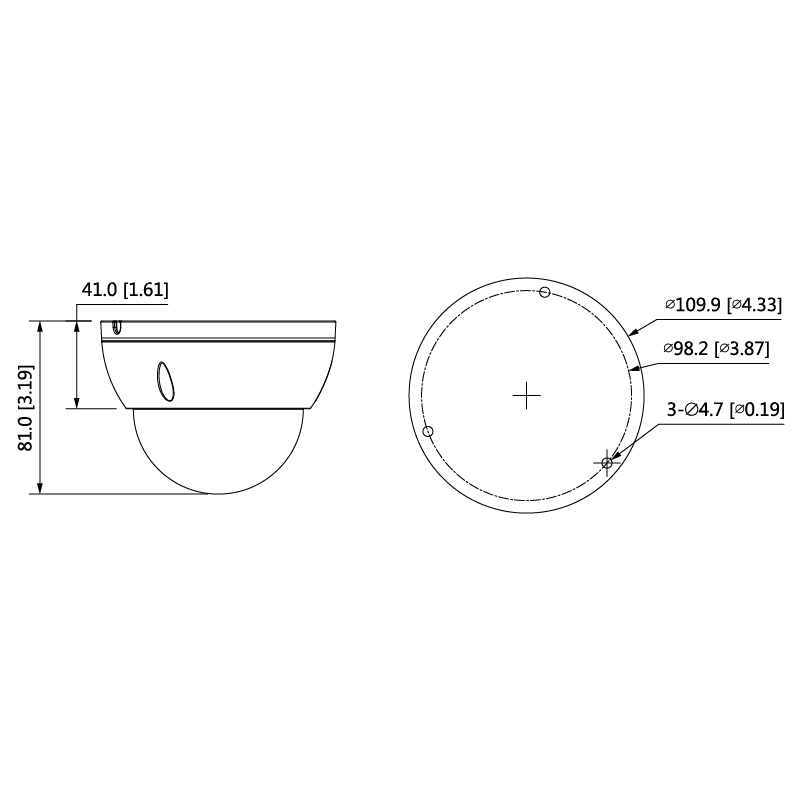

Dimensions
Ø110mm x 81mm
Net Weight
0.38kg
Other
Category
Network Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
138 mm
Height
115 mm
Depth
137 mm
Weight
0.51 kg
