Camera
Image Sensor
1/1.8" CMOS
Max. Resolution
3840 (H) x 2160 (V)
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1256MB / 2G
Min Illumination
0.0008 lux@F1.0 (Colour, 30 IRE) / 0.0004 lux@F1.0 (B/W, 30IRE) / 0 lux (illumination on)
S/N Ratio
> 56dB
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
White Light LED
1 x Spotlight (Warm White), 30m range, Auto/manual on/off control
Active Deterrence
1 x Red & Blue Strobe, 1 x Loudspeaker Siren
Lens
Lens Type
Fixed Lens
Lens / Iris
2.8mm F1.0 Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 109°, Vertical: 59°, Diagonal: 131°
Focus
Auto Focus / 3.2m Min. Focus Distance
DORI
Detect (25px/m)
82m
Observe (63px/m)
33m
Recognise (125px/m)
16m
Identify (250px/m)
8m
Video
Resolution
8.0MPMP (3840 x 2160) to CIF (352 x 288 / 352 x 240)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.264 / H.264+ / H.264 / MJPEG
Bit Rate
H.264: 3 ~ 16384kbps / H.265: 3 ~ 16384kbps
Bit Rate Control
Constant Bit Rate (CBR) / Variable Bit Rate (VBR) / Average Bit Rate (ABR)
Day/Night
Auto (ICR) / Colour / B/W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
SSA
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
Perimeter Protection
People and vehicle detection using tripwire or intrusion rules
Face Detection
-
Face Attributes
-
People Counting
-
Heat Map
-
Event Trigger
Motion Detection, Perimeter Protection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Search people or vehicle detection events (Perimeter Protection), Search by attributes, such as clothing/vehicle colour and vehicle type (AI Quick Pick)
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users (Total bandwidth: 64MB)
Interface
Video Interface
-
Audio Interface
Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface
1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
RS485
-
Edge Storage
MicroSD Card (up to 512GB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S, Profile G, Profile T) / P2P / CGI
Environmental
Power Supply
12VDC / PoE (820.3af)
Power Consumption
< 8.6 W (12 VDC); < 10.1 W (PoE)
Operating Conditions
-40°C to +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
-
Series
-
Camera Type
-
Housing
Metal
Pan/Tilt/Rotation
Pan: 0°-360° / Tilt: 0°-78° / Rotation: 0°-360°
ePoE
-

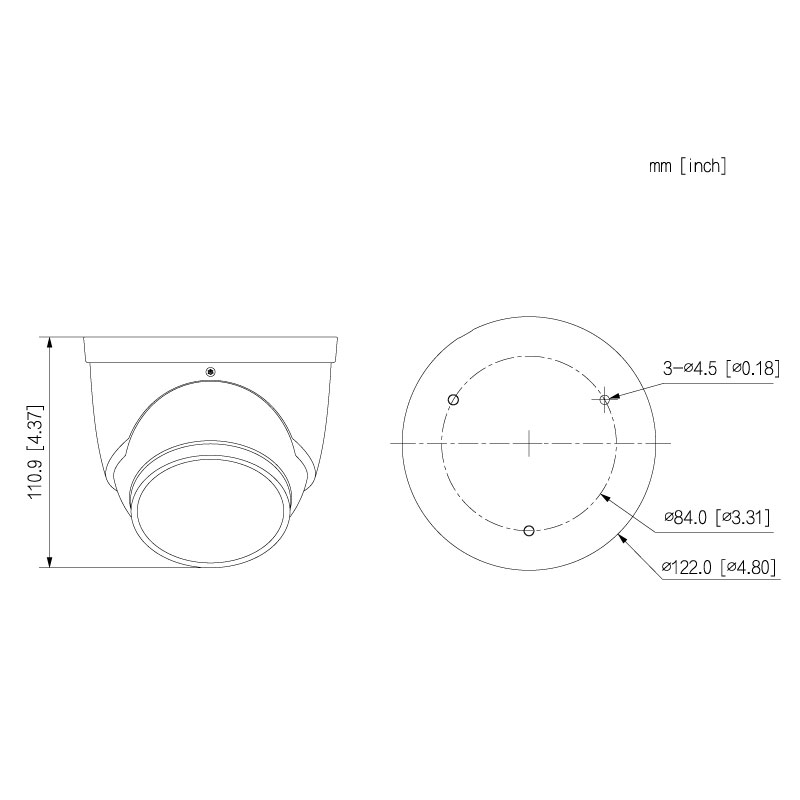

Dimensions
Φ122 mm x 116 mm
Net Weight
0.8kg
Warranty (Years)
4
